ENGLISH INSTRUCTION FOR USE
6 VANTAGE 14 - 9099878000
2
10
6
3
26
27
22
13
21
24
25
23
18
8
7
9
4
5
1
28
11
1715
12
14
16
20
19
P100447

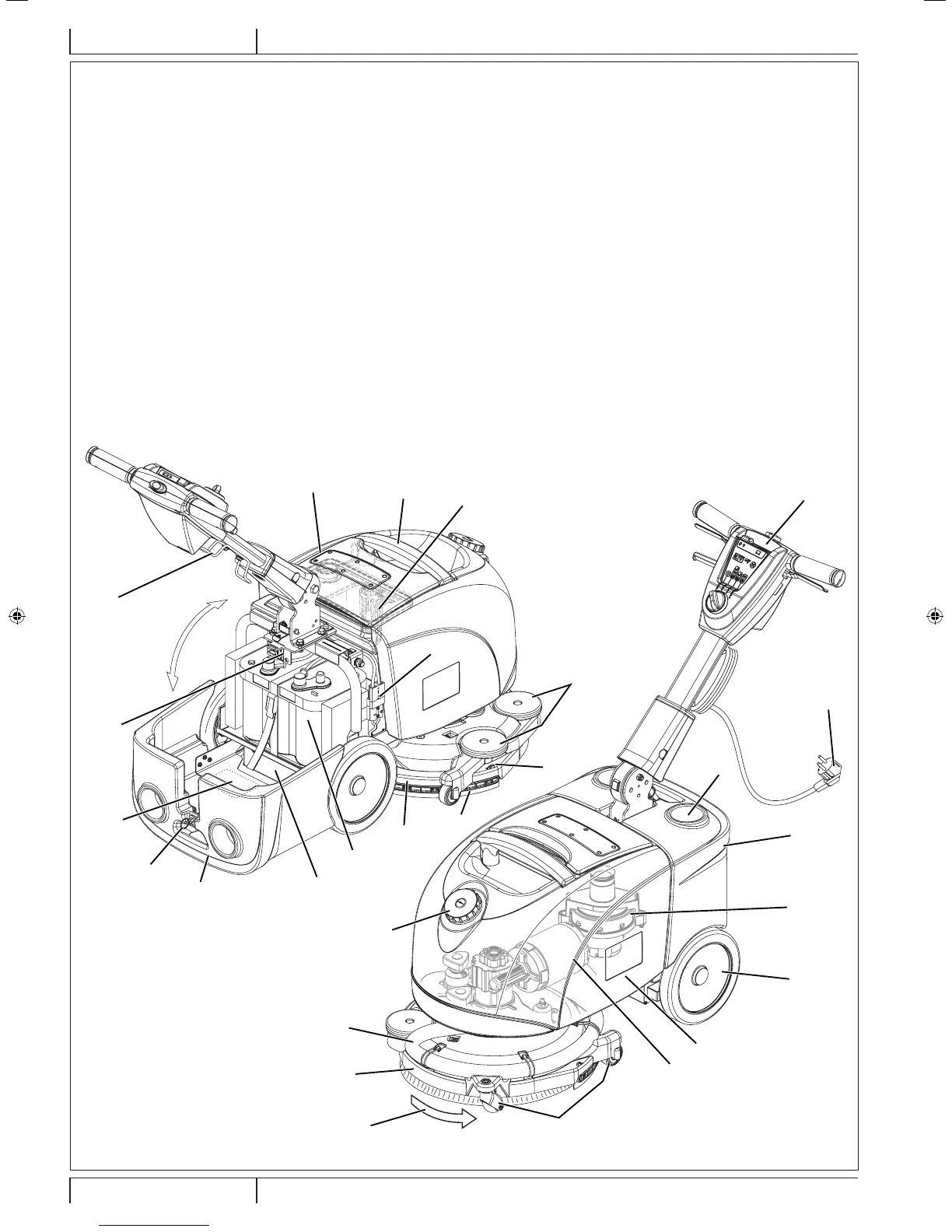

MACHINE DESCRIPTION
MACHINE STRUCTURE
1. Serial number plate/technical data/conformity certication
2. Handlebar with control panel (see the following paragraph)
3. Accessory and battery compartment cover (closed)
4. Accessory and battery compartment cover (open)
5. Cover latch
6. Can holder
7. Battery connection connector. This connector also works
as EMERGENCY push-button, to stop immediately all
functions.
8. GEL/AGM battery
9. Battery charger
10. Battery charger cable
11. Battery charger cable holder
12. Brush/pad-holder deck
13. Brush deck gearmotor
14. Squeegee vacuum hose
15. Brush rotation direction
16. Deck bumper wheels
17. Deck wheels
18. Squeegee
19. Squeegee blades assembly
20. Squeegee fasteners
21. Solution tank ller plug
22. Tank assembly (solution and recovery water)
23. Tank assembly lifting handle
24. Transparent cover with vacuum grid
25. Vacuum grid with automatic shut-off oat
26. Vacuum system motor
27. Rear wheels on xed axle
28. Fuses
9099878000(1)2013-03.indb 6 17-Apr-13 15:51:56
