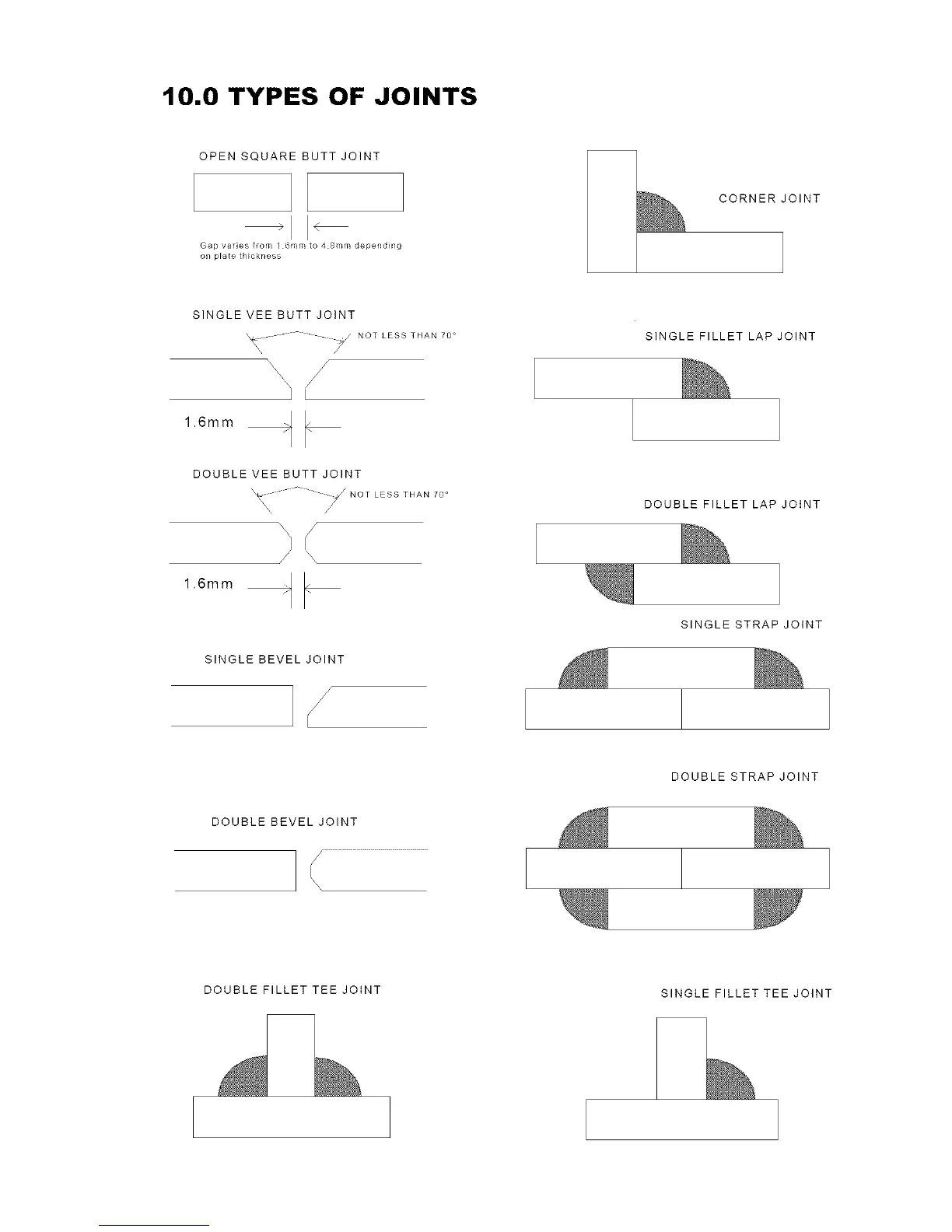

10.0 TYPES OF JOINTS

OPEN SQUARE BUTT JOINT

÷11

Gap varies from _ 6ram to 4 8ram depending

on p_ate thickness

SINGLE VEE BUTT JOINT

1.6mm

........... NOT £ESS THAN 70 °

I L

DOUBLE VEE BUTT JOINT

NOT LESS THAN 70 °

1.6mm _ t

SINGLE BEVEL JOINT

DOUBLE BEVEL JOINT

CORNER JOINT

SINGLE FILLET LAP JOINT

DOUBLE FILLET LAP JOINT

SINGLE STRAP JOINT

DOUBLE STRAP JOINT

DOUBLE FILLET TEE JOINT SINGLE FILLET TEE JOINT
