12
SHARPY
UNPACKING AND PREPARATION
Lamp 189W
(fitted into projector)
IST005/001
2 x 183102/805
1

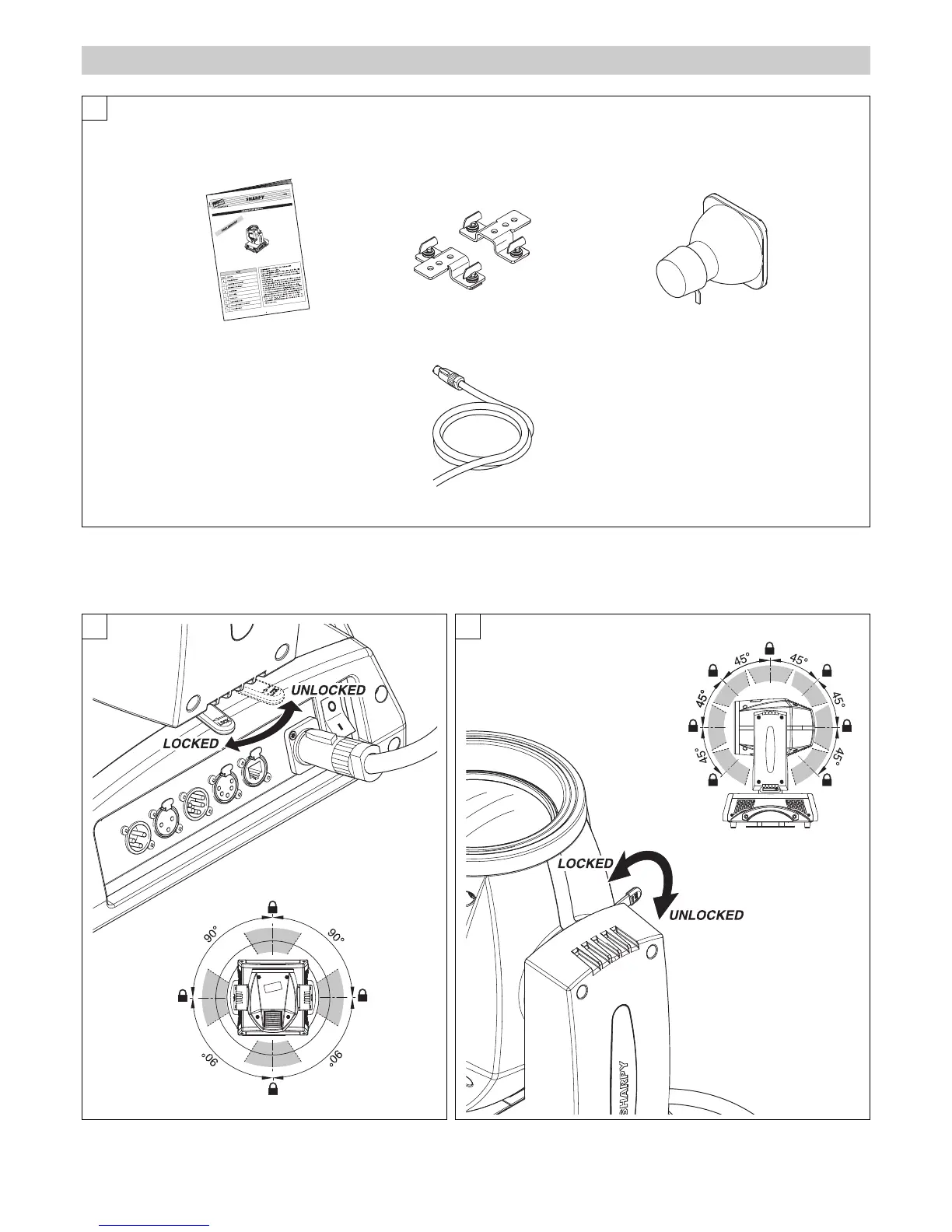

PAN Mechanism Lock and Release (every 90°) - Fig. 2
TILT Mechanism Lock and Release (every 45°) - Fig. 3
2 3
Packing contents - Fig. 1
