Clay Paky Sharpy - Gobo and Accessory Maintenance

25
SHARPY
Lower Side
1
2
6°
2
6°
15
This position is correct.
In the event of fault, manually
bend the metallic support.

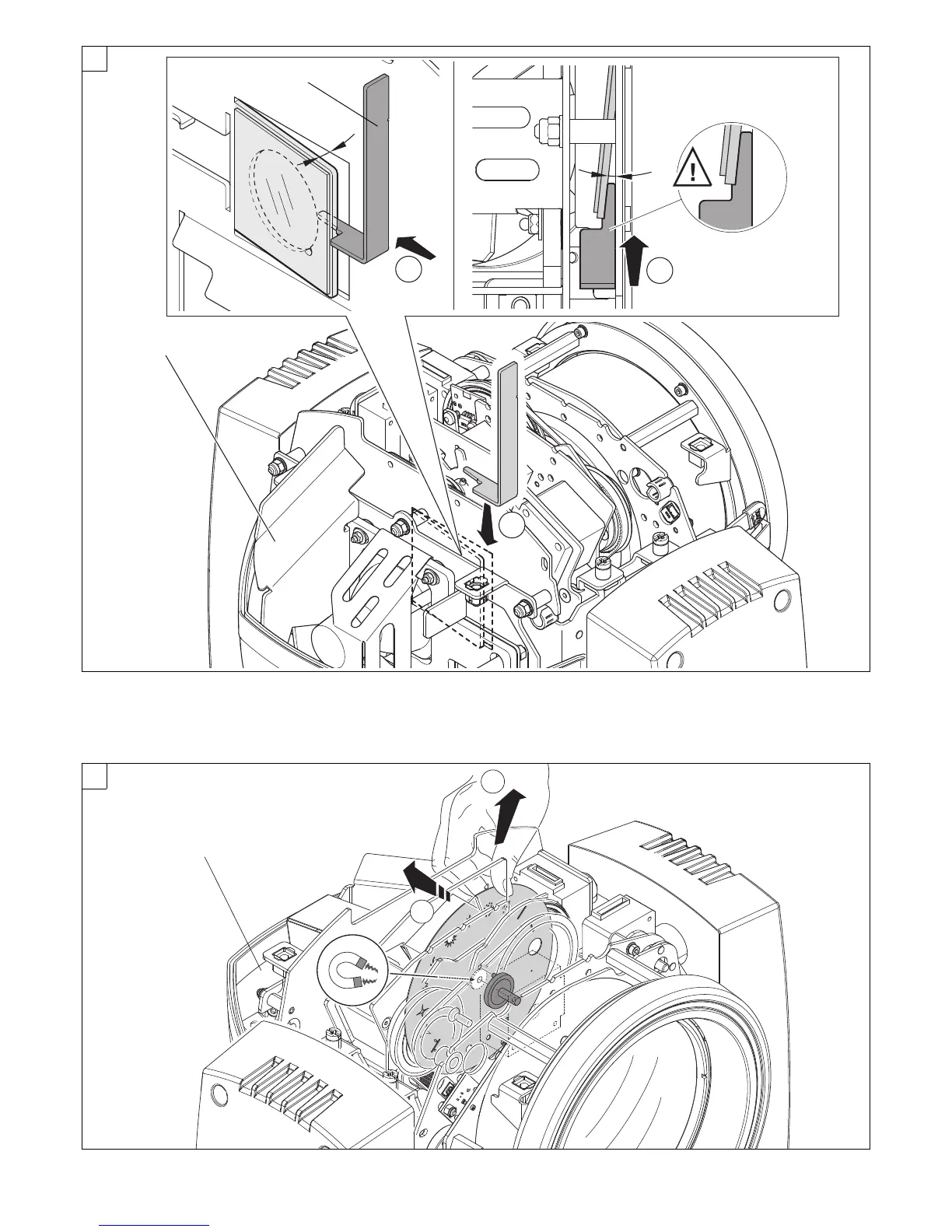

Anti IR/UV filter support template - Fig. 15
WARNING:
During maintenance and lamp replacement, we recommend you pay close attention to correct anti IR/UV filter support tilt. Incorrect tilt com-
promises lamp performance.
Lower Side
2
1
16
Replacing fixed gobos wheel - Fig. 16
WARNING: Before using personalised gobos wheel contact Clay Paky.
DIM003/001
Continue
➔
