SHARPY

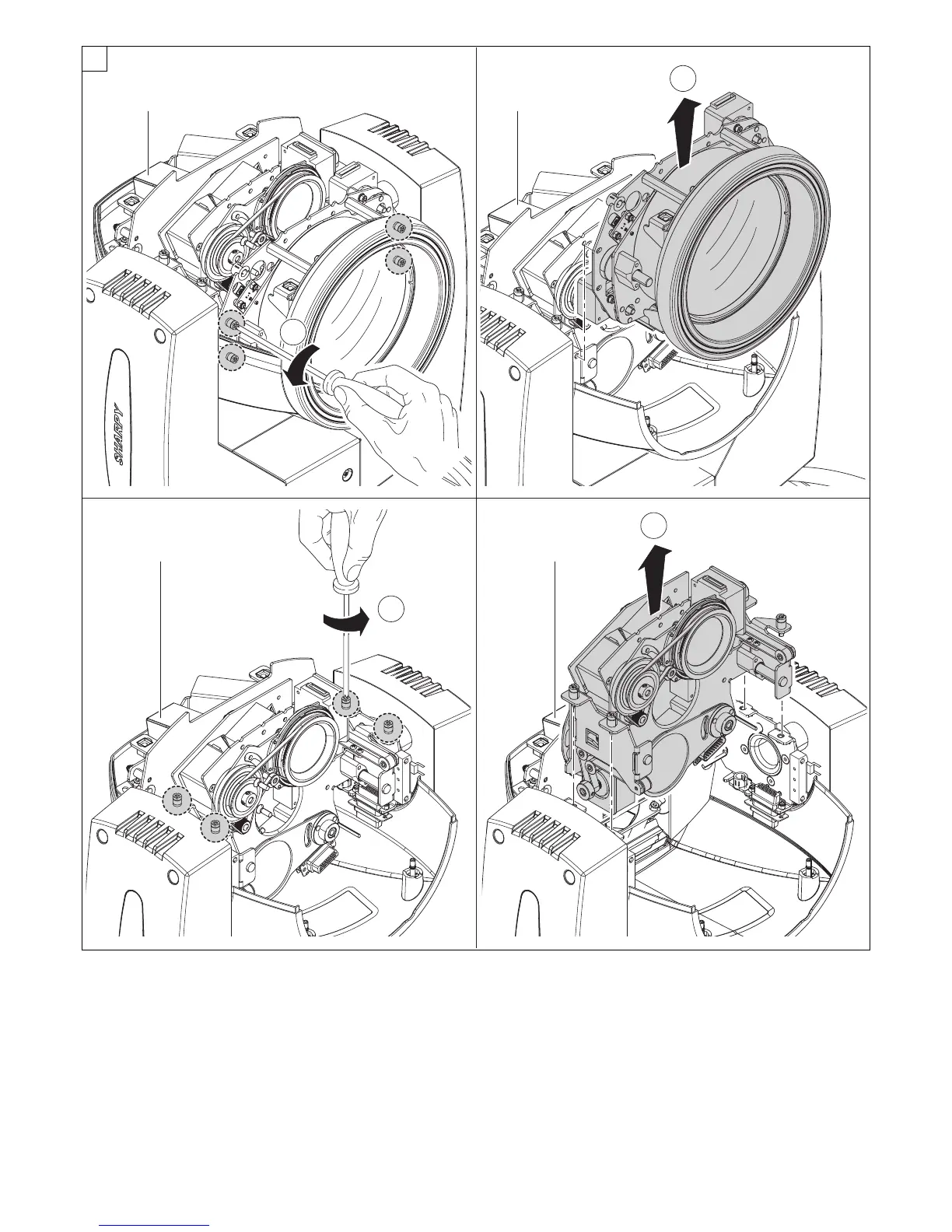

Extraction of the effect modules - Fig. 19
IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 17 and 18 in reverse order.
3
Lower Side
1
Lower Side
2
Lower Side
4
Lower Side
19
