Network
Configuration
Connecting Across Routable Subnets
Company networks typically have multiple subnets or VLANs. IP routers are already configured
to route IP traffic across those subnets. The HMS and HRM/HKB/HXII-BP must have their IP
address, Subnet mask and Gateway set properly (all automatically done when there is a DHCP
server available on the network). If the HRM/HKB/HXII-BP is deployed on a different subnet,
you will need to Pair to Station by entering the IP address of the HMS (Pair to Station by Name
is not available in the Figure 4 example below). “Pair to Station by Name” is discussed later in
this document.

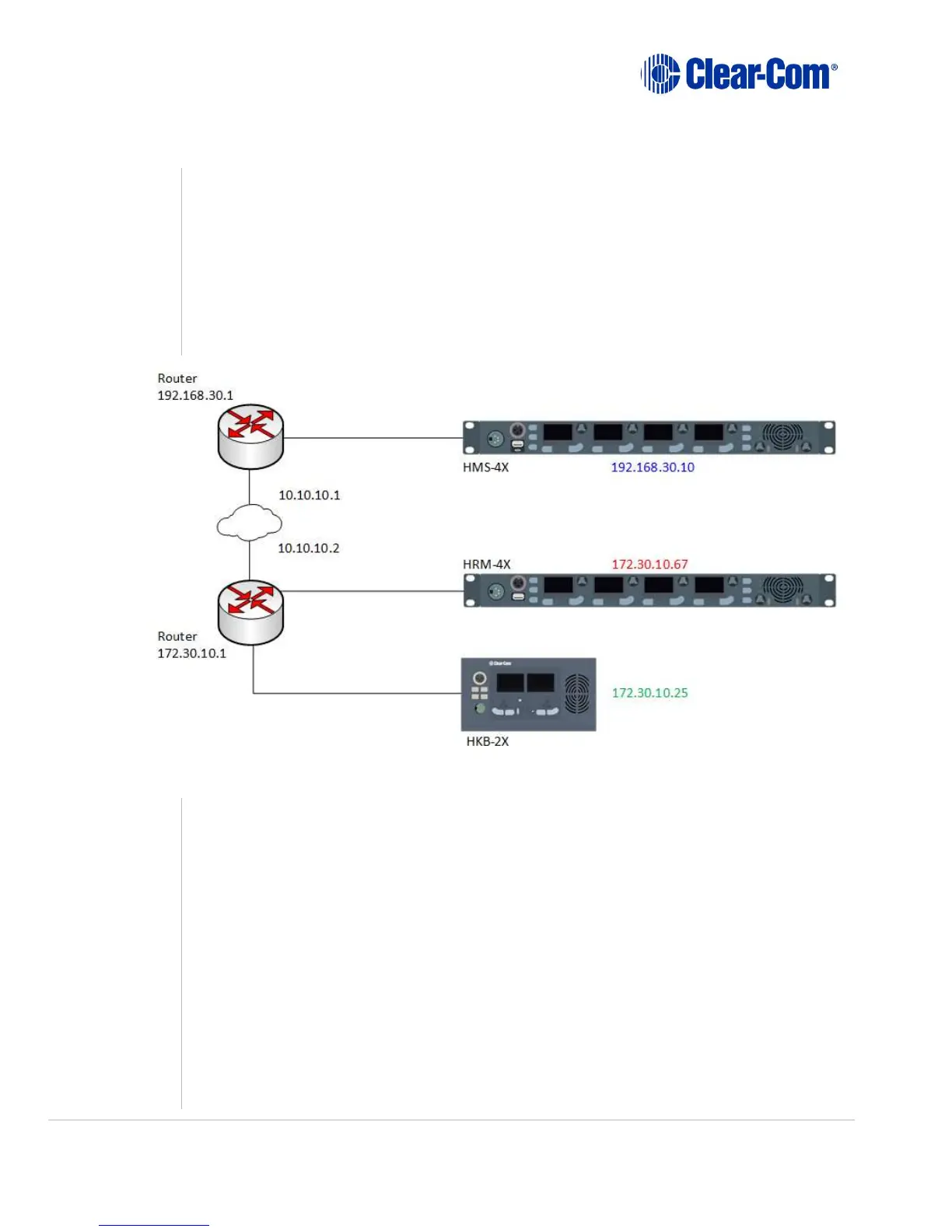

Figure 4
HMS Network Configuration:
IP Address: 192.168.30.10
Subnet Mask: 255.255.255.0
Gateway: 192.168.30.1
HRM Network Configuration:
IP Address: 172.30.10.67
Subnet Mask: 255.255.0.0
Gateway: 172.30.10.1
Pair to Station:192.168.30.10
HKB Network Configuration:
IP Address: 172.30.10.25
Subnet Mask: 255.255.0.0
Gateway: 172.30.10.1
Pair to Station:192.168.30.10
