14.
Making sure that the circular cut-outs in the corners of the acrylic chassis are on the underside.
Carefully (!) insert the bearing spindle into the bearing sleeve in the acrylic chassis.
IMPORTANT!
Be careful not to allow the magnets to snatch
the bearing as you insert it.
15.
Attach the upper drive platter to the bottom of the main bearing spindle by screwing the bottom
cap very tightly to the bottom of the main bearing.
Make sure that the ring of magnets faces down.
IMPORTANT!
Gently push the upper magnetic drive platter
upwards against the acrylic chassis to ensure
that the platter fully sits in the bearing.

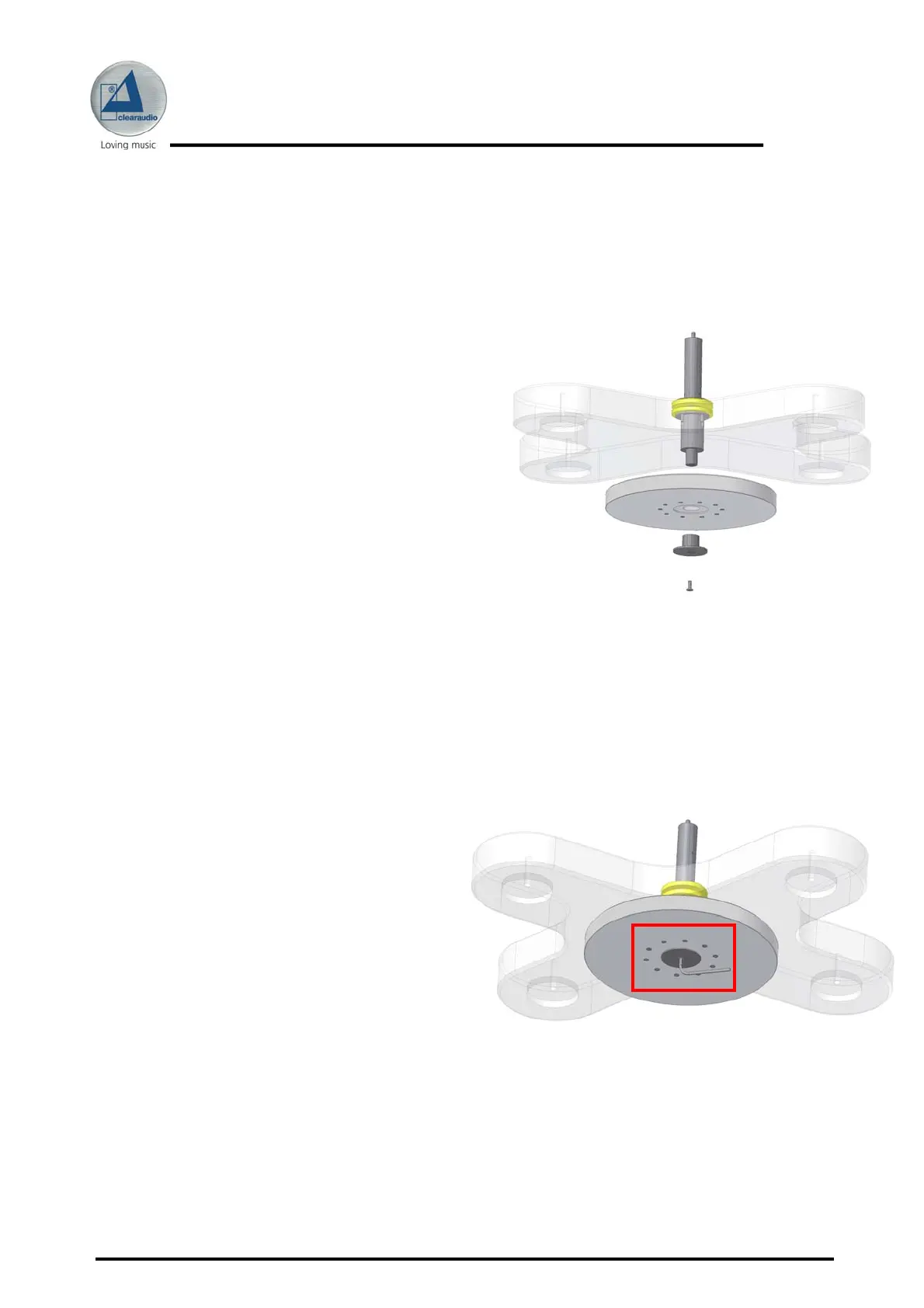

Pic. 14: To insert the bearin
g
spindle into the bearin
g
sleeve
Pic. 15: To attach the upper drive platter to the bottom of the main
bearing spindle
