Cleaver-Brooks Profire E Series - 2.3.2 Firetube Boiler Dimensions

750-297
Profire E/LNE Series Manual
2-3
Installation
2.3.2 - Firetube Boiler Dimensions
Burner Model Boiler HP A B
84 200 34 115
105 250 34 144
126 300 38 158
147 350 38 185
168 400 42 155
210 500 42 195
252 600 46 194
294 700 48 204
336 800 50 230
378 900 60 230
420 1000 60 230

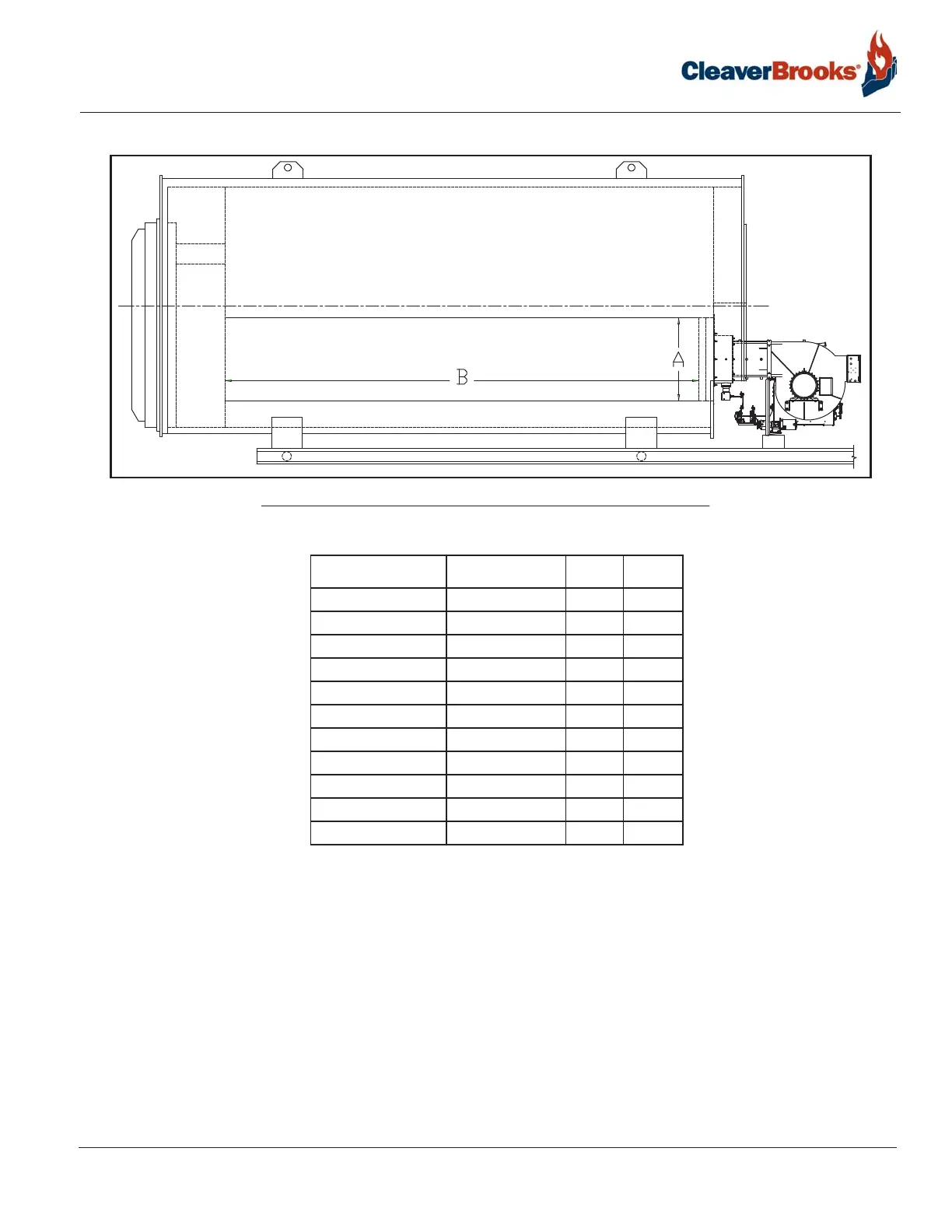

FIGURE 2-2. Combustion Chamber Dimensions (Firetube Boiler)
