Profire E/LNE Series Manual
2-9
Installation

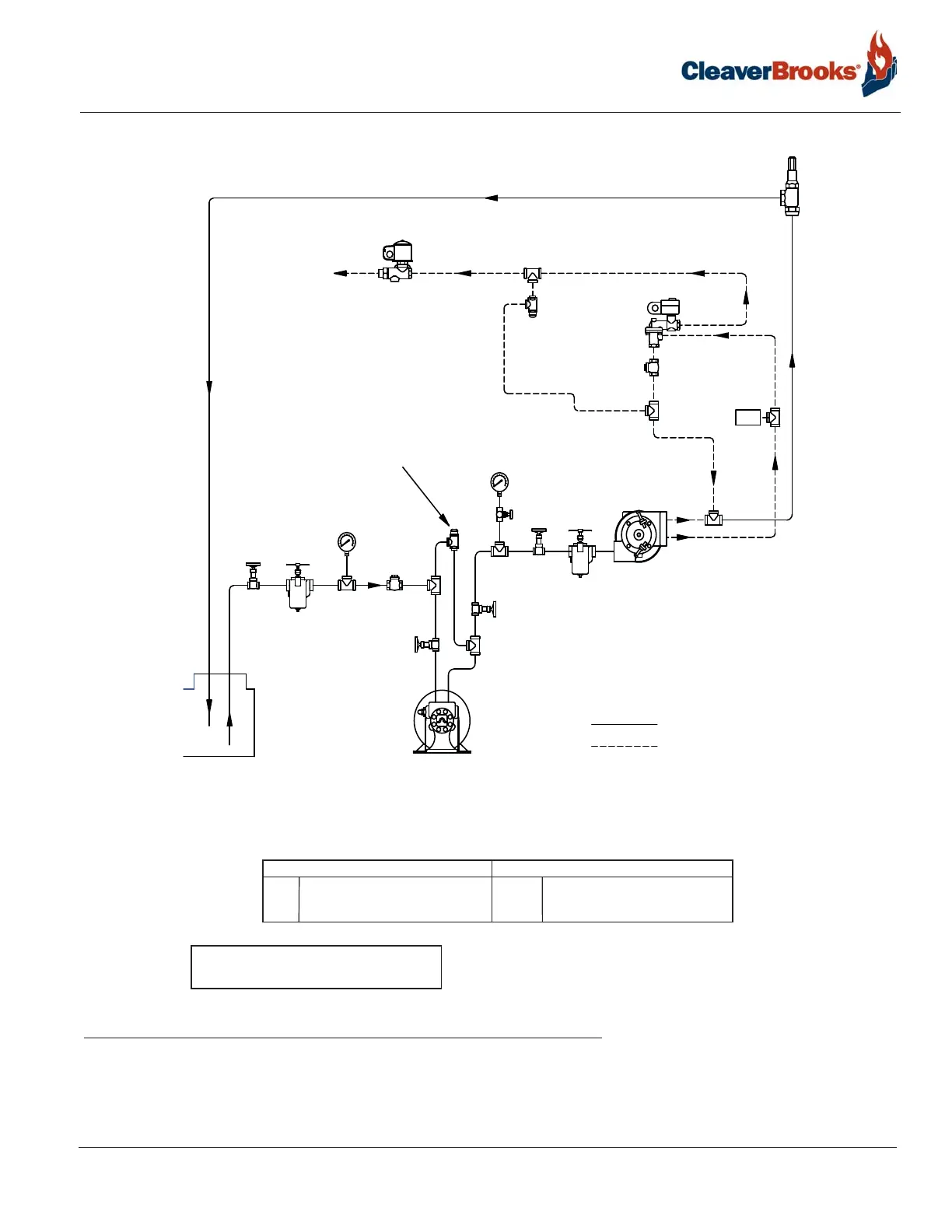

FIGURE 2-7. No. 2 Oil Loop E-84 — E-210
THIS PIPING LAYOUT IS FOR REFERENCE ONLY
AND IS SUBJECT TO CHANGE WITHOUT NOTICE.
OPTIONAL EQUIPMENT MAY CHANGE THIS LAYOUT
CHECK
VALVE
RELIEF
VALVE
2-WAY VALVE
ON BURNER
TO DRAWER
ASSEMBLY
3-WAY VALVE
ON BURNER
RECOMMENDED PIPE SIZE
LOW OIL
PRESSURE
SWITCH
NO. 2 OIL
RETURN SUCTION
GATE
VALVE
OIL METERING
PUMP (SUPPLIED
WITH BURNER)
PRESSURE
GAUGE &
NEEDLE
VALVE
STRAINER
CHECK
VALVE
VACUUM
GAUGE
STRAINER
GATE
VALVE
GATE
VALVE
GATE
VALVE
PIPING BY OTHERS
PIPING BY I.C.
BACK PRESSURE VALVE
SET AT 10-15 PSI
OIL
CIRCULATING
PUMP
OIL
STORAGE
TANK
REQUIRED IF PUMP DOES NOT
HAVE AN INTERNAL RELIEF.
RELIEF VALVE SET AT 50 PSI
TANK TO CIRCULATING PUMP CIRC. PUMP TO BURNER & RETURN
2” 1 1/2”
EL, LNEL EL, LNEL
84, 105, 126, 147, 168, 210
84, 105, 126, 147, 168, 210
