BOILER BOOK CFC-E ENGINEERING DATA
27
(3) Combo trap/treatment tank - The condensate is held in a condensate tank under the boiler. The
condensate is neutralized as it passes through the granular bed. The neutralized condensate is then
piped to the drain.
The combo tank features an integral water trap and float makeup valve.
• To install the system, assemble the tank and neutralization granulate per Figure 19. Two bags of neutralization
media are sufficient to fill the tank.
• Install the condensate tank cover and slide the complete assembly under the boiler
Pipe to the appropriate drain.
The neutralization media will require periodic replacement, to be determined by pH analysis of
condensate. If condensate is too acidic (pH is below acceptable value) the neutralization media
should be replaced.
The neutralizing media should be gently agitated periodically to ensure even distribution and to
avoid channeling of the condensate.
(4) Treatment tank - The condensate is held in a condensate tank(s) under or near the boiler. The
condensate is neutralized as it passes through a bed of granular material. The neutralized
condensate is then piped to the drain.
• To install the system, assemble the tank and fittings per instructions supplied with tank. Neutralization media
are already installed in tank.
• Install the condensate tank cover and connect tank to boiler condensate discharge.
Pipe to an appropriate drain.

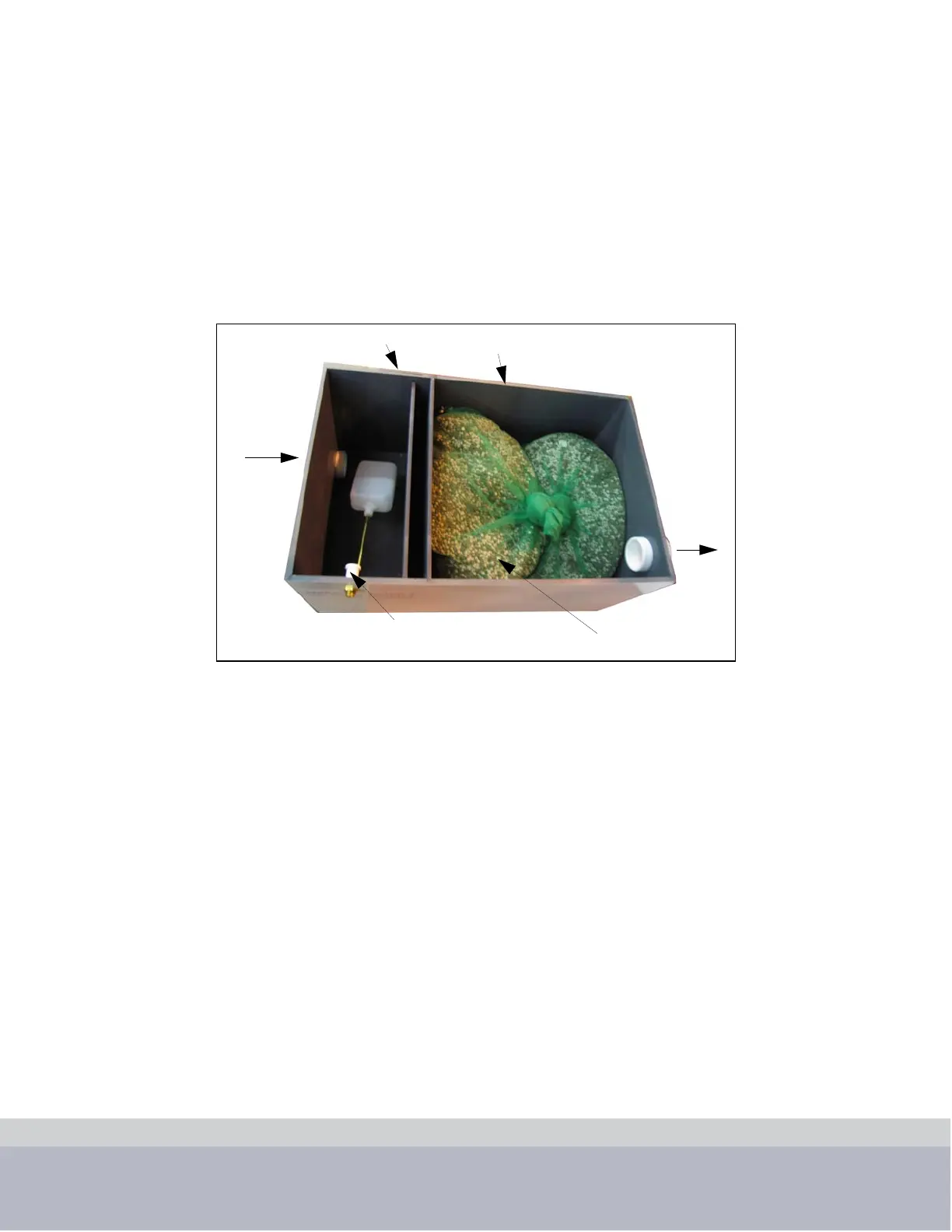

Figure 19. Combo Trap/Tank
Condensate
in
To drain
Float valve for makeup water
Drain trap
Neutralization tank
Neutralization media
