Cleco 48EA Series - Page 28

Page 28
PL12EN-48EA
08/06/2015
“J”
“H”
1
Cleco
®

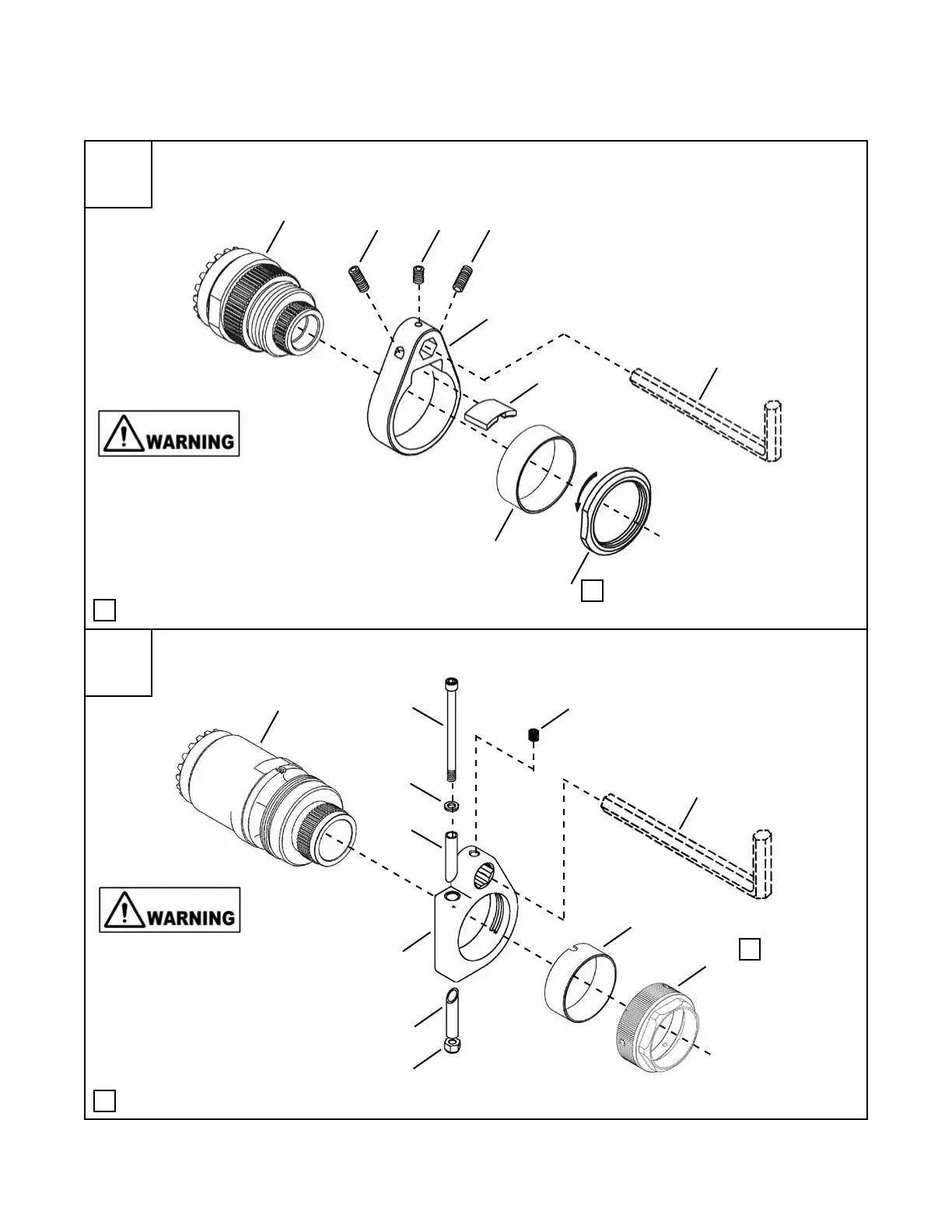

Reaction Bar Installation
“K”
1
See Service Notes
1
See Service Notes
Models
48EA(E)90(---)
48EA(E)105(---)
48EA(E)135(---)
Models
48EA(E)175(---)
48EA(E)230(---)
Off
232
6
1
4
5
Reaction bar and bracket should always be
used in higher torque applications such as
above 50 ft.-lbs. (68 Nm) or in closed-quarter
areas where injury to ngers could occur.
Unscrew Nut (6) and remove the Cover (5).
Install Bracket (1) and Splined Key (4). Re-
install Nut (6). Customer supplied Reaction
Bar bends to t the application.
1/2” Reaction Bar
• Application Specic
• Customer Supplied
Reaction bar and bracket should always be
used in higher torque applications such as
above 50 ft.-lbs. (68 Nm) or in closed-quarter
areas where injury to ngers could occur.
Remove the Cover (7). Install Bracket
(1) over Gear Case hex. Install Locking
Sleeve (5), Washer (3), Bolt (2) and Nut (6).
Customer supplied Reaction Bar bends to t
the application.
3/4” Reaction Bar
• Application Specic
• Customer Supplied
“I”
1
6
5
5
3
2
4
7
8
1
