mPro400GC-I global controller
5 Initial operation:
Putting into use
Danger of hands being crushed.
→ Always use a torque reaction bar for
applications in a restricted space or high
torque: inline tools (4 Nm), pistol grip tools
(10 Nm), right angle tools (60 Nm).
Performing a fastener rundown
The48EseriesnutrunnershavebeenconguredbyApex
Tool Group.A setting for your specc fastener joint must
only be made with the nutrunner controller by qualied
personnel
1
, The initial operation can vary depending on the
type and programming of the nutrunner controller. Refer to
the nutrunner controller Programming Manual.
→Makesurethetoolcableissecurelyattachedtothetool
and controller.
→ Make sure the controller is powered on and properly
programmed (refer to the controller manuals).
→ Make sure the reverse mechanism is in the correct
position.
→Placethesocketorbitontheapplicationanddepressthe
switch actuator to start the rundown.
→Whenthenutrunnershutsoff,releasetheswitchactuator.
→Removethenutrunnerfromtheapplication.
-------------------------------------------------------------------------------
1. Qualied personnel are those who can recognize possible
hazards and institute the appropriate safety measures due to their
professional training, knowl- edge, and experience as well as their
understanding of the relevant conditions pertaining to the work to
bedone.Qualiedpersonnelmustobservetherules

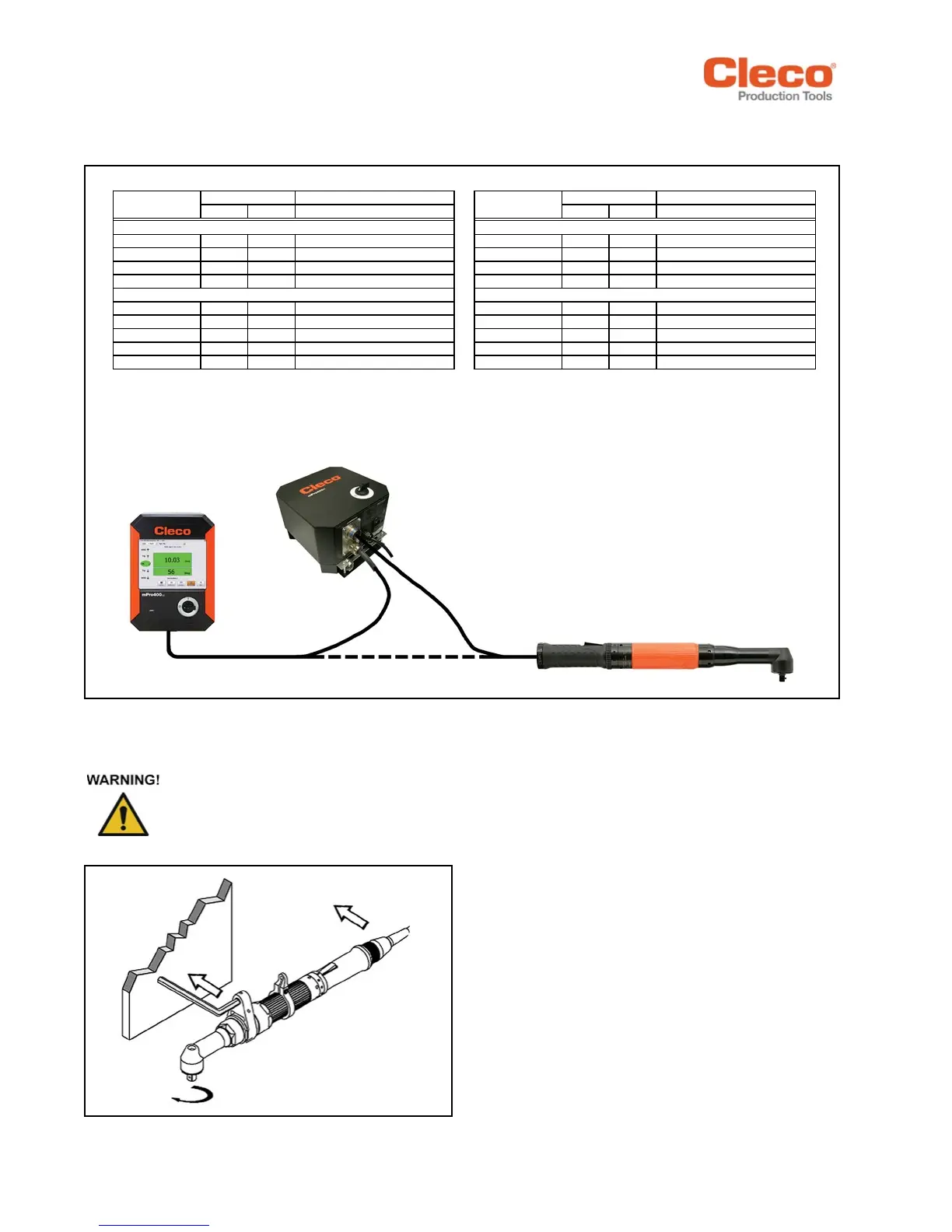

Application
Spindle Rotation
Torque
Reaction
m-Pro-400GC-I
Series
Tool Cable
48EA Right Angle Nutrunner Shown
EN EN
Feet Meters Description Feet Meters Description
301866-XXX * 3 - 49 1 - 15 Tool Cable (1) 542778-XXX * 3 - 49 1 - 15 Tool Cable (1)
301904-XXX * 3 - 49 1 - 15 Swivel Cable: Inline (1) 544056-XXX * 3 - 49 1 - 15 Swivel Cable: Inline (1)
301903-XXX * 3 - 49 1 - 15 Swivel Cable: Right Angle (1) 544055-XXX * 3 - 49 1 - 15 Swivel Cable: Right Angle (1)
301877-XXX 3 - 66 1 - 20 Extension Cable 542779-XXX 3 - 66 1 - 20 Extension Cable
961259-XXX ** 3 - 66 1 - 20 Tool Cable (1) ------------ ------ ------ ------
961250-XXX ** 3 - 66 1 - 20 Tool Cable (2) ------------ ------ ------ ------
961251-XXX ** 3 - 66 1 - 20 Swivel Cable: Inline (2) ------------ ------ ------ ------
961252-XXX ** 3 - 66 1 - 20 Swivel Cable: Right Angle (2) ------------ ------ ------ ------
961249-XXX ** 3 - 66 1 - 20 Extension Cable ------------ ------ ------ ------
** Note: 20M length does not require a transformer. (1) Standard Durability
(1) Standard Durability
(2) High Durability
Non European Union Cables - Air-LB Connector
Non European Union Cables - Matrix Connector
European Union Cables - Air-LB Connector
European Union Cables - Matrix Connector
* Note: 3 ft. and 6 ft. (1M and 2M) cables must be used with
301877 Extension Cable.
* Note: 3 ft. and 6 ft. (1M and 2M) cables must be used with
542779 Extension Cable.
Tool Cables
48EAE series
Cable Length
48EA series
Cable Length
Tool Cable
48EAE Models
