Notes on this Instruction Manual
The original language of this Instruction Manual is German. This Instruction Manual is intended for any per-
sons working with this tool without carrying out adjustment work with the nutrunner control.
The Instruction Manual has the following purposes:
• It provides important instructions for safe and effective operation.
• It describes the function and operation of the electric hand-held nutrunner.
• It serves as a lexicon for technical data and service intervals.
• It points out options.
Nomenclature
Symbols in the text:

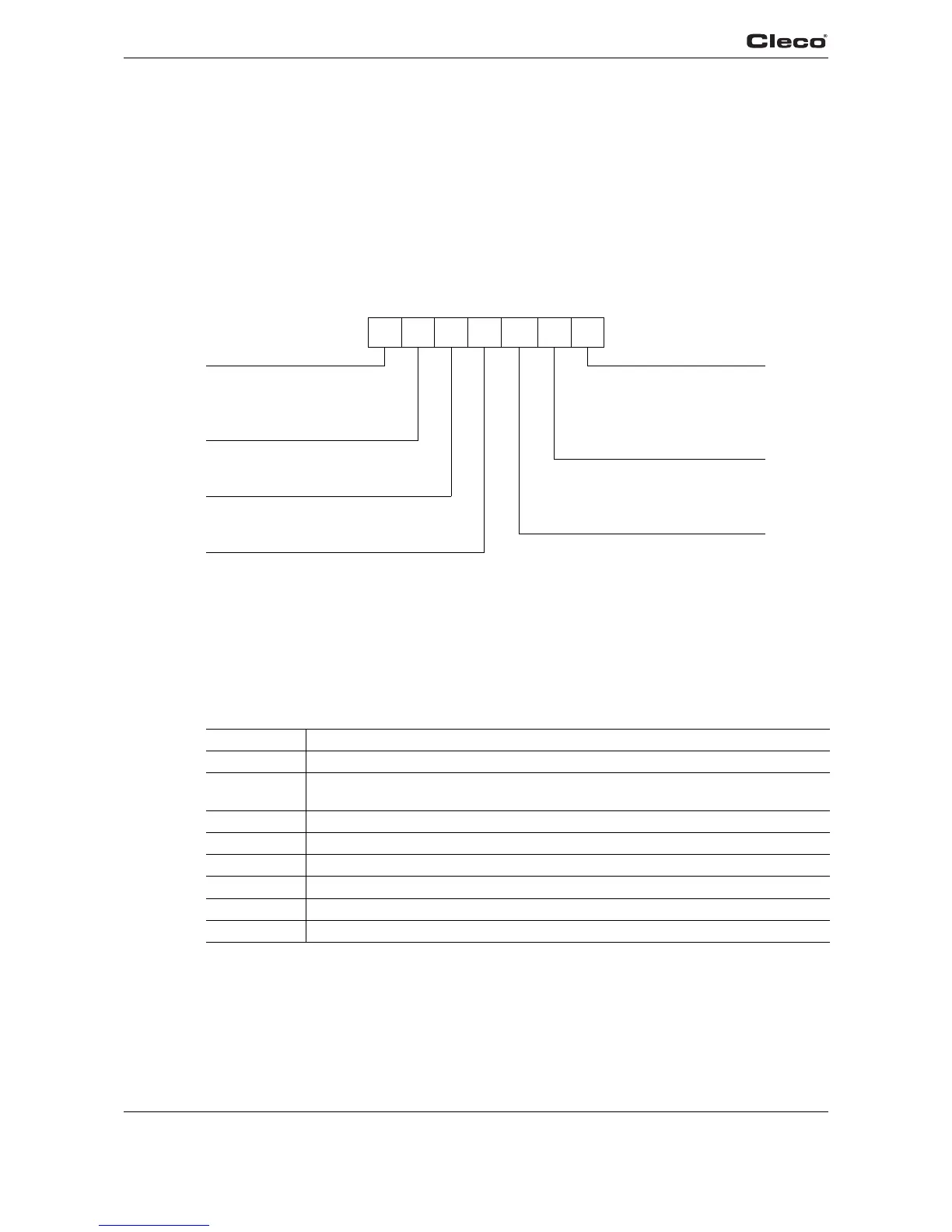

48 E A E … P …
Series Square version
48 4 – 1/2"
3 – 3/8"
6 – 3/4"
Motor
E – Electric motor, brushless Output version
P – Pin
Tool version
A – Angle
Max. torque
Property 1 38 – 38 Nm
E – Air LB connector 51 – 51 Nm
61 – 61 Nm
85 – 85 Nm
120 – 120 Nm
175 – 175 Nm
230 – 230 Nm
italics Identifies menu items such as Diagnosis
> Identifies the selection of a menu item from the menu such as File > Print
<…> Identifies elements to be selected or chosen, such as buttons or external keyboard input,
e.g.<F5>
Courier Indicates the name of check boxes, options and input fields or also files, e.g.setup.exe
Identifies instructions to be followed.
• Identifies lists.
48EAE stands for all styles of the Electric hand-held nutrunner described here.
OK Okay
NOK Not okay
