Clek FLLO - Belt and Manual Storage

82
83
LATCH Belt Storage
REMOVAL OF LATCH BELT FROM STORAGE
Step 1
Remove the Seat Cushion, see “Removing/
Installing Seat Cushion” on page 78.
Step 2

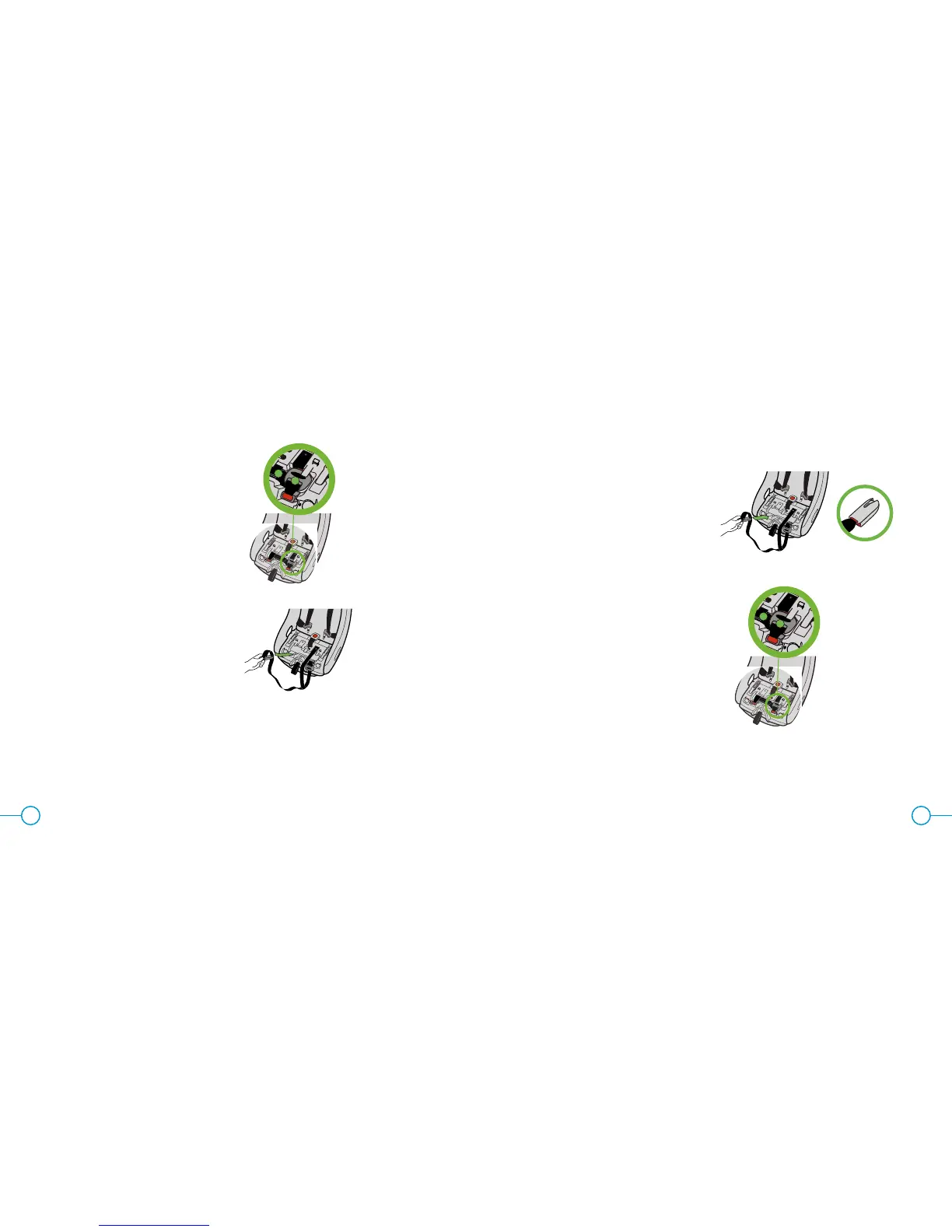

Remove the LATCH Adjuster (1) and Belt (2)
from their storage position in the seat bottom
shown in Figure 120.
Step 3
Push and hold red release button on LATCH
Push-on Connectors and pull out as shown in
Figure 121.
STORAGE OF LATCH BELT
Step 1
Remove the Seat Cushion, see “Removing/
Installing Seat Cushion” on page 78.
Figure 121
Figure 120
2
1
Figure 123
2
1
Figure 122
Step 2
Place LATCH Push-on Connectors in seating
area by inserting through Rear-Facing Belt
Path.
Step 3
Insert the LATCH Push-on Connectors, with
the slots in the end oriented toward the
outside of the seat, into the openings at the
front of the seat bottom. As shown in Figure
122.
Step 4
Insert the LATCH Adjuster (1) into the
square recesses behind the LATCH Push-on
Connector, fold the excess LATCH Belt (2)
and insert under tab between adjusters as
shown in Figure 123.
Step 5
Install the Seat Cushion, see “Removing/
Installing Seat Cushion” on page 78.
