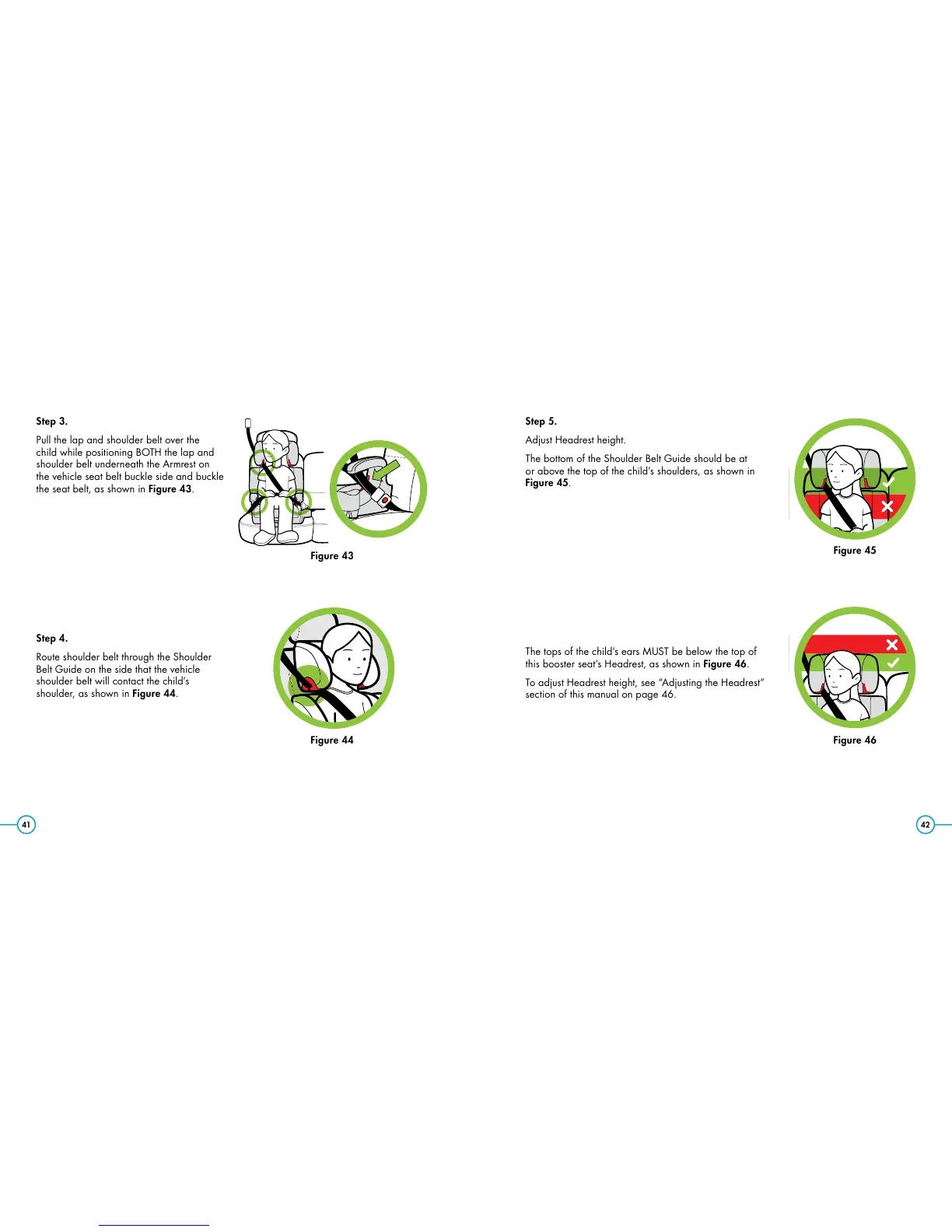

Step 3.
Pull the lap and shoulder belt over the
child while positioning BOTH the lap and
shoulder belt underneath the Armrest on
the vehicle seat belt buckle side and buckle
the seat belt, as shown in Figure 43.
Step 4.
Route shoulder belt through the Shoulder
Belt Guide on the side that the vehicle
shoulder belt will contact the child’s
shoulder, as shown in Figure 44.
Figure 44
Figure 43
Step 5.
Adjust Headrest height.
The bottom of the Shoulder Belt Guide should be at
or above the top of the child’s shoulders, as shown in
Figure 45.
The tops of the child’s ears MUST be below the top of
this booster seat’s Headrest, as shown in Figure 46.
To adjust Headrest height, see “Adjusting the Headrest”
section of this manual on page 46.
Figure 46
Figure 45
