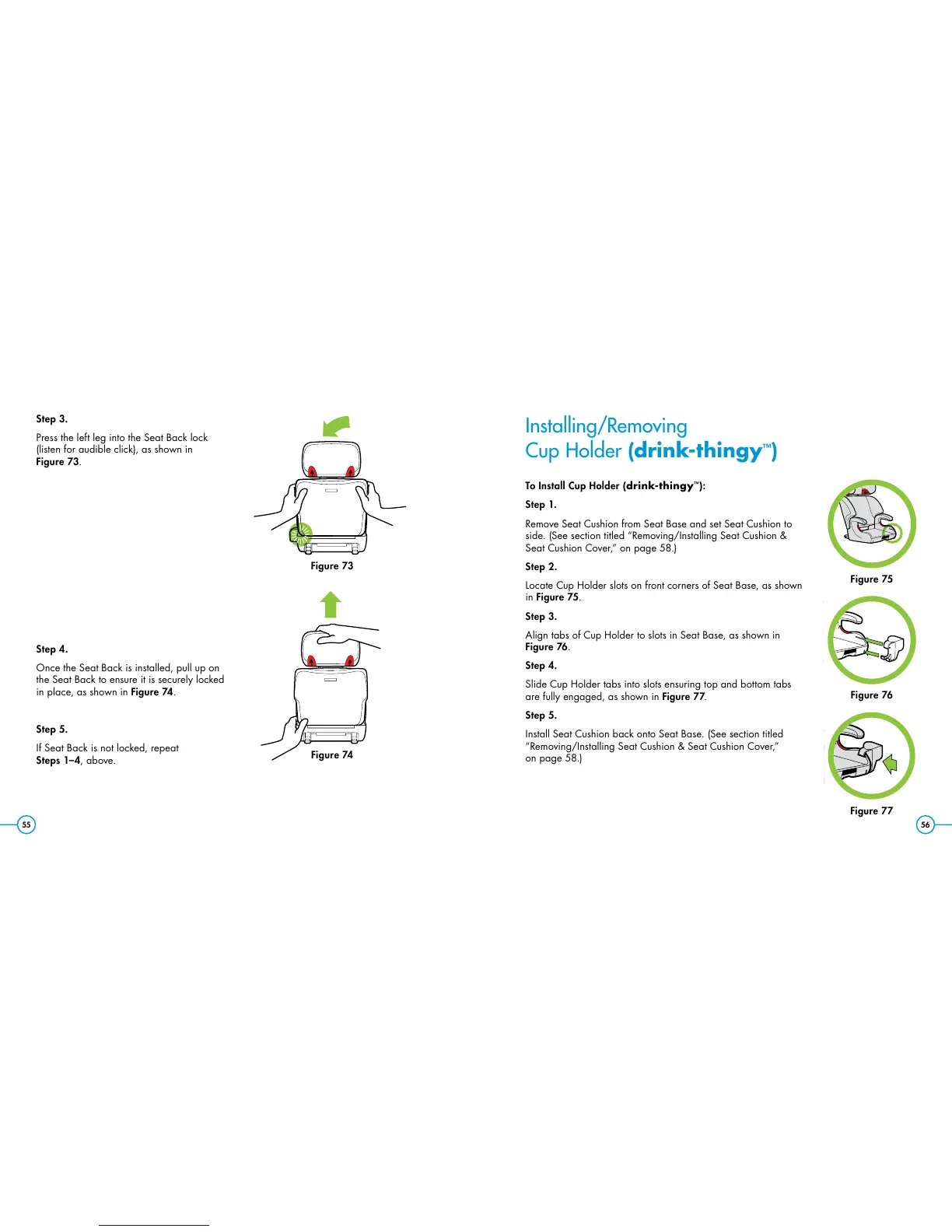

Step 3.
Press the left leg into the Seat Back lock
(listen for audible click), as shown in
Figure 73.
Step 4.
Once the Seat Back is installed, pull up on
the Seat Back to ensure it is securely locked
in place, as shown in Figure 74.
Step 5.
If Seat Back is not locked, repeat
Steps 1–4, above.
Figure 73
Figure 74
Installing/Removing
Cup Holder (drink-thingy
™
)
To Install Cup Holder (drink-thingy
™
):
Step 1.
Remove Seat Cushion from Seat Base and set Seat Cushion to
side. (See section titled “Removing/Installing Seat Cushion &
Seat Cushion Cover,” on page 58.)
Step 2.
Locate Cup Holder slots on front corners of Seat Base, as shown
in Figure 75.
Step 3.
Align tabs of Cup Holder to slots in Seat Base, as shown in
Figure 76.
Step 4.
Slide Cup Holder tabs into slots ensuring top and bottom tabs
are fully engaged, as shown in Figure 77.
Step 5.
Install Seat Cushion back onto Seat Base. (See section titled
“Removing/Installing Seat Cushion & Seat Cushion Cover,”
on page 58.)
Figure 76
Figure 77
Figure 75
