CLASSIC BLAST MACHINE with TLR-100/300 REMOTE CONTROLS Page 32
© 2018 CLEMCO INDUSTRIES CORP. www.clemcoindustries.com Manual No. 22501, Rev. I 02/18

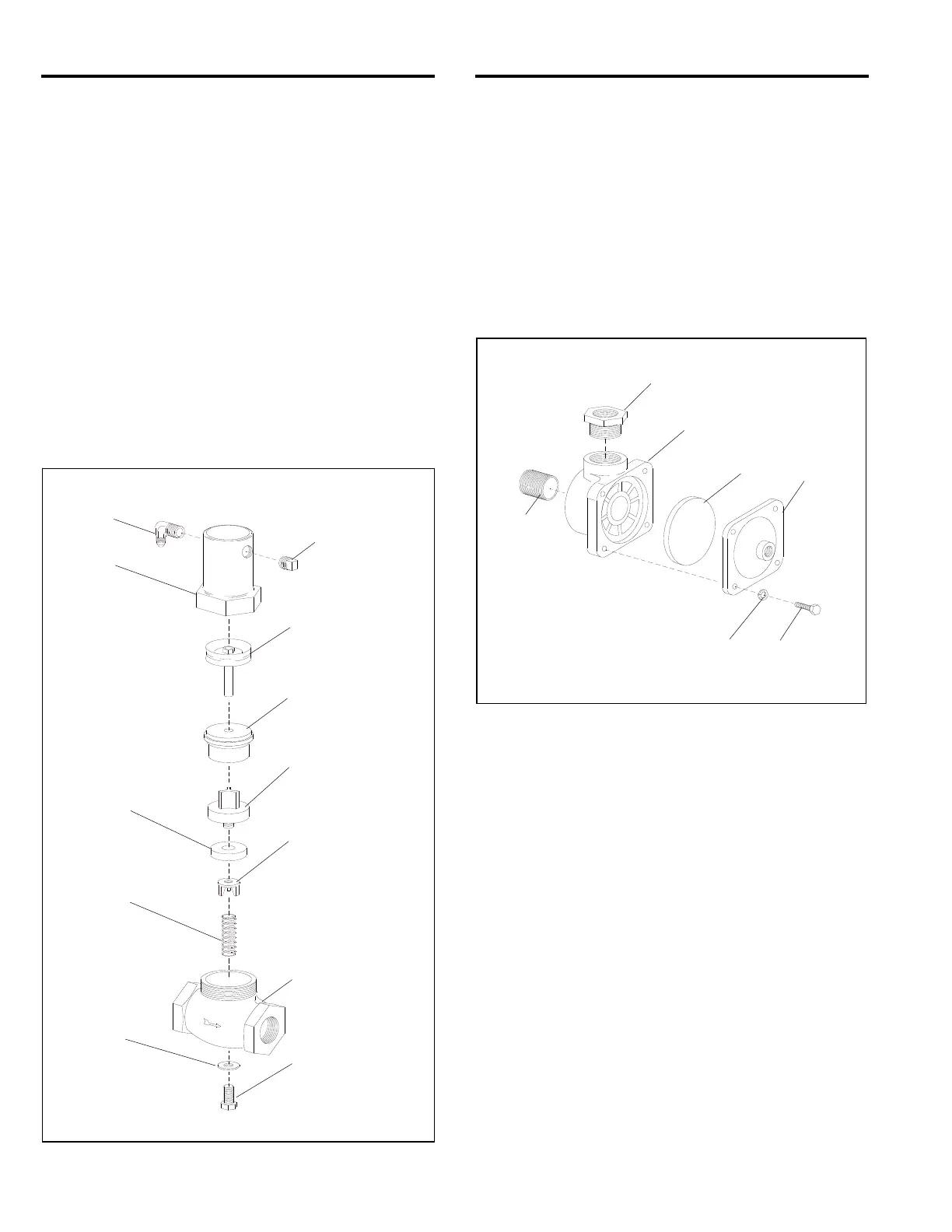

8.11 1" Piston Outlet Valve, Figure 35
Item Description Stock No.
(-) 1" Piston outlet valve, complete ................ 01967
1. Elbow, 1/4" NPT adaptor ........................... 02513
2. Plug, 1/4" NPT ........................................... 01950
3. Bonnet ....................................................... 01970
4. Piston and rod assembly ........................... 01976
5. Plug and spindle guide .............................. 01971
6.* Valve plug, (1) ........................................... 01972
7.* Washer, valve plug, (2) ............................. 01969
8.* Retainer, valve-plug washer, (1) ............... 01986
9. Valve body ................................................. 01968
10.* Spring, 7/16" x 1-5/8" long (1) .................... 01974
11.* Nylon washer ............................................. 01979
12.* Cap screw, 3/8-NC x 3/4" .......................... 03251
(-) Service kit, includes items marked *
quantities are shown in ( ) ....................... 01928
Figure 35
8.12 1" Diaphragm Outlet Valve, Figure 36
Item Description Stock No.
(-) 1" Diaphragm outlet valve, complete ........ 03371
1. Nipple, 1" x close ....................................... 01701
2. Diaphragm ................................................. 06149
3. Lockwasher, 1/4" ....................................... 03117
4. Cap screw, 1/4-NC x 1" hh ........................ 03053
5. Cap, diaphragm outlet ............................... 03393
6. Body, diaphragm outlet ............................. 06135
7. Bushing, 1-1/4" x 1" NPT ............................ 01804
Figure 36
2
4
5
6*
8*
9
12*
7*
11*
10*
3
1
6
7
2
5
1
3
4
