Clemco SCW-2048 User Manual

10
3.4.2 Dual function electro-pneumatic

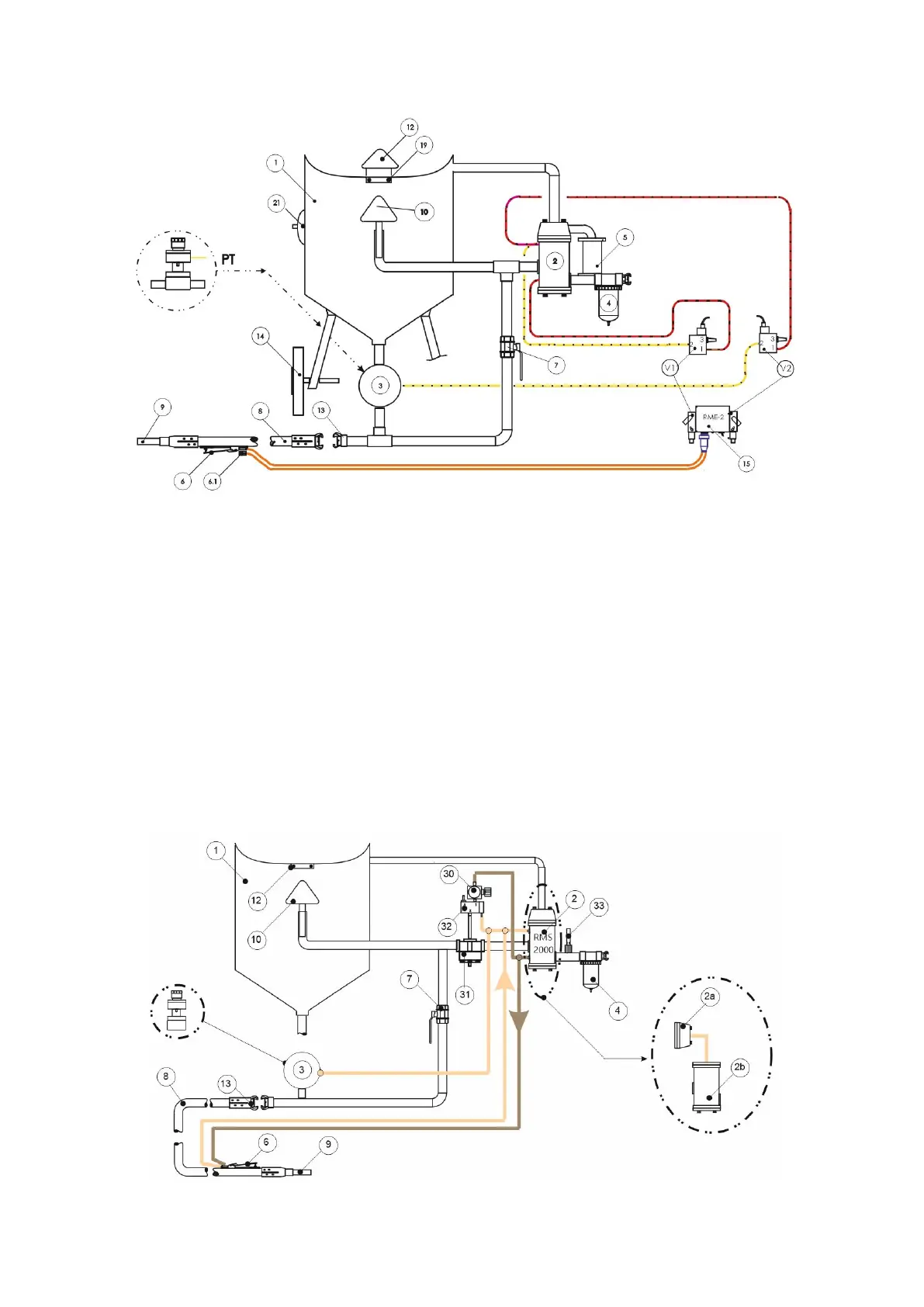

Figure 5: Dual function electric.
An additional electrical switch on the deadman handle enables the operator to open or close the
pneumatically operated metering valve when the deadman handle is depressed. A magnetic valve
mounted on the electric control panel RME-2 (item 15) converts the electric signal into a pneumatic
signal. When the deadman handle is released the media metering valve closes independent of
the switch position.
3.5 Optional single chamber blast machine with pneumatic metering valve,
compressed air regulator governed by pilot air and RMS remote control valve
3.5.1 RMS 2000 or RMS 500 + RMS 1500 pneumatic remote control and remote
control valves
Fig. A
