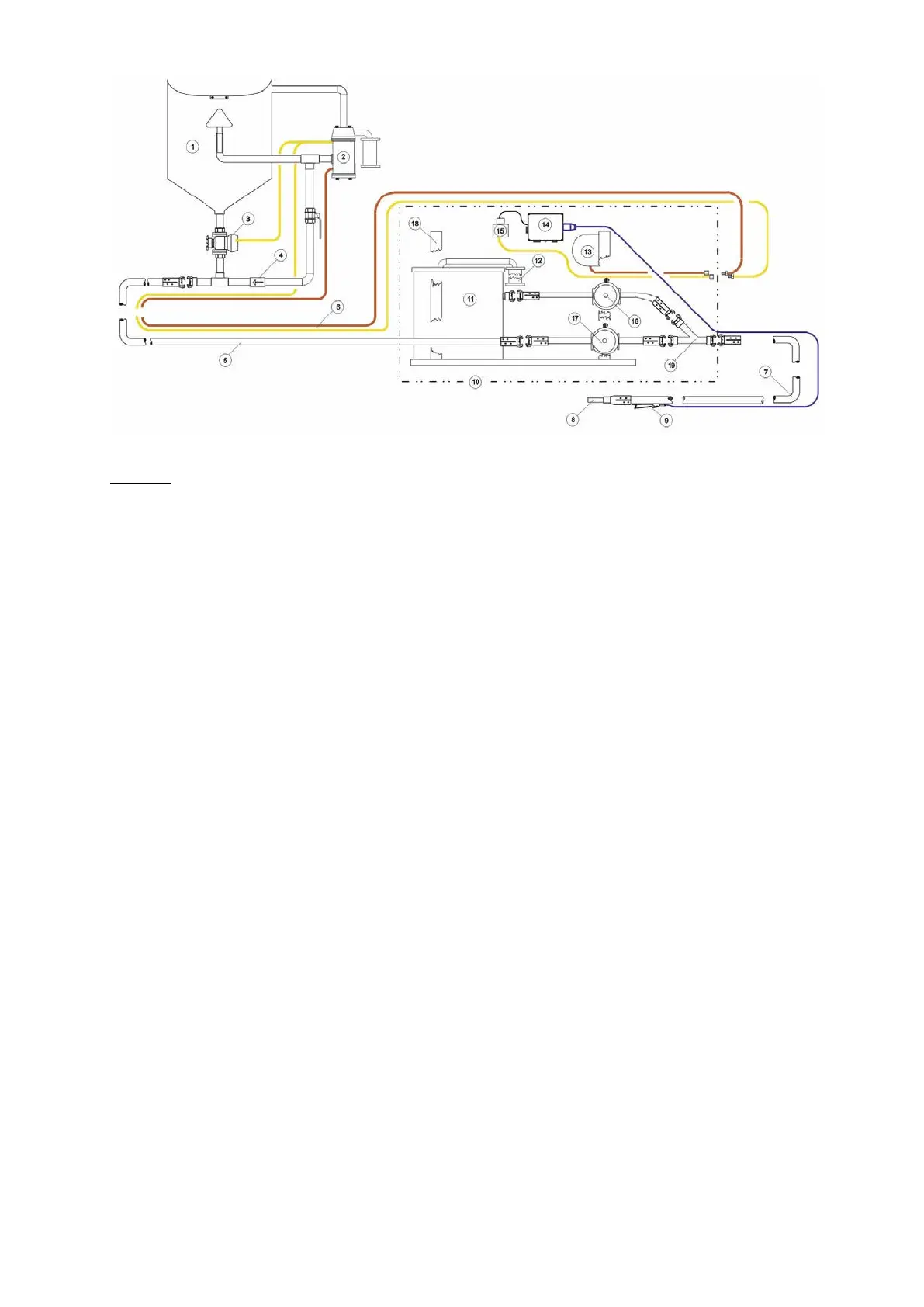

Figure 6: Quick Stop System SSAS1
Legend:
1 Blast pot with:
- 2 Remote Control (example RMS 2000)
- 3 Abrasive metering valve
- 4 Non return valve
5 Abrasive hose between pot and SSAS1
6 Control hose
7 Abrasive hose between SSAS and nozzle (max. 10 m)
8 Nozzle holder with nozzle
9 Electric remote control handle and control cord RLX-E
10 Quick stop system SSAS with:
- 11 Dust container
- 12 Muffler
- 13 Air balance buffer
- 14 Electric control box
- 15 4/2 way valve
- 16 Pneumatic valve (closed during blast operation)
- 17 Pneumatic valve (open during blast operation)
- 18 Frame
