Clemco Zero User Manual

BNP PRESSURE BLAST CONVERSION KIT Page 13

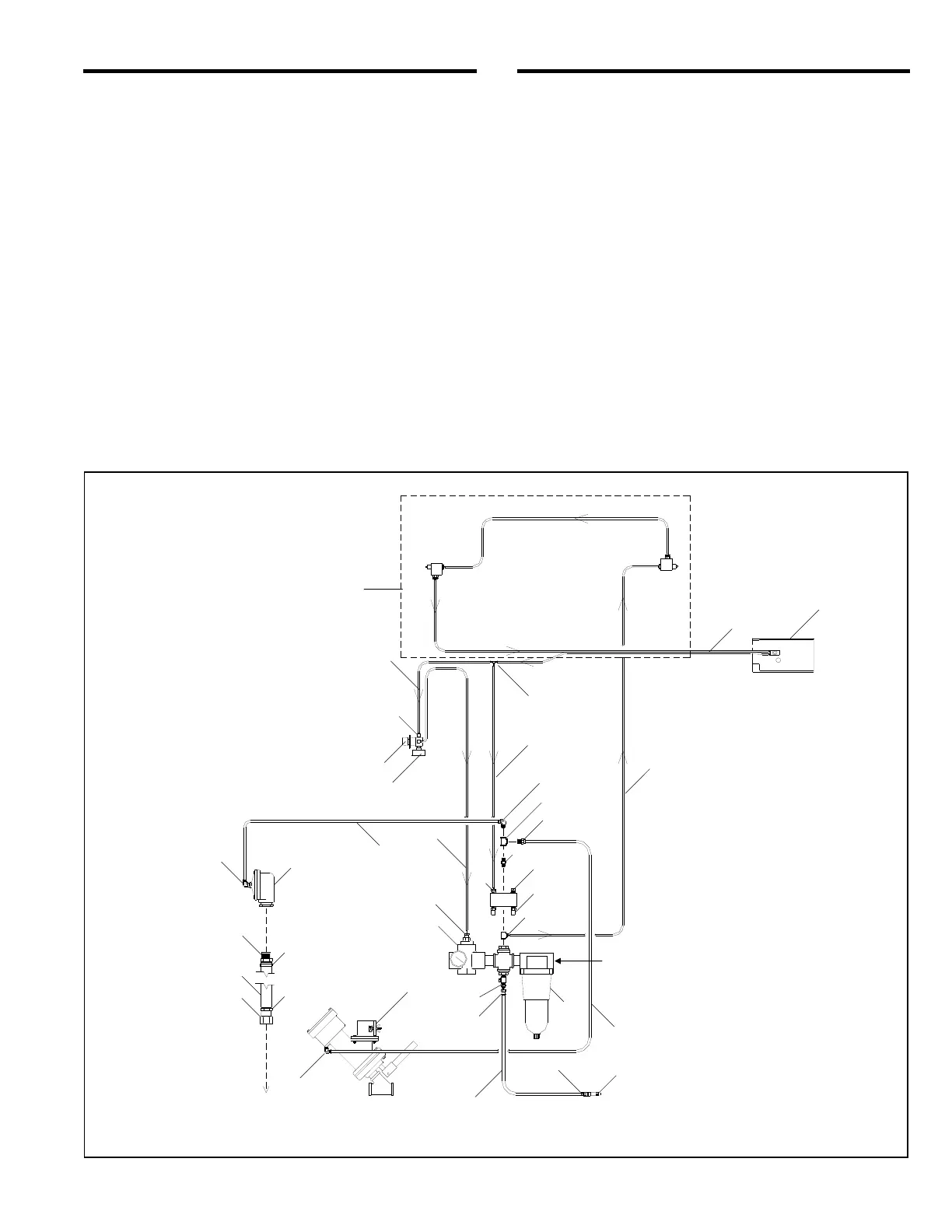

9.4 Plumbing Assembly, Figure 7
Item Description Stock No.
1. Filter, 1" w/ auto drain .................................. 22425
2. Adaptor, 1/8" NPT x 1/8" barb ..................... 11732
3. Tubing, 1/8" ID urethane, specify ft reqd. .... 12475
4. Tubing, 1/8" ID twin urethane
specify feet required ..................................... 19577
5. Adaptor, straight 1/4" male NPT x 3/8" tube 11736
6. Tubing, 3/8" OD poly, specify ft. required .... 12478
7. Tee, 1/8" tube barb ...................................... 11734
8. Metering valve, Sentinel
for 50 mesh and finer media, standard ..... 21439
for 50 mesh and coarser media ................ 20608
9. Hose end, 1" x 1" female ............................. 11719
10. Valve, 4-way air ........................................... 12203
11. Adaptor, elbow 1/4" male NPT x 3/8" tube .. 11685
12. Valve, 1" diaphragm outlet ........................... 03371
13. Hose end, 1" barb x 1" male NPT ................ 11721
14. Clamp, hose, 1-7/16" dia. ............................ 21270
15. Bushing 1/4" x 1/8" NPT. ............................. 02010
16. Hose, 1" Supa-T, bulk, 10 ft. required .......... 23103
17. Muffler, 1/4" bronze ...................................... 03988
18. Adaptor, 1/2" NPT x 1/2" male flare ............. 11351
19. Hose end, 1/2" barb x 1/2" female swivel .... 15002
20. Hose end, 1/2" barb x 3/8" male NPT .......... 06369
21. Blow-off nozzle ............................................. 13116
22. Hose, 1/2" ID air, bulk, specify feet reqd. ..... 12472
23. Regulator, 1/8" NPT pilot ............................. 12715
24. Gauge, pressure .......................................... 01908
25. Adaptor, 1/8" NPT elbow x 1/8" barb ........... 11733
26. Foot pedal assembly, less tubing ................ 20483
27. Regulator, 1" pilot operated w/ gauge .......... 12052
28. Tee, 1/4" brass ............................................. 02025
29. Nipple, 1/4" Hex ........................................... 02808
Figure 7
1
26
4
27
24
25
3
7
5
6
8
9
21
13
12
14
16
11
15, 25
17
28
19
22
18
20
10
23
3
Compressed Air Inlet
3
14
11
2, 15
2
29
6
11
3
Area within broken lines shows
system interfaced with door interlocks.
Bypass if interlocks are not used.
