BNP PRESSURE BLAST CONVERSION KIT Page 14

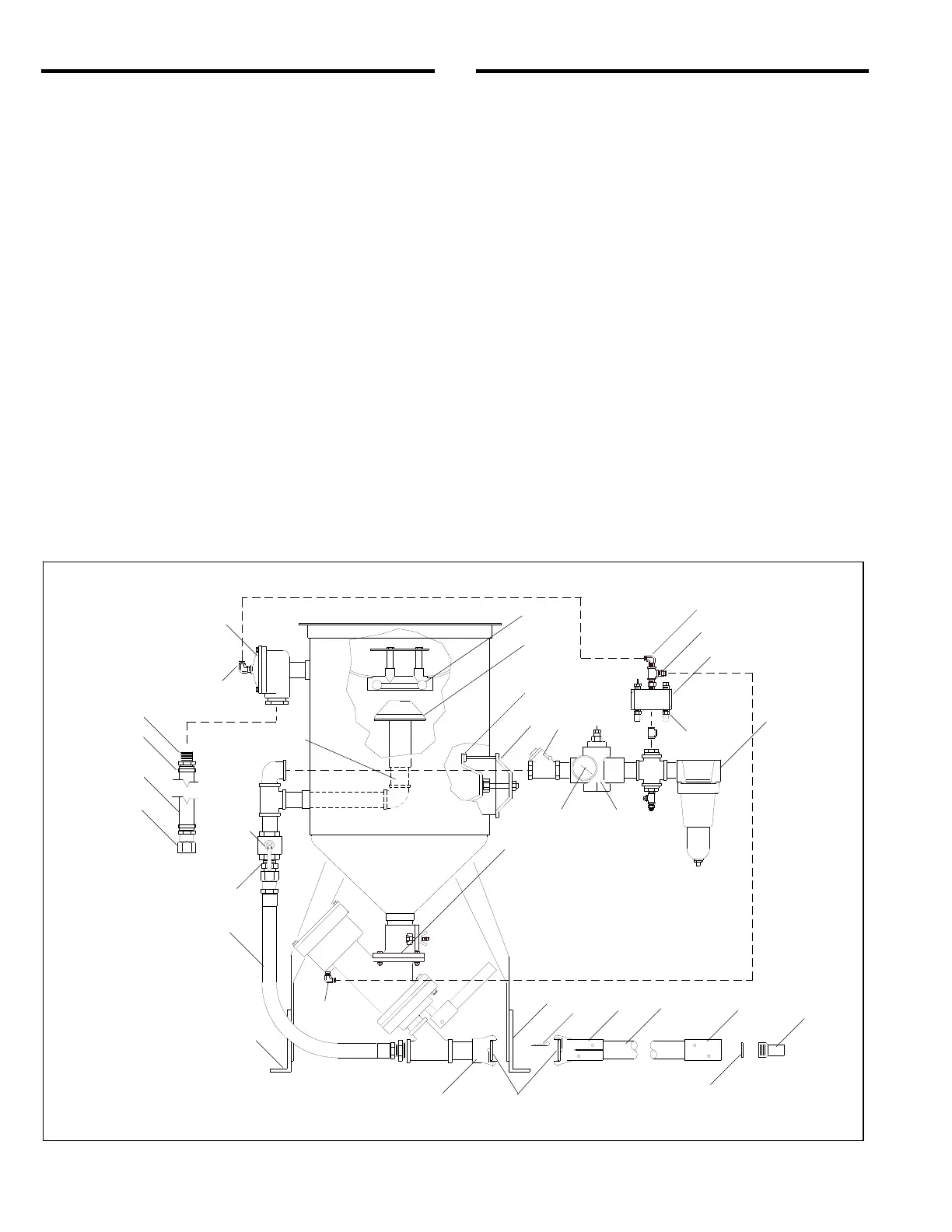

9.5 Blast Machine, Figure 8
Item Description Stock No.
(-) Blast machine assembly, 16", 2 cu. ft. cap. ... 21135
1. Ball valve, 1" with handle (choke valve) ....... 02396
2. Handle, 1" ball valve ..................................... 22531
3. Leg pad, right for 1642 ................................. 20735
4. Leg pad, left for 1642 .................................... 20736
5. Adaptor, 1" male NPT x 1" male flare ........... 11720
6. Hose assembly, 1" x 21" pusher line ............ 22508
7. CF Coupling 1-1/4" NPT ............................... 00551
8. Media metering valve, Sentinel
for 50 mesh and finer media, standard ..... 21439
for 50 mesh and coarser media ................ 20608
9. Inspection door assembly, 6" x 8" ................ 02377
10. Gasket, 6" x 8" inspection door .................... 02369
11. Pop-up valve with external sleeve ................ 03699
12. Guide 1-1/4" x 6" toe .................................... 01722
13. Seat, pop-up valve ........................................ 02325
14. Valve, 1" diaphragm outlet ........................... 03371
15. Regulator, 1" pilot operated w/ gauge .......... 12052
16. Gauge, 1/4" cbm ........................................... 11830
17. Filter, 1" w/ auto drain ................................... 22425
18. Check valve, 1" swing ................................... 12187
19. Gasket, CQG, pkg of 10 ............................... 00850
20. Coupling, 1/2" ID hose, CQA-1/2 .................. 00599
21. Valve, 4-way air ............................................ 12203
22. Nozzle holder, CHE-1/2 ................................ 00577
23. Blast hose, 1/2" ID x 16 ft. coupled,
includes items 20 & 22 ................................. 01251
24. Nozzle, tungsten carbide
CT-2, 1/8" orifice ........................................ 01351
CT-3, 3/16" orifice, standard ..................... 01352
CT-4, 1/4" orifice ........................................ 01353
25. Nozzle washer, NW-1, pkg. of 10 ................. 21580
26. Hose end, 1" barb x 1" male ......................... 11721
27. Clamp, hose, 1-7/16" dia. ............................. 21270
28. Hose end, 1" barb x 1" female ...................... 11719
29. Hose, 1" Supa-T, bulk 10 feet required ........ 23103
30. Lock pin, coupling (package of 25) ............... 11203
31. Adaptor, elbow 1/4" male NPT x 3/8" tube ... 11685
32. Adaptor, straight 1/4" male NPT x 3/8" tube . 11736
33. Muffler, 1/4" bronze ...................................... 03988
Figure 8
4
1, 2
5
3
6
9
7
8
13
10
12
11
18
16
17
15
14
24
20
21
25
22
26
23
19
27
29
28
30
33
32
31
31
31
