BNP PRESSURE BLAST CONVERSION KIT Page 15
9.6 Sentinel Valve Replacement Parts
Refer to the Sentinel valve owner’s manual for
replacement parts.
9.7 Reclaimer, for 16  Dia. Blast Machine
Figure 9
NOTE: Flex hose, clamp and lower adhesive backed
gasket are not supplied with replacement reclaimers.
Item Description Stock No.
(-) Reclaimer assembly, with exhauster
600 cfm ..................................................... 21251
900 cfm ..................................................... 21253
(-) Reclaimer assembly, less exhauster
600 cfm . .................................................... 21250
900 cfm ..................................................... 21252
(-) Reclaimer assembly, pull-through type
600 cfm . .................................................... 21292
900 cfm ..................................................... 21293
1. Motor, exhauster
for 600 cfm reclaimer, 1 HP, 1-PH ............ 12314
for 900 cfm reclaimer, 2 HP, 3-PH ............ 12309
2. Plate, motor mount
600 cfm ..................................................... 12004
900 cfm ..................................................... 12005
3. Housing,
600 cfm exhauster .................................... 12272
900 cfm exhauster .................................... 12271
4. Gasket, 5/16" x 1" adhesive backed,
(4 ft. required for each location) ................... 00187
5. Paddle wheel
600 cfm ..................................................... 12334
900 cfm ..................................................... 12335
6. Inlet pipe adaptor
600 cfm, 5" ................................................ 12361
900 cfm, 6" ................................................ 12363
900 cfm, 5" for steel media ....................... 14411
7. Gasket, inlet adaptor
600 cfm ..................................................... 11779
900 cfm ..................................................... 11759
8. Wear plate
600 cfm ..................................................... 13011
900 cfm ..................................................... 14055
9. Screen assembly ......................................... 21265
10. Gasket, door ................................................ 11745
11. Spring latch assembly .................................. 12263
12. Gasket, 2" adhesive backed,
specify ft. required ........................................ 13089
13. Vortex cylinder assembly, adjustable,
for exhauster mounted reclaimer, optional
600 cfm ..................................................... 19062
900 cfm ..................................................... 23047
14. Vortex cylinder assembly, adjustable,
standard with pull-through reclaimer
600 cfm ..................................................... 19080
900 cfm ..................................................... 23046
15. Hose support inlet, optional for 900 cfm only
5", for use with steel media, w/5" hose ..... 22324
6", standard ............................................... 16887
16. Hose, light lined flex, specify feet required
5" ID for 600 cfm ....................................... 12467
6" ID for 900 cfm ....................................... 12468
17. Clamp, hose
For 600 cfm, 5-1/2" ................................... 11578
For 900 cfm, 6-1/2" .................................... 00750

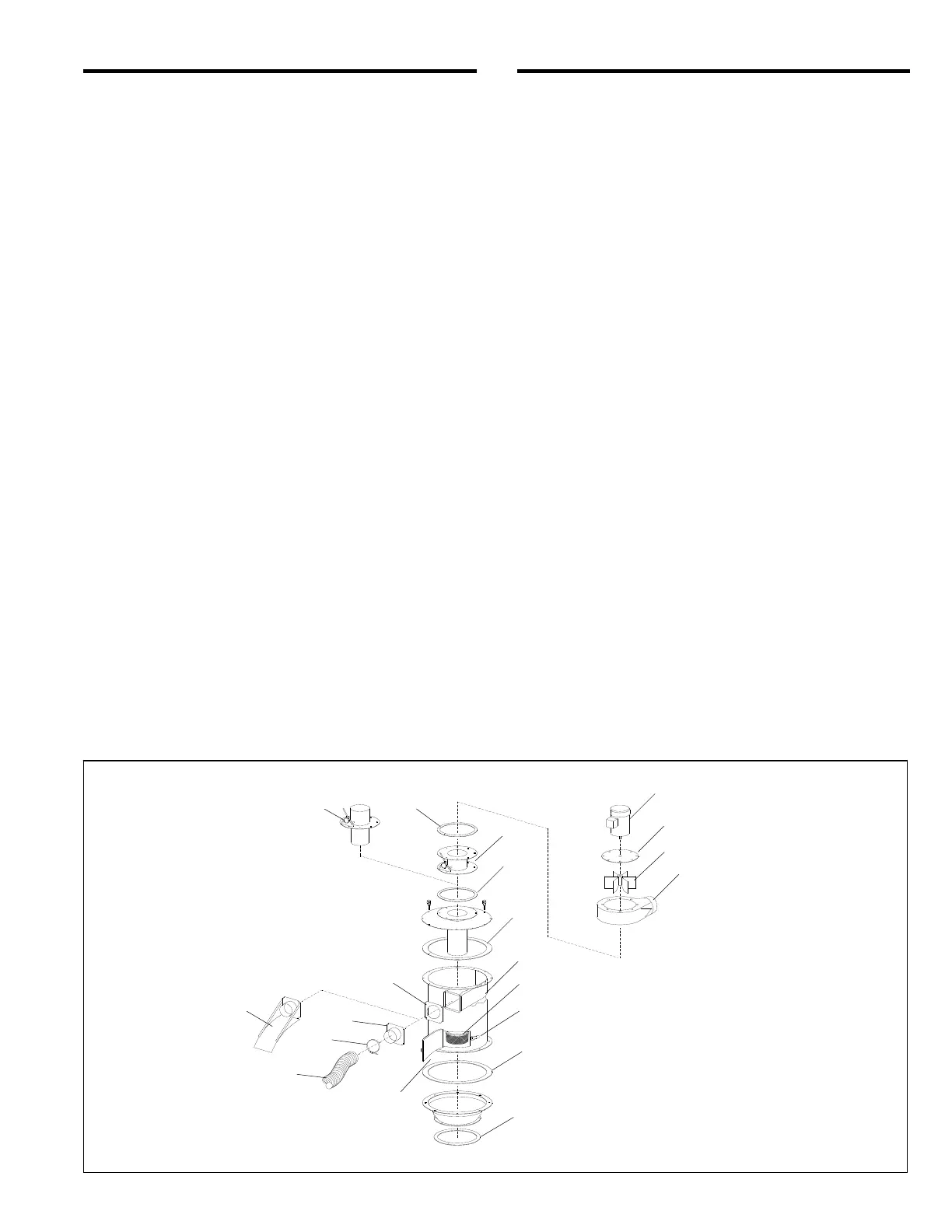

Figure 9
900 reclaimer body shown
600 bodies differ.
Parts rotated for clarity.
1
2
5
3
4
12
8
12
12
14
13
15
16
17
6
7
4
9
11
10
