Clevo N550RN - Removing the 3 G Module

Disassembly
Removing the 3G Module 2 - 15
2.Disassembly
Removing the 3G Module
3G Module Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 6).
2. Locate the module, it is visible at point
(Figure 10a).
3. Carefully disconnect the cables & , and then remove the screw from the module
(Figure 10b).
4. The module will pop-up
(Figure 10c).
5. Lift the module up and off the computer
(Figure 10d).

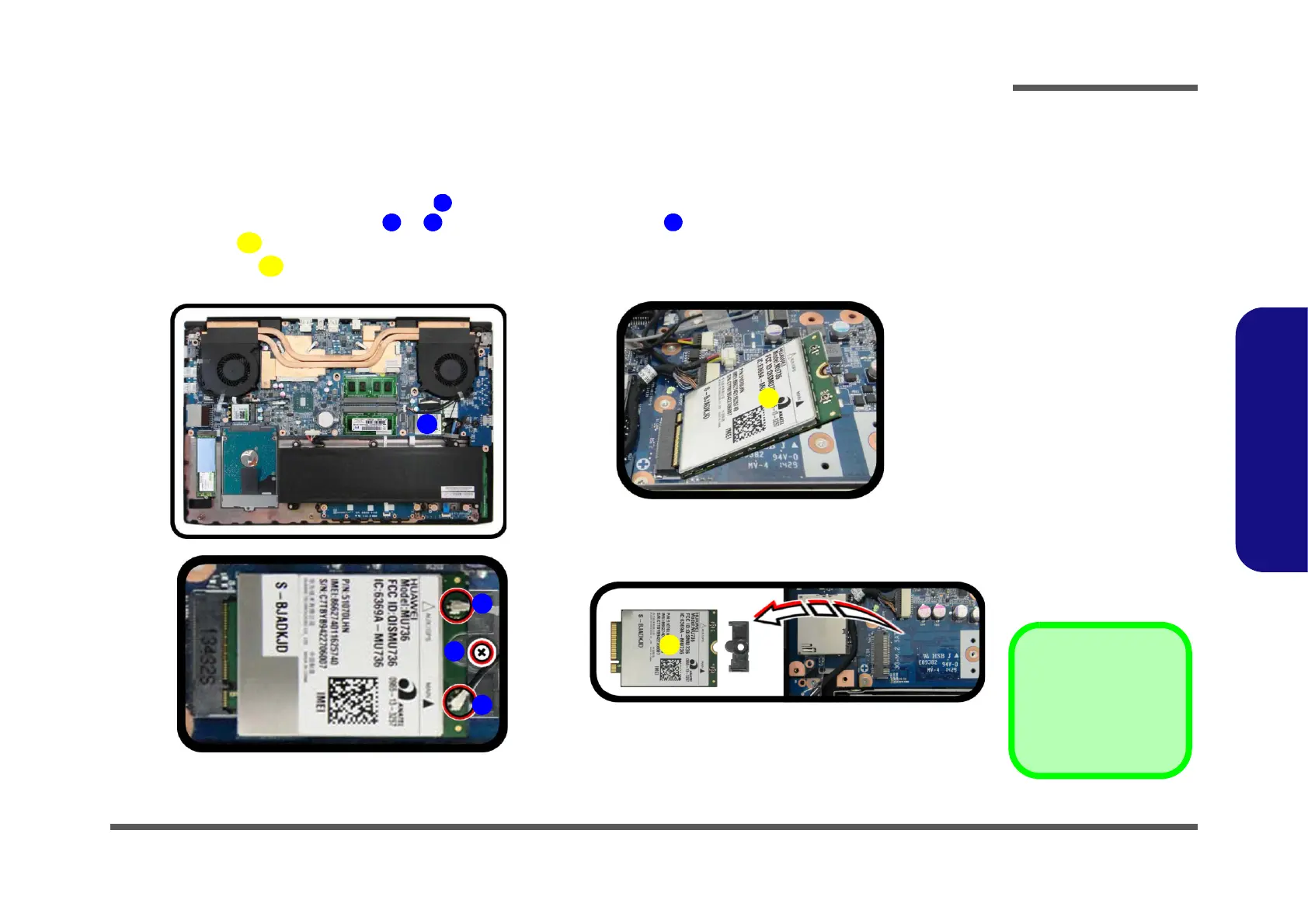

Figure 10
3G Module Removal
a. Locate the module.
b. Disconnect the cables and
remove the screw.
c. The module will pop-up.
d. Lift the module up off the
socket.
1
2
3
4
5
5
a.
b.
1
2
5
c.
3
4
5
d.

5. 3G Module
•1 Screw
