Mainboard Overview - Bottom (Connectors)

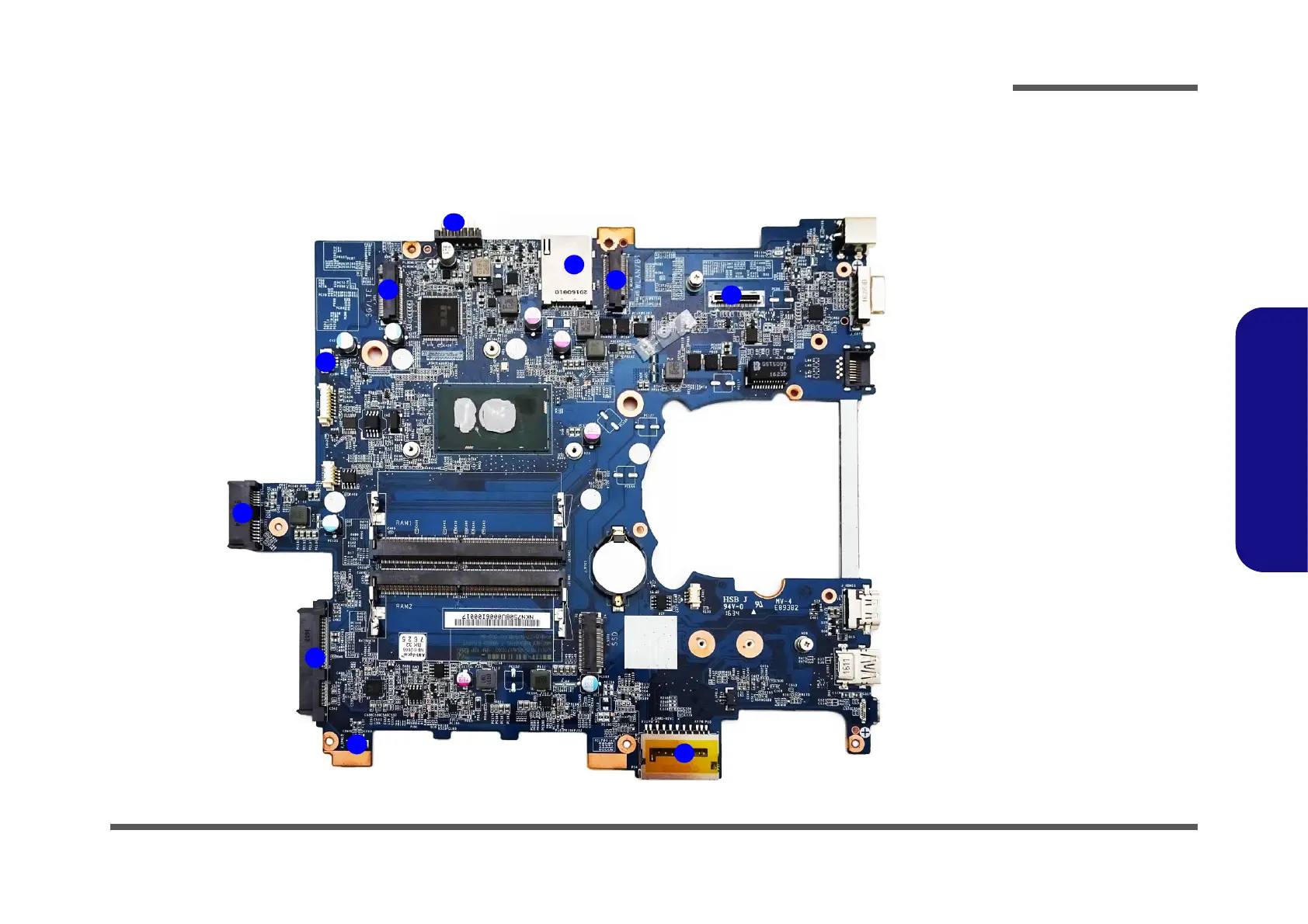

Figure 10
Mainboard Bottom
Connectors
1. 3G/4G Card
Connector
2. LID Connector
3. ODD Connectort
4. HDD Connector
5. Speaker Connector
6. Multi-in-1 Card
Reader
7. LCD Cable
Connector
8. WLAN Connector
9. SIM Card Reader
10.Battery Connector
10
1
2
4
6
7
3
5
8
9
