Clevo N750BU - Removing the 3 G Module

Disassembly
Removing the 3G Module 2 - 15
2.Disassembly
Removing the 3G Module
3G Module Removal Procedure
1. Turn off the computer, turn it over to remove the battery (page 2 - 5) and bottom cover (page 2 - 7).
2. The module will be visible at point on the mainboard (Figure 9a).
3. Carefully disconnect the cables & , and then remove the screw from the module
(Figure 9b).
4. The module will pop-up (Figure 9c).
5. Lift the module up and off the computer (Figure 9d).
1
2
3
4
5
5
b.
c.
a.
2
1
5
3
4
5
d.

3.M2 SATA-1 Module
•1 Screw
Figure 9

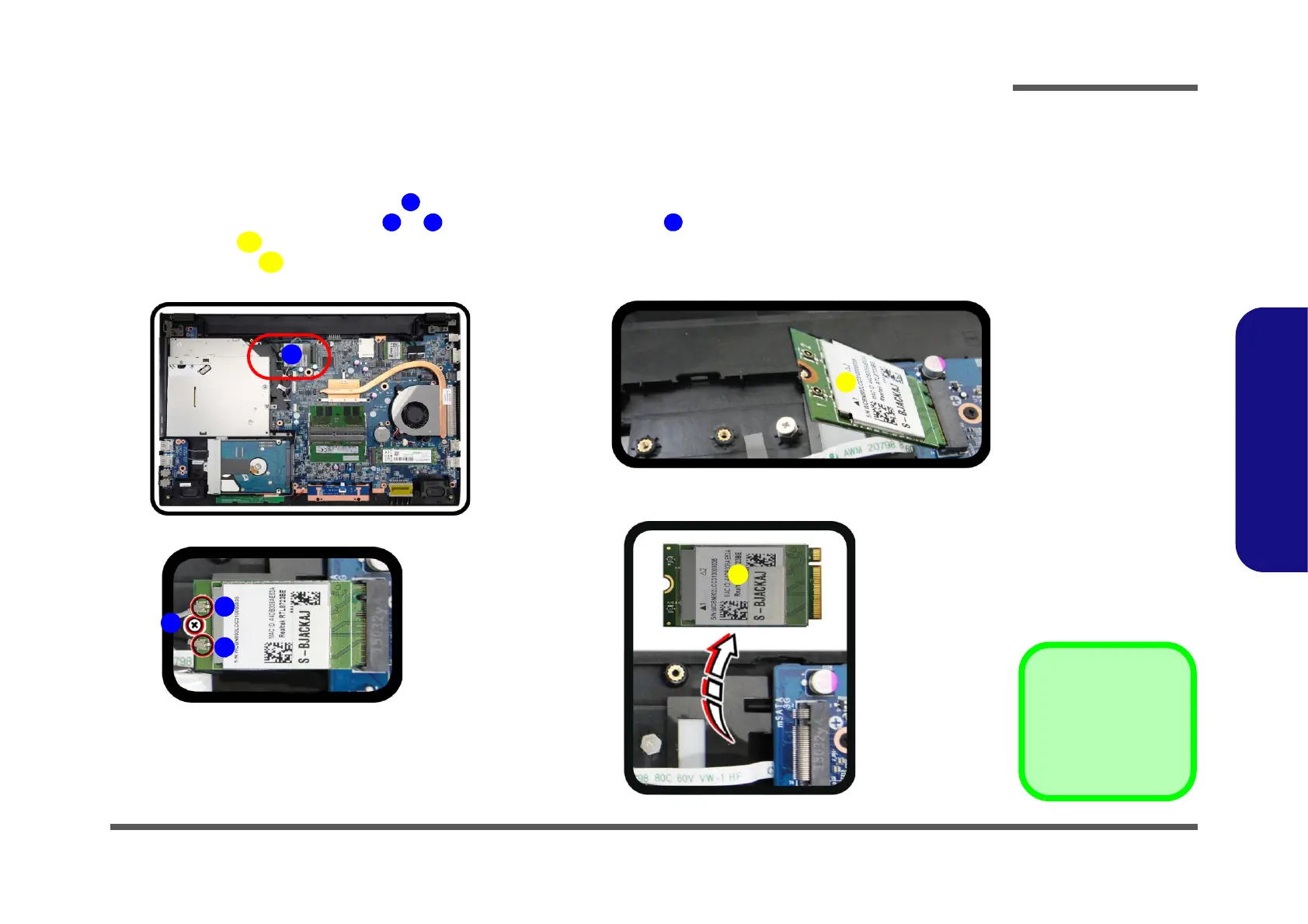

3G Module Removal
a. Locate the module.
b. Disconnect the cables
and remove the screw.
c. The module will pop up.
d. Lift the module up and
off the socket
