Disassembly
Removing the CCD 2 - 17
2.Disassembly
4. Disconnect the cable (Figure 11f).
5. Remove the CCD module (Figure 11g).
6. Reverse the process to install a new CCD module.
5
6
d.
c.
6
5


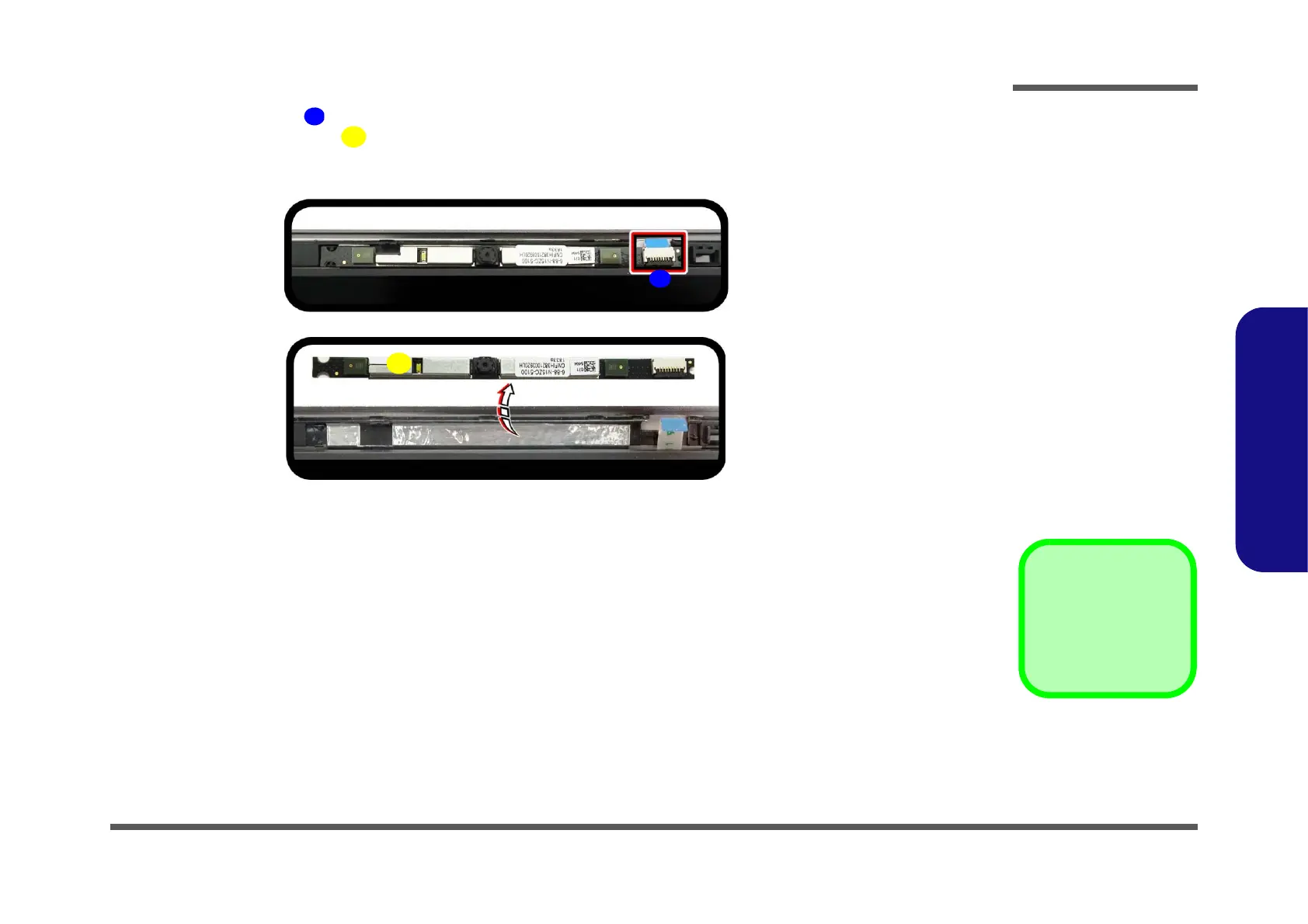

6. CCD Module
Figure 11
CCD Removal
(cont’d.)
c. Disconnect the cable.
d. Remove the CCD mod-
ule.
