Disassembly
2 - 8 Removing and Installing the Hard Disk Drive
2.Disassembly
Hard Disk Installation Process
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Insert the HDD-2 assembly (if available) in the direction of the arrow
to install the it (Figure 3a).
3. After installing HDD-2 assembly, place the rubber foam insert
as shown (Figure 3b).
4. Insert the HDD-1 assembly in the direction of the arrow
to install it (Figure 3c).
5. Replace the hard disk bay cover and screws (see page 2 - 6).

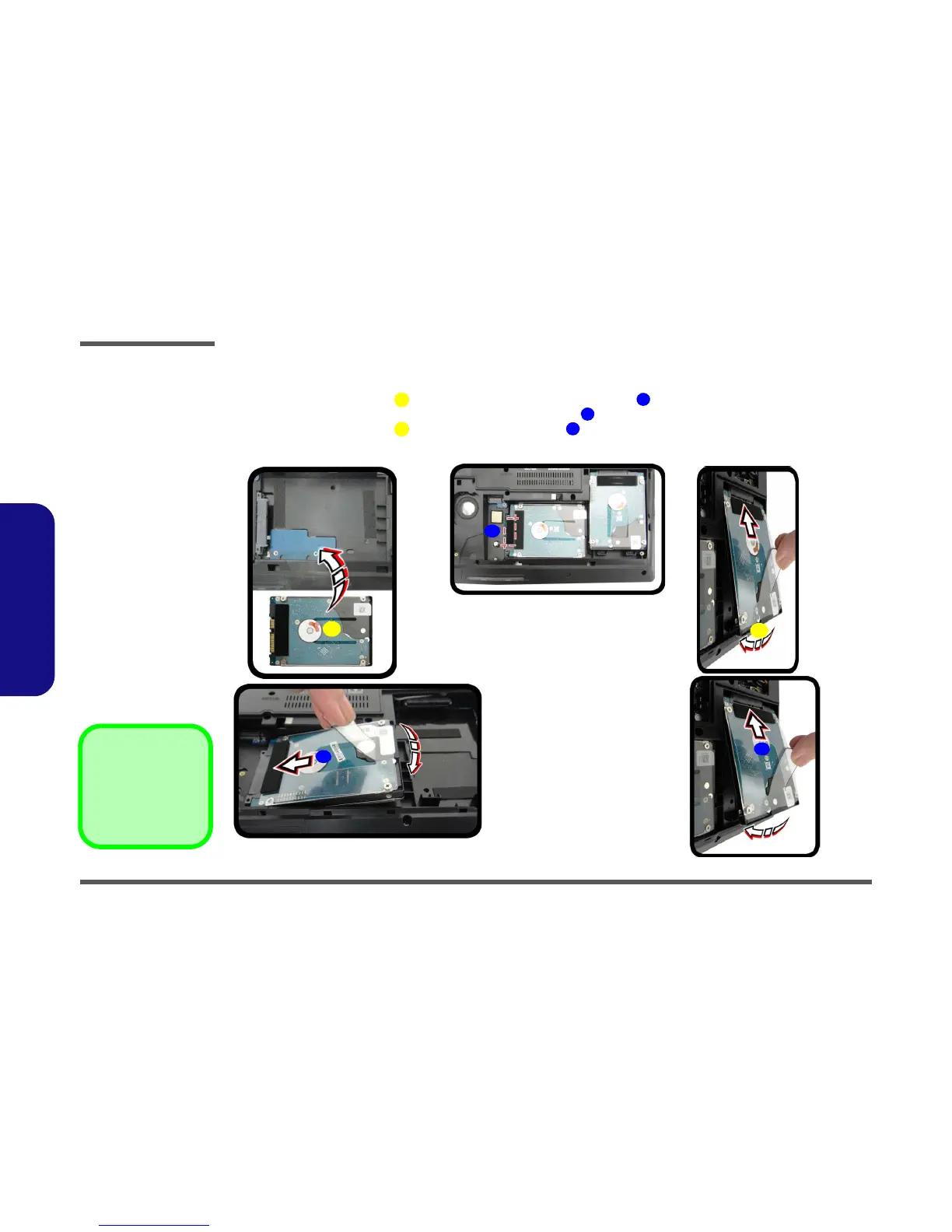

Figure 4
HDD Assembly
Installation
a. Insert the HDD-2 assem-
bly in the direction of the
arrow to install the hard
disk assembly.
b. Place the rubber foam in-
sert as shown
c. Insert the HDD-1 assem-
bly in the direction of the
arrow to install the hard
disk assembly.
1. HDD-1 Assembly
4. HDD-2 Assembly
