Clevo P870KM

Disassembly
2 - 6 Removing the Battery
2.Disassembly
5. Carefully remove screws - (Figure 2b).
6. Lift the battery off the computer (Figure 2e
).
7. Reinsert the bottom case starting from point
as shown (Figure 2f) to avoid damaging the rear eSATA/USB 3.0
port. Tighten the screws to secure the bottom case in place.
13
16
17
18

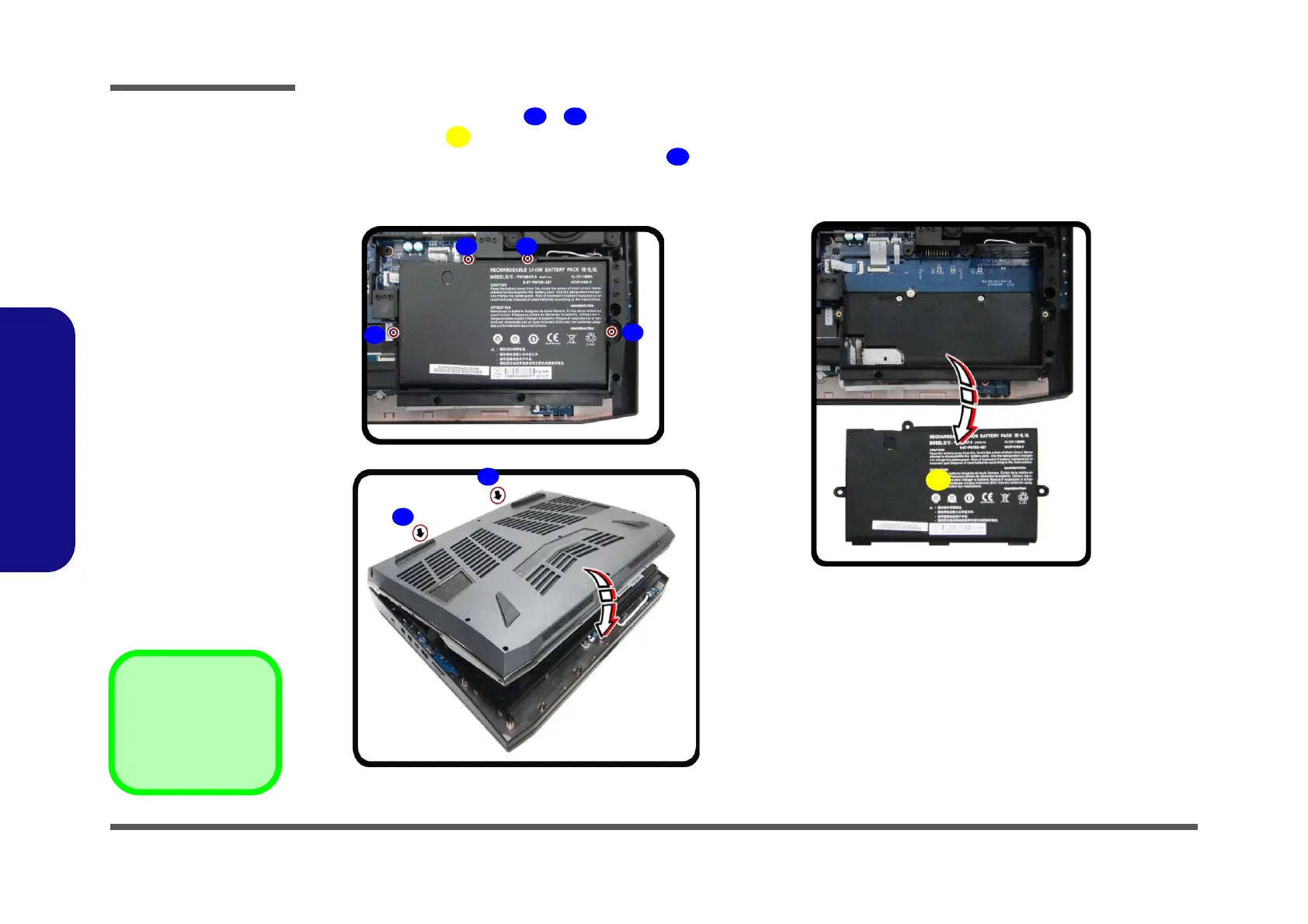

Figure 2
Battery Removal
(cont’d.)
d. Remove the screws.
e. Lift the battery off the
computer.
f. Reinsert the bottom case
and tighten the screws.
d.
e.
17
13
14
16
15
18
f.
18

17. Battery
•4 Screws
