Clevo P870KM

Disassembly
2 - 22 Removing the WiGig Module
2.Disassembly
Removing the WiGig Module
1. Turn off the computer, remove the battery (page 2 - 5) and the keyboard (page 2 - 12).
2. The module will be visible at point under the keyboard (Figure 16a).
3. Carefully disconnect cables - , then remove screw from the module socket (Figure 16b).
4. The module will pop-up (Figure 16c).
5. Lift the module (Figure 16d) up and off the computer.
.
1
2
4
5
6
6
b.
a.
d.
2
3
6
c.
5
1
4

5. WiGig Module
•1 Screw
Figure 16
WiGig Module
Removal

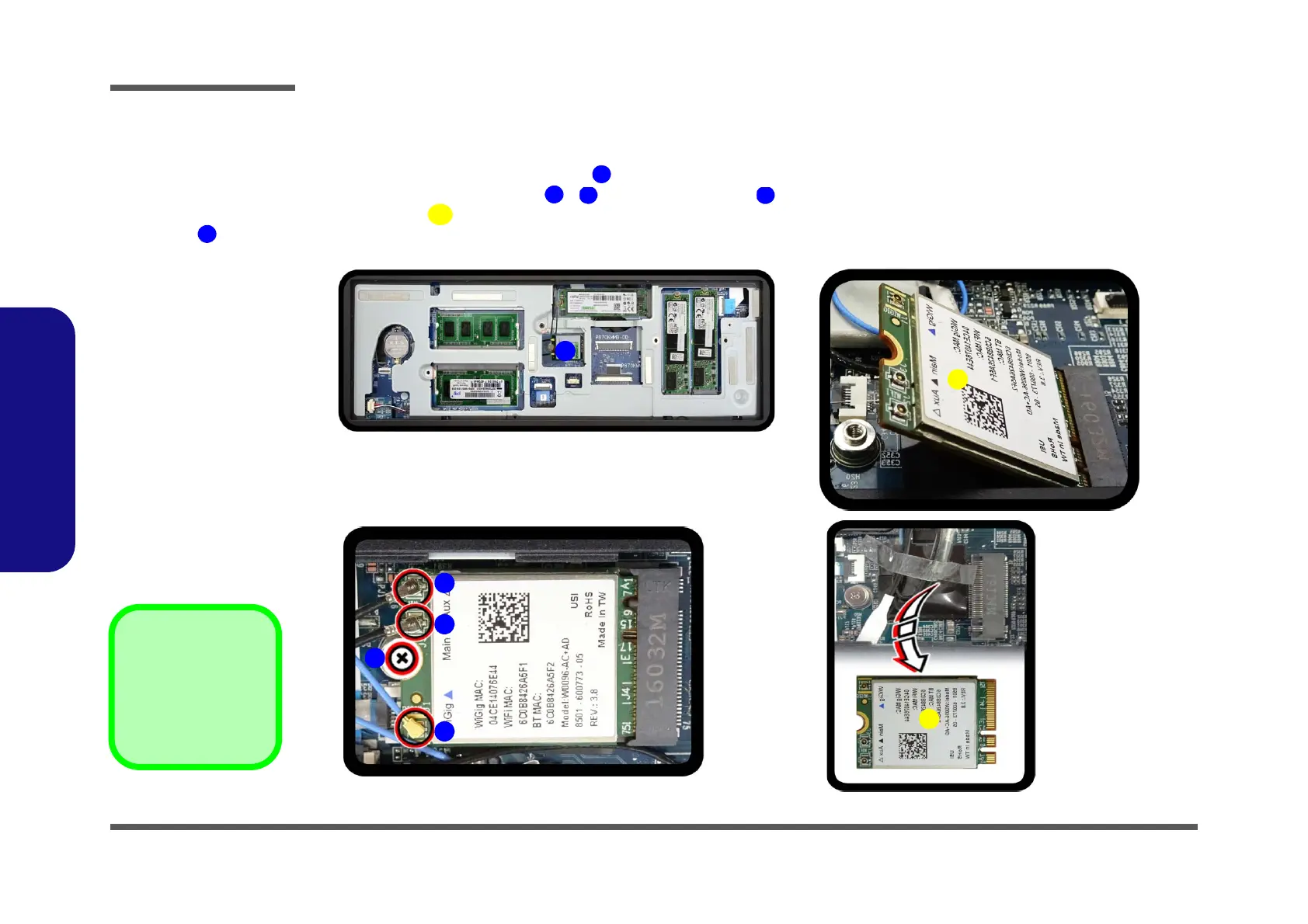

a. The module will be visi-
ble at point under the
keyboard
b. Disconnect the cables
and remove the screw.
c. The module will pop up.
d. Lift the module out.
