Disassembly
Removing and Installing the Processor 2 - 19
2.Disassembly
Processor Installation Procedure
1. Insert the CPU ; pay careful attention to the pin alignment (Figure 14a), it will fit only one way (DO NOT FORCE
IT!).
2. Move the bracket and latch fully in the direction indicated to lock the CPU.
3. Apply the thermal grease to the top of the CPU as shown (Figure 14b).
4. Insert the heat sink unit
as indicated in Figure 14c.
5. Tighten the CPU heat sink screws in the order -
(the order as indicated on the label and Figure 14d).
6. Replace the CPU fan, component bay cover and tighten the screws (page 2 - 17).
b.
c. d.
C
a.
E
4
1
3
Note:
Tighten the screws in
the order 1-2-3-4 as in-
dicated.
2
A
B
D
C

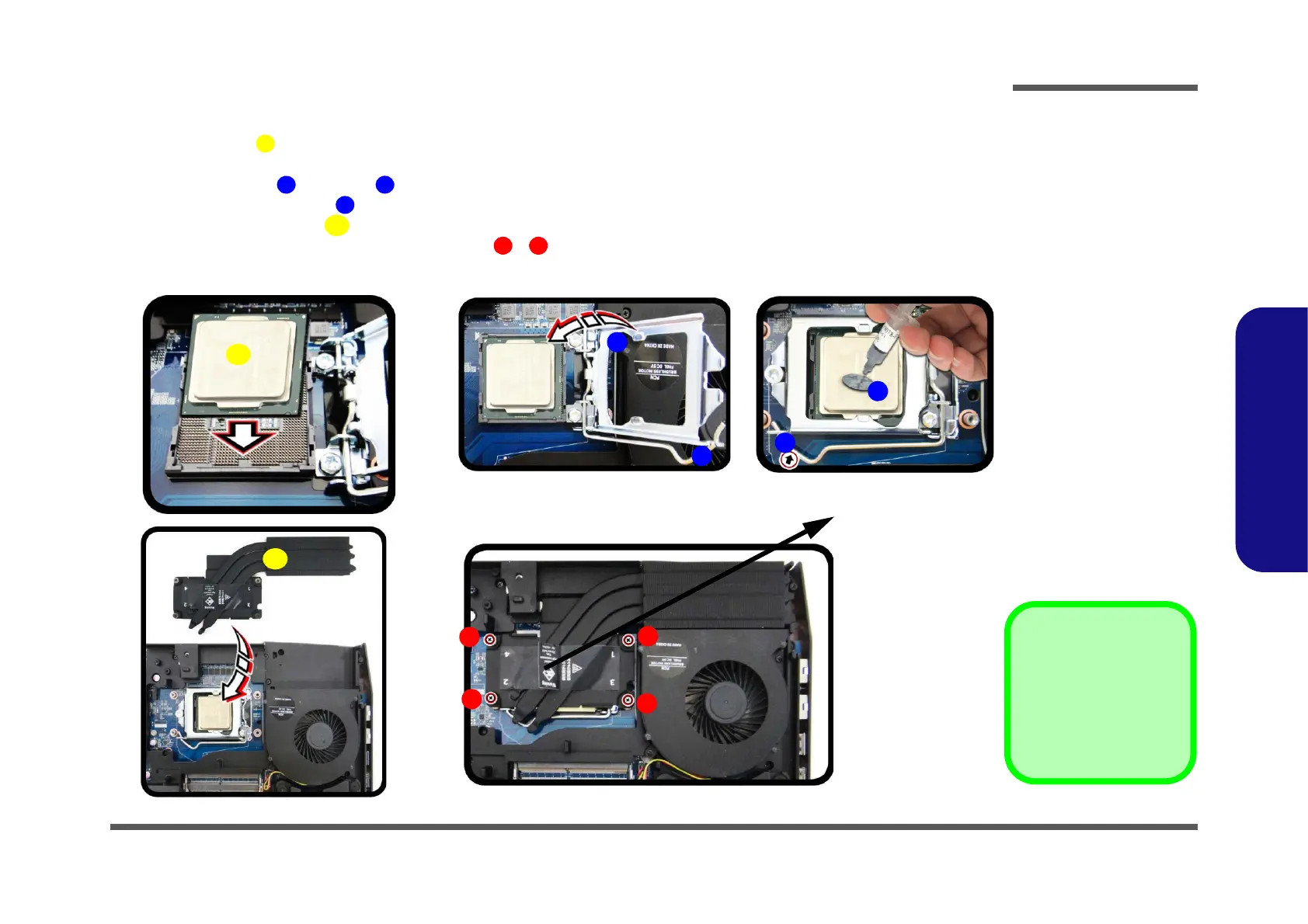

Figure 14
Processor
Installation
a. Insert the CPU.
b. Move the latch and
bracket fully in the direc-
tion indicated to lock the
CPU. Apply thermal
grease.
c. Insert the heat sink.
d. Tighten the screws.
A. CPU
E. Heat Sink
•4 Screws
To Next Page
