Clevo P955RT1 - System Map: Front, Left & Right Views

11
English
System Map: Front, Left & Right Views
3
4
5
1
Front
Left
Right
11
8
12
10
2
7

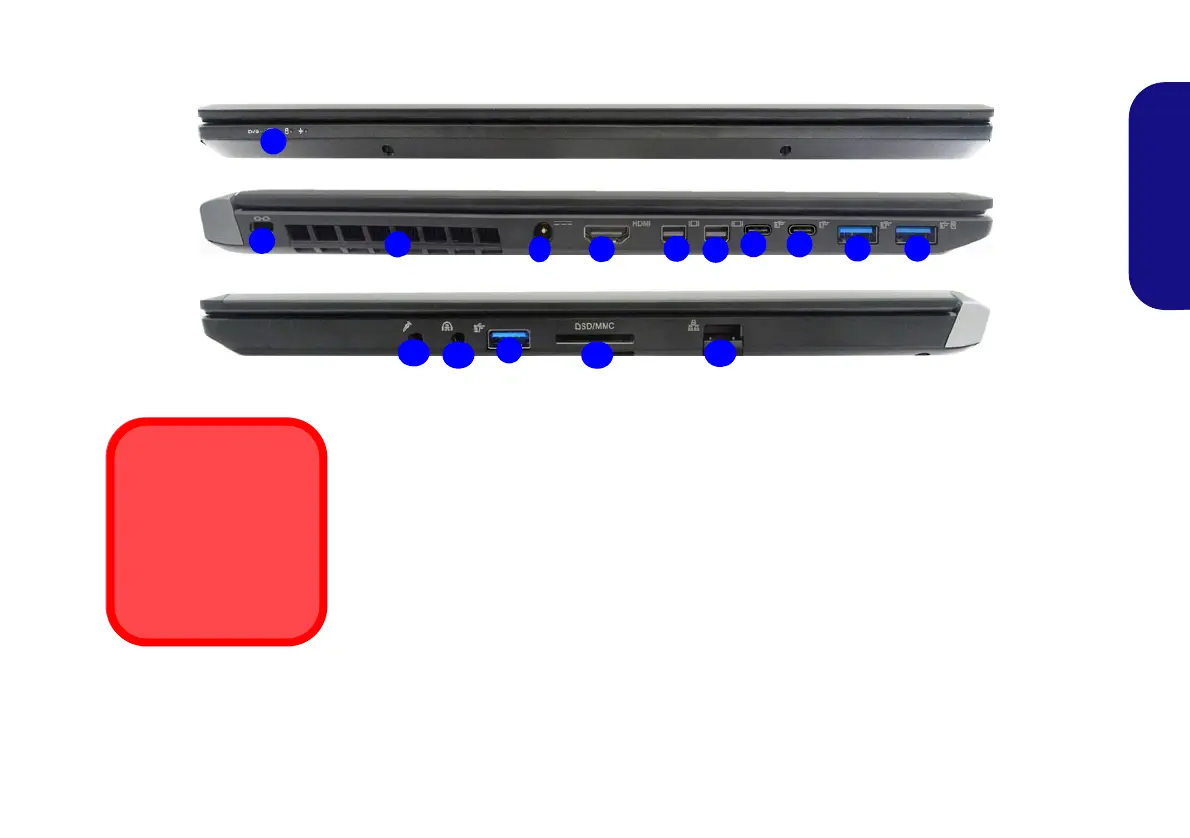

Figure 5 - Front, Left & Right Views
1. LED Indicators
2. Security Lock Slot
3. Vent
4. DC-In Jack
5. HDMI-Out Port
6. Mini DisplayPorts (1.3)
7. USB 3.1 Gen 2 Type-C Ports
8. USB 3.0 (USB 3.1 Gen 1) Type-A Ports
9. *Powered USB 3.0 (USB 3.1 Gen 1)
Type-A Port
*Toggle power to this port by using Fn +
Power Button (see Table 1 on
page 8).
10. Microphone-In Jack
11. 2-In-1 Audio Jack
(Headphone & S/PDIF)
12. Multi-in-1 Card Reader
13. RJ-45 LAN Jack
9
6
7
8
13
6

Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks any vent while
the computer is in use.
