Clevo PD50PNT - Chapter 1: External Locators; Top View Component Identification

Introduction
1 - 4 External Locator - Top View with LCD Panel Open
1.Introduction

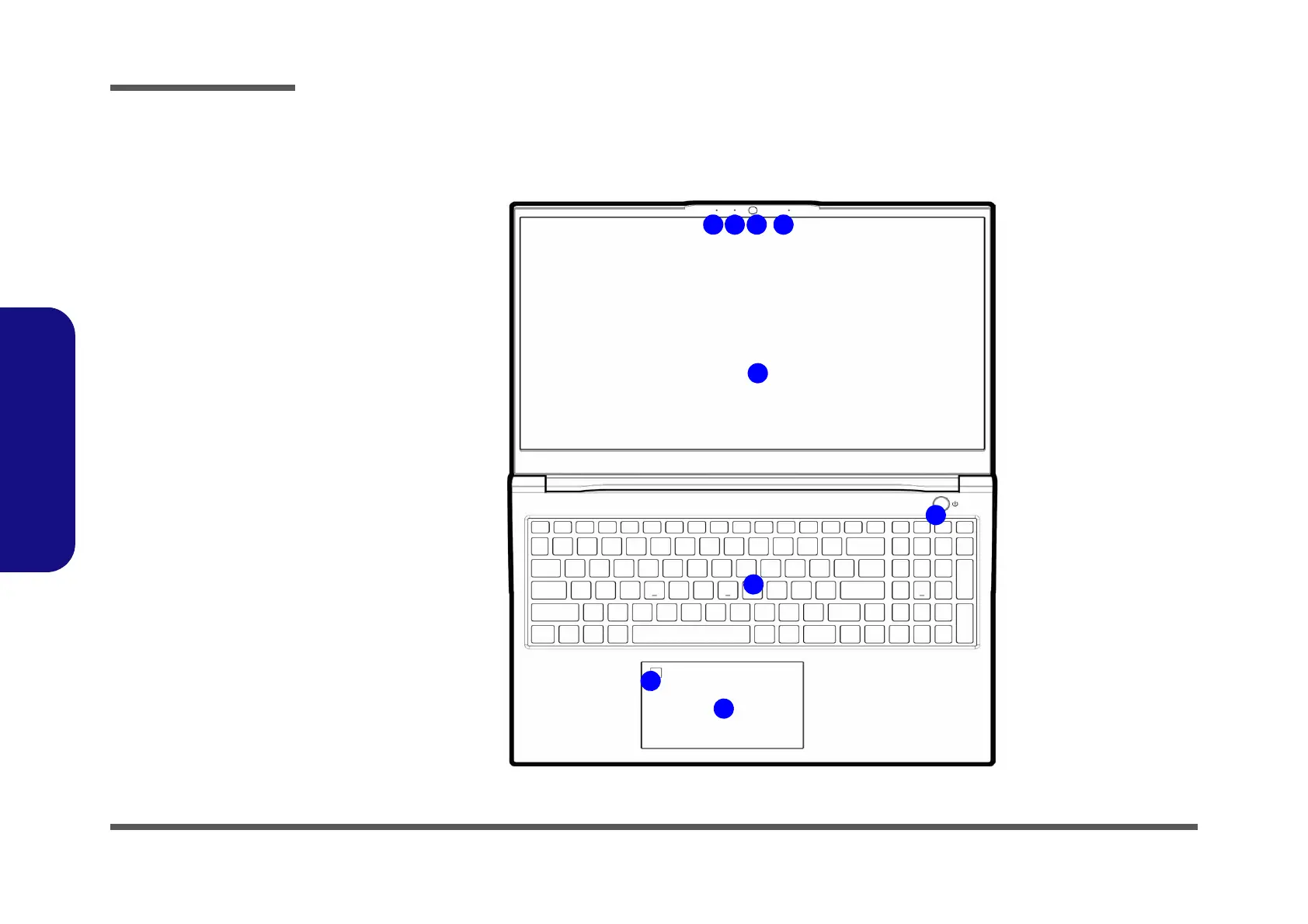

External Locator - Top View with LCD Panel Open
Figure 1
Top View
1. Webcam
2. *Camera LED
*When the PC
camera is in use,
the LED will be
illuminated.
3. Built-In Array
Microphone
4. Display
5. Power Button
6. Keyboard
7. Fingerprint Sensor
(Optional)
8. Touchpad &
Buttons
2 1
8
6
5
4
33
7
