Removing the Hinge Cover
1. Turn off the computer, remove the battery (page 2 - 5) and heatsink.
2. The hinge cover will be visible at point .
3. Remove the screw
(Figure 14a).
4. Slide the hinge cover out to a short distance
(Figure 14b).
5. Carefully lift the hinge cover upward by 10-20 degrees as shown to remove it from the computer.
1
2
3
4
a.
1
2
4
1
2
4
3
b.
3

3.Hinge Cover
•1 Screw

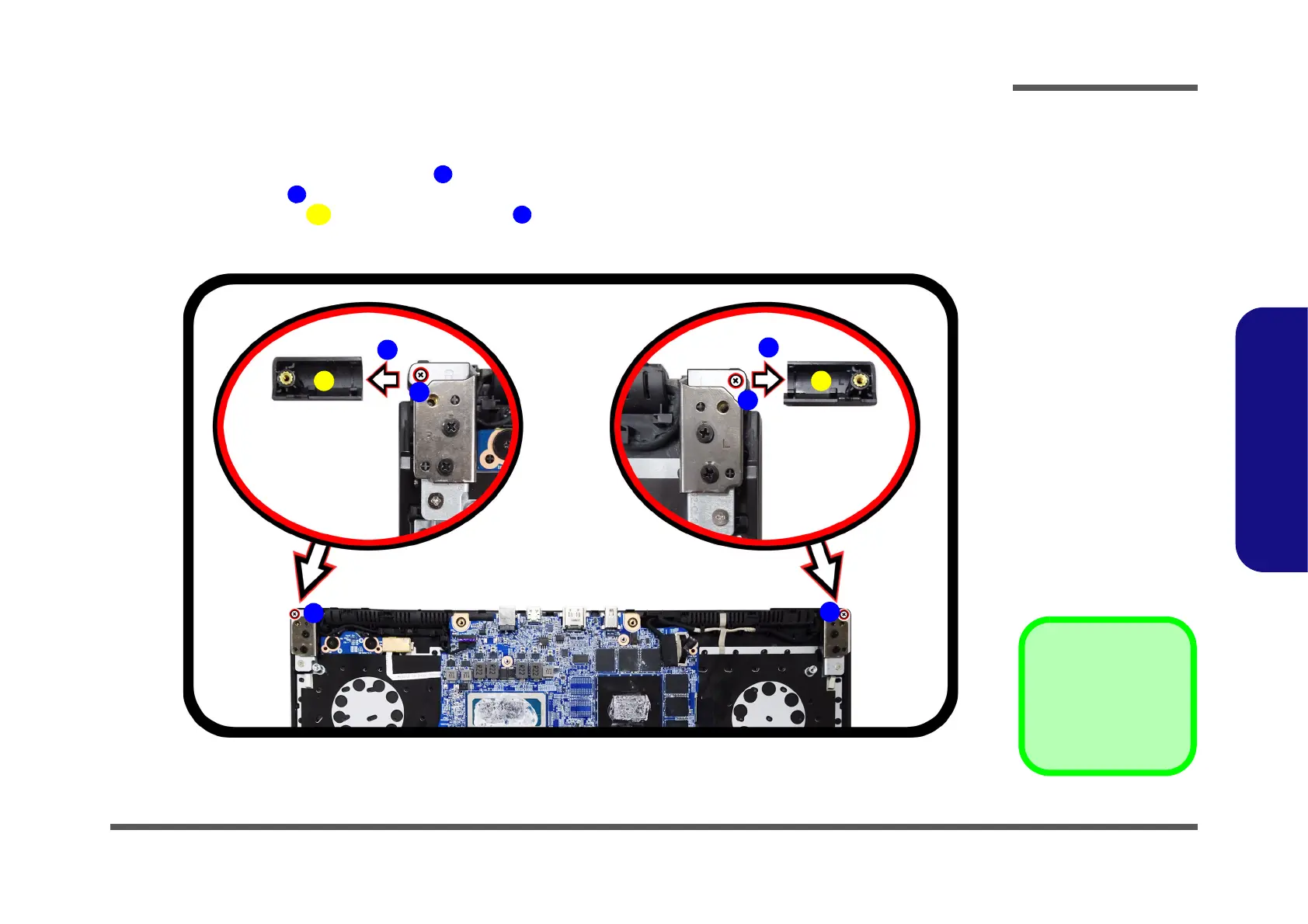

Figure 14
Hinge Cover
Removal
a. Remove the screw.
b. Slide the hinge cover out
to remove it.
