Clevo W251EFQ - System Map: Front, Left, Right, Rear & Bottom Views (Models a & C)

13
English
System Map: Front, Left, Right, Rear & Bottom Views (Models A
& C)
1
Front
16
7
Bottom
18
19
7
19

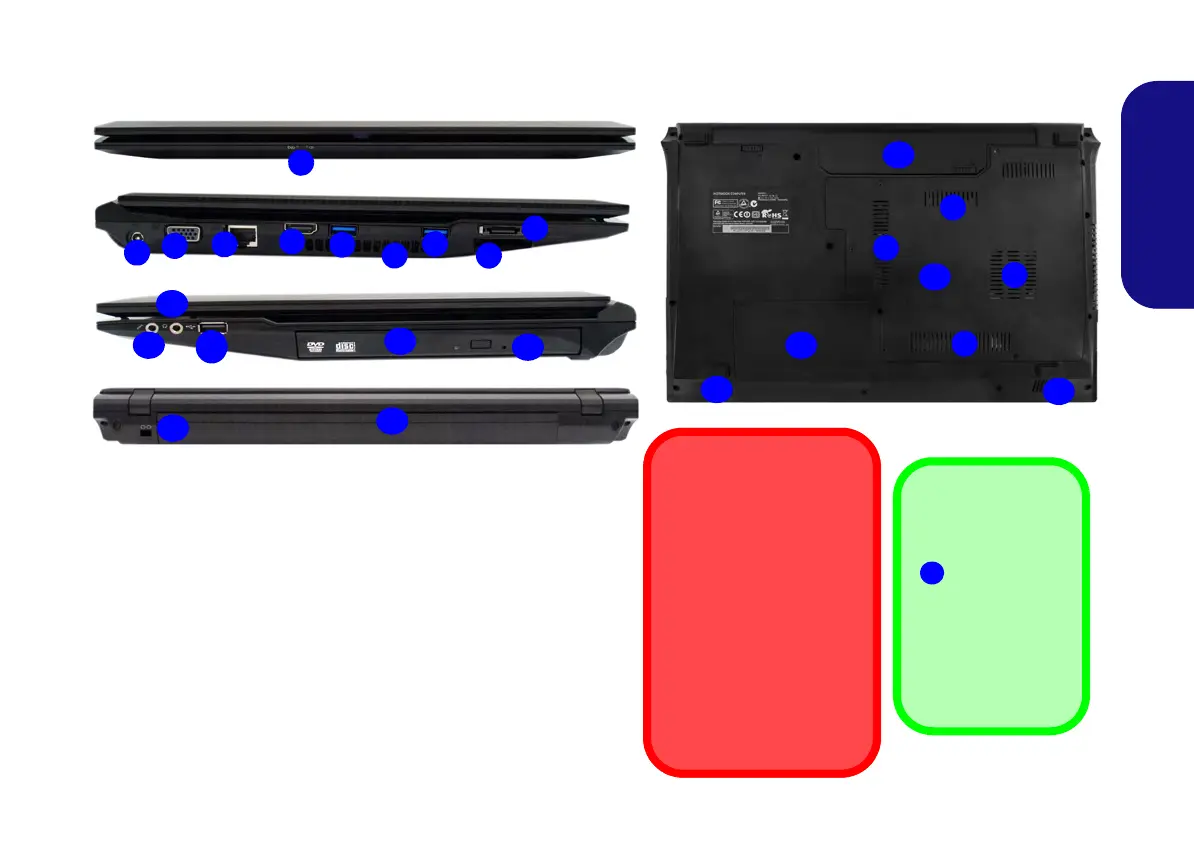

Figure 6
Front, Left, Right, Rear & Bottom Views (Models A & C)
1. LED Power Indicators
2. DC-In Jack
3. External Monitor Port
4. RJ-45 LAN Jack
5. HDMI-Out Port
6. USB 3.0 Ports
7. Vent
8. Multi-in-1 Card Reader
9. e-SATA Port
10. Microphone-In Jack
11. Headphone-Out Jack
12. USB 2.0 Port
13. Optical Device Drive Bay
14. Emergency Eject Hole
15. Security Lock Slot
16. Battery
17. Component Bay Cover
18. Hard Disk Bay Cover
19. Speakers
2
7
8
4
6
3
Left
Right
5
Rear
10
13
11
14
12
9
16
6
15

USB 3.0 Port
The USB 3.0 ports
are colored
blue. USB 3.0 will
transfer data much
faster than USB
2.0, and is back-
wards-compatible
with USB 2.0.
6
17
7
7

Disc Emergency Eject
If you need to manually
eject a disc (e.g. due to
an unexpected power in-
terruption) you may push
the end of a straightened
paper clip into the emer-
gency eject hole. Do not
use a sharpened pencil
or similar object that may
break and become
lodged in the hole.
