Clevo W251HPQ - Mainboard Overview - Top (Connectors)

Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction
Mainboard Overview - Top (Connectors)

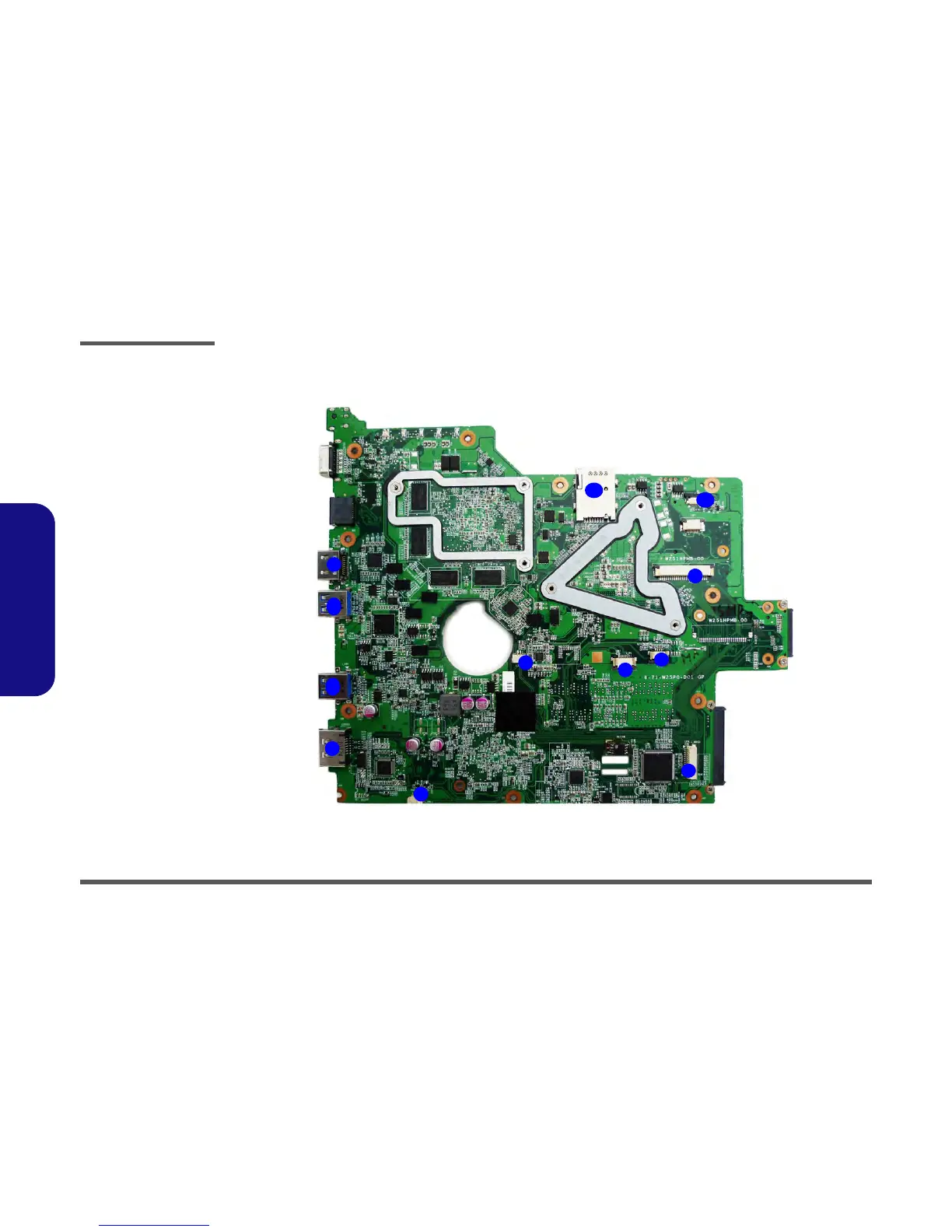

Figure 9
Mainboard Top
Connectors
1. HDMI-Out Port
2. USB Port 3.0
3. eSATA Port
4. Speaker Cable
Connector
5. Microphone
Cable Connector
6. Audio Board
Connector
7. TouchPad Cable
Connector 1
8. TouchPad Cable
Connector 2
9. Keyboard Cable
Connector
10.Switch Board
Cable Connector
11. SIMLOCK
7
1
2
8
9
3
5
6
10
2
4
11
