Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly

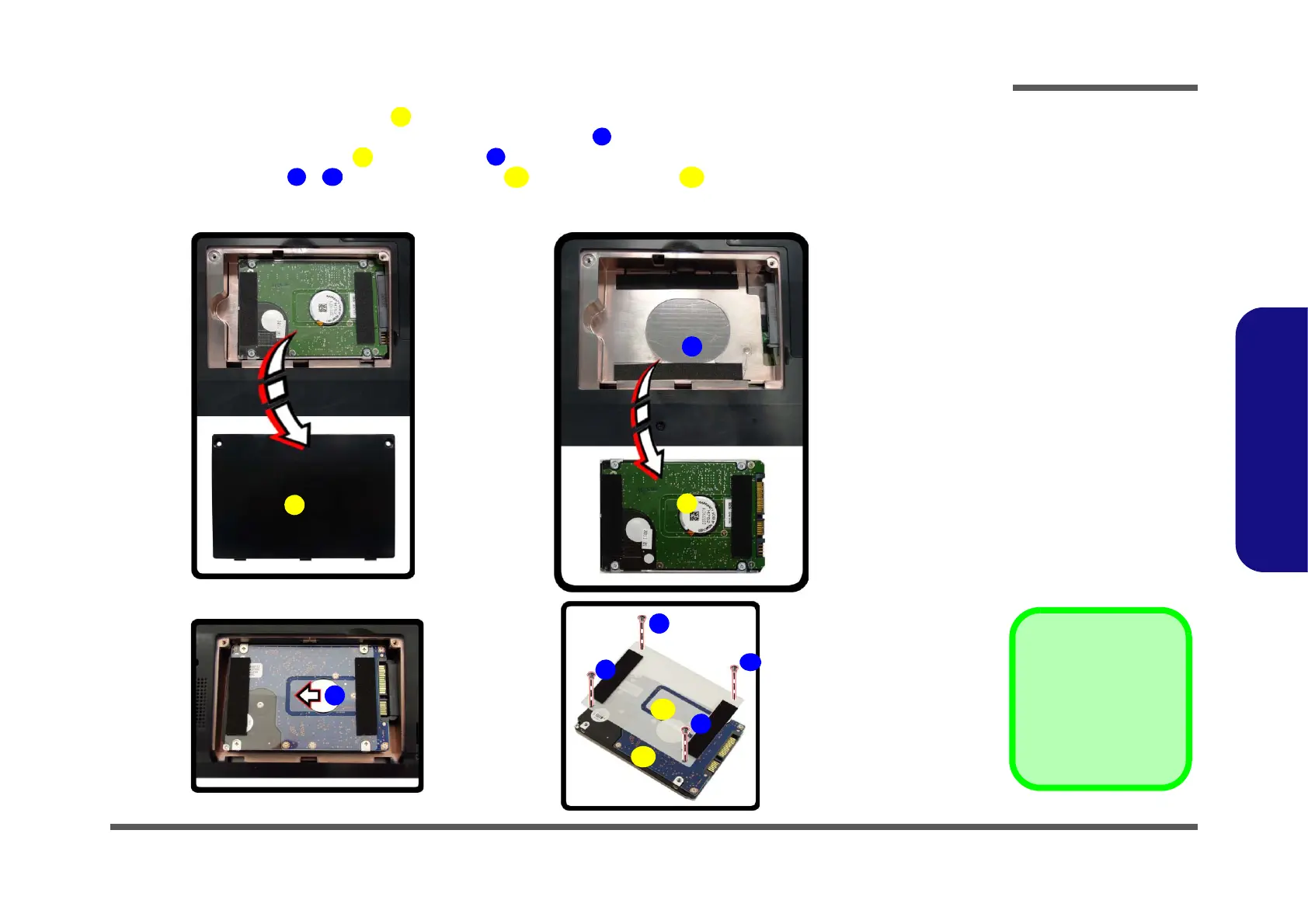

3. Remove the hard disk bay cover (Figure 3b).
4. Grip the tab and slide the hard disk in the direction of arrow (Figure 3c).
5. Lift the hard disk assembly out of the bay (Figure 3d).
6. Remove the screw - and the mylar cover from the hard disk
(Figure 3e).
7. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
6
3
4
6
5
6
7
10
11
12
4
b.
c.
6
9
d.
3
e.
11
8
7
12
5
10

3. HDD Bay Cover
5. HDD Assembly
11. Mylar Cover
12. HDD
•4 Screws
Figure 3
HDD Assembly
Removal (cont’d.)
b. Remove the HDD bay
cover.
c. Grip the tab and slide the
HDD assembly in the di-
rection of the arrow.
d. Lift the HDD assembly
out of the bay.
e. Remove the screws and
mylar cover.
