Removing the System Memory (RAM)

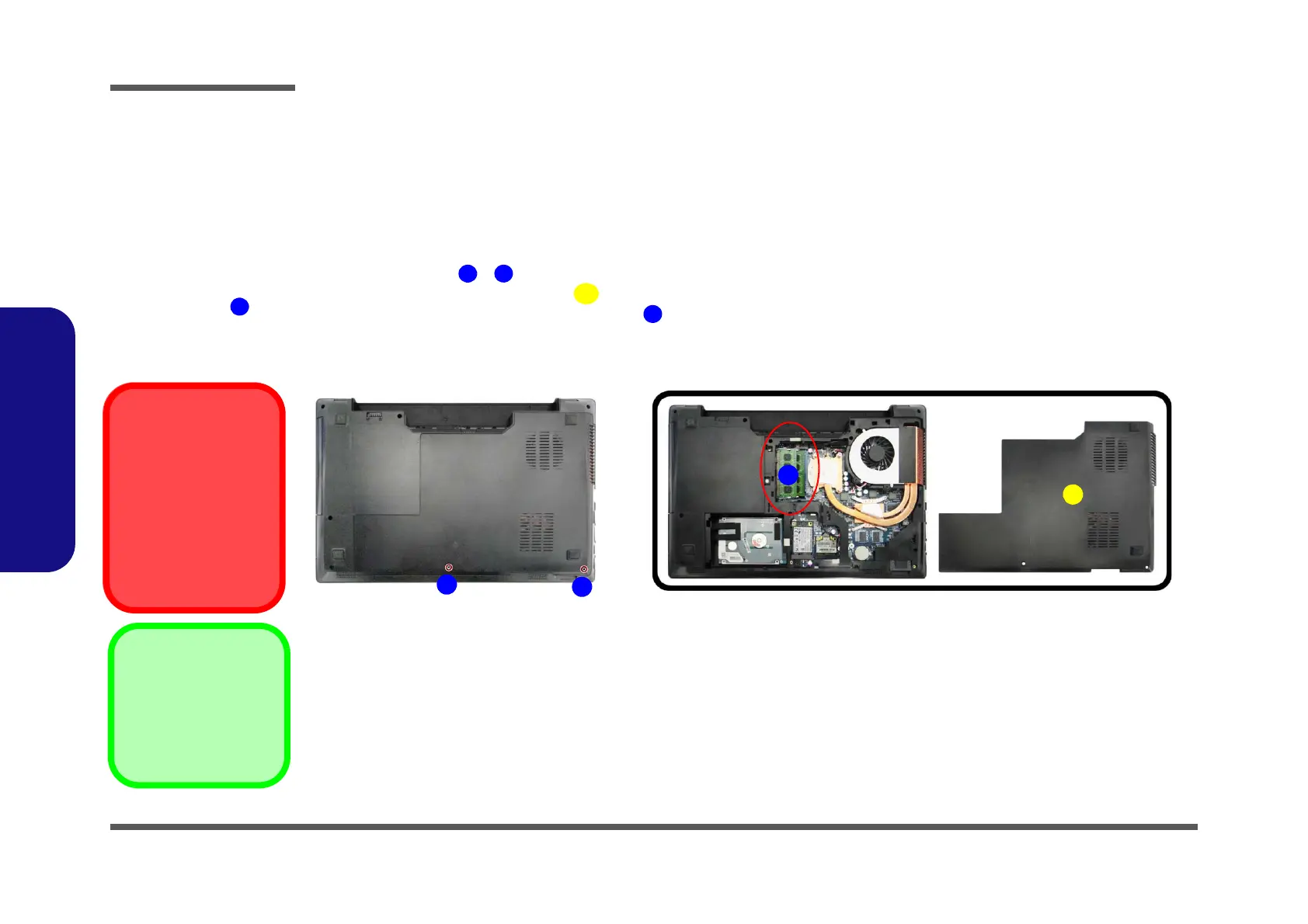

Figure 8
RAM Module
Removal
a. Remove the screws
from the component
bay cover.
b. Remove the compo-
nent bay cover. The
RAM modules will be
visible at point on
the mainboard.
Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module’s
performance.
The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
DDR3L up to 1600 MHz. The main memory can be expanded up to 16GB. The total memory size is automatically de-
tected by the POST routine once you turn on your computer.
Memory Upgrade Process
3. Component Bay Cov-
er
•2 Screws
1. Turn off the computer, turn it over, and remove the battery (page 2 - 5).
2. Remove screws
- from the component bay cover (Figure 8a).
3. Carefully remove the bay cover .
4. The RAM modules will be visible at point on the mainboard (Figure 8b
).
To Next Page
