Clevo W650SB - Removing and Installing a Processor

Disassembly
2 - 14 Removing and Installing a Processor
2.Disassembly
Removing and Installing a Processor
Processor Removal Procedure
1. Turn off the computer, turn it over, remove the battery (page 2 - 5) and the component bay cover (page 2 - 7).
2. The CPU heat sink will be visible at point (Figure 10a).
3. Loosen the CPU heat sink screws in the order
, , , , , , & (the reverse order as indicated on
the label (Figure 10b).
4. Carefully (it may be hot) remove the heat sink unit off the computer (Figure 10c
).
A
8
7
6
5
4
3
2
1
B
a.
b.
1
4
7
A
B
c.
6
3
2
58

B. Heat Sink
•8 Screws

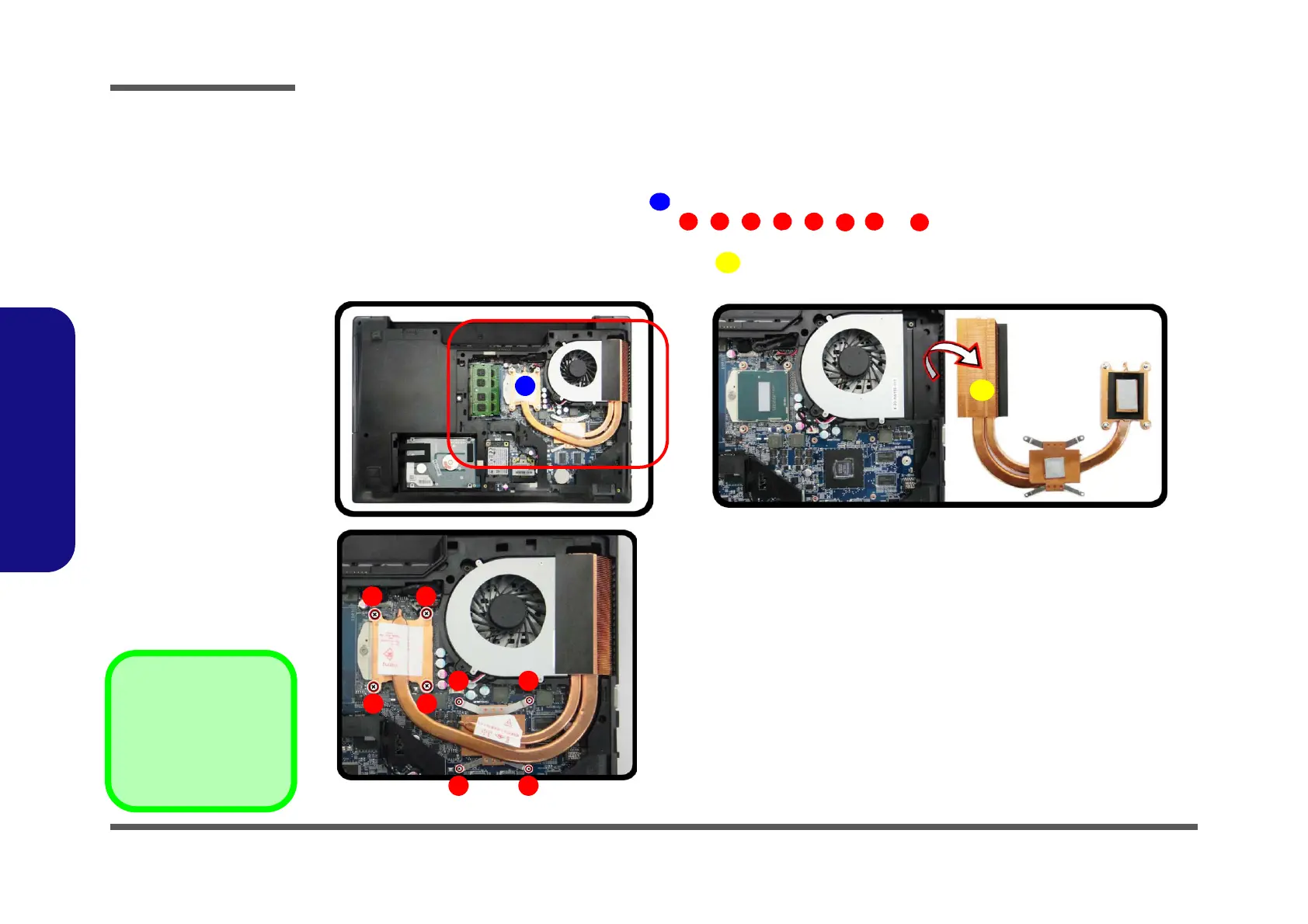

Figure 10
Processor Removal
a. Locate the CPU heat
sink.
b. Remove the screws.
c. Carefully remove the
heat sink unit.
