Disassembly
Removing and Installing a Processor 2 - 15
2.Disassembly
5. Turn the release latch towards the unlock symbol to release the CPU (Figure 11f).
6. Carefully (it may be hot) lift the CPU up and out of the socket (Figure 11g).
7. Reverse the process to install a new CPU.
8. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!)
d.
D
C
e.
C
Caution
The heat sink, and CPU area in
general, contains parts which are
subject to high temperatures. Allow
the area time to cool before remov-
ing these parts.

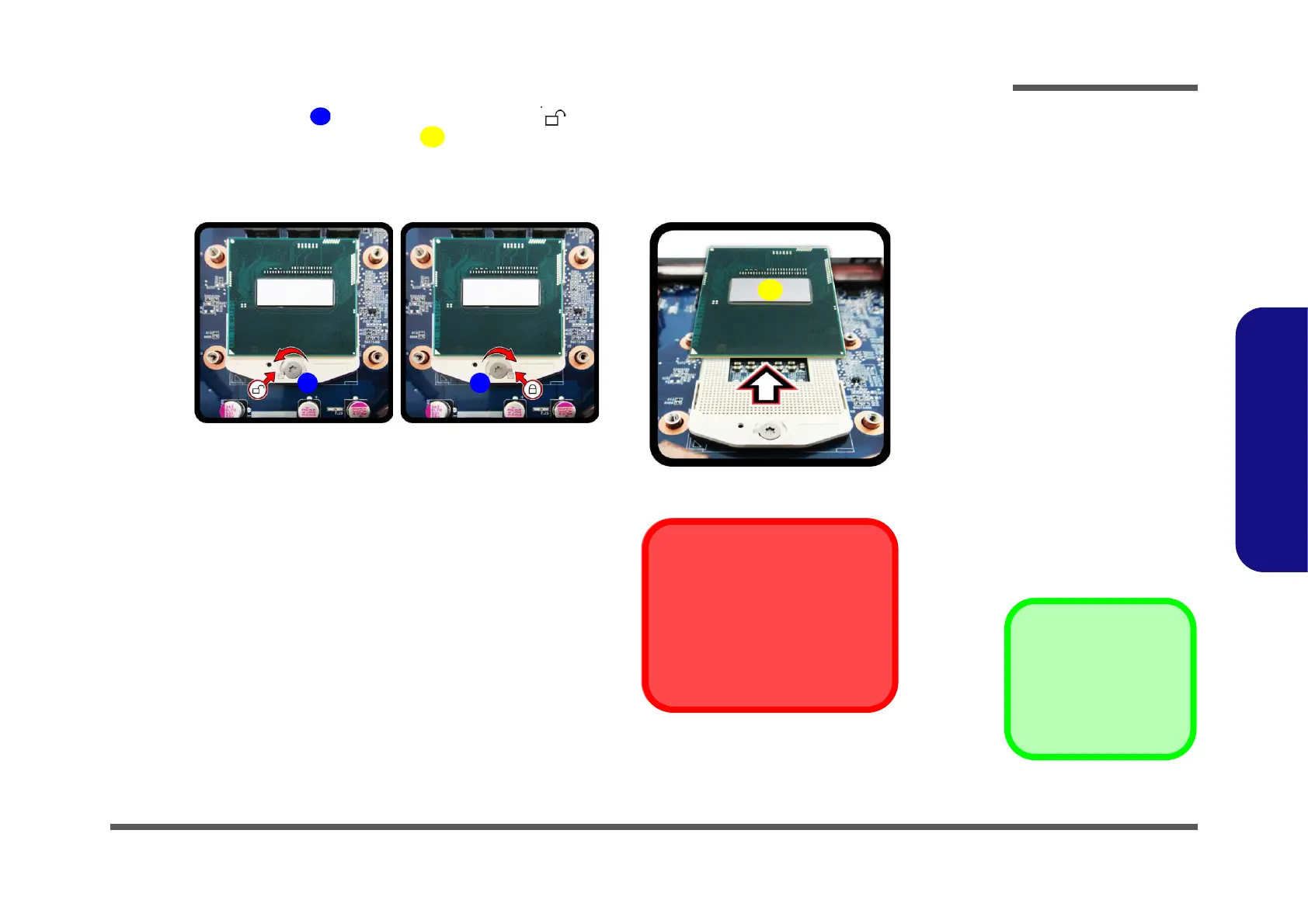

Figure 11
Processor Removal
(cont’d)
d. Turn the release latch to
unlock the CPU.
e. Lift the CPU out of the
socket.
To Next Page
