Disassembly
2 - 16 Removing and Installing a Processor
2.Disassembly
Processor Installation Procedure
1. Insert the CPU (Figure 12a), and pay careful attention to the pin alignment; it will fit only one way (DO NOT
FORCE IT!), and turn the release latch towards the lock symbol (Figure 12b).
2. Remove the sticker (Figure 12c) from the heat sink unit (if it is a new unit).
3. Insert the heat sink as indicated in Figure 12c.
4. Tighten the CPU heat sink screws in the order
, , , , , , & (the order as indicated on the
label and Figure 12d).
5. Replace the CPU fan, component bay cover and tighten the screws (page 2 - 14).
1
4
76
3
2
58
b.
B
a.
D
Note:
Tighten the screws in
the order as indicated
on the label.
A
c.
d.
C
D

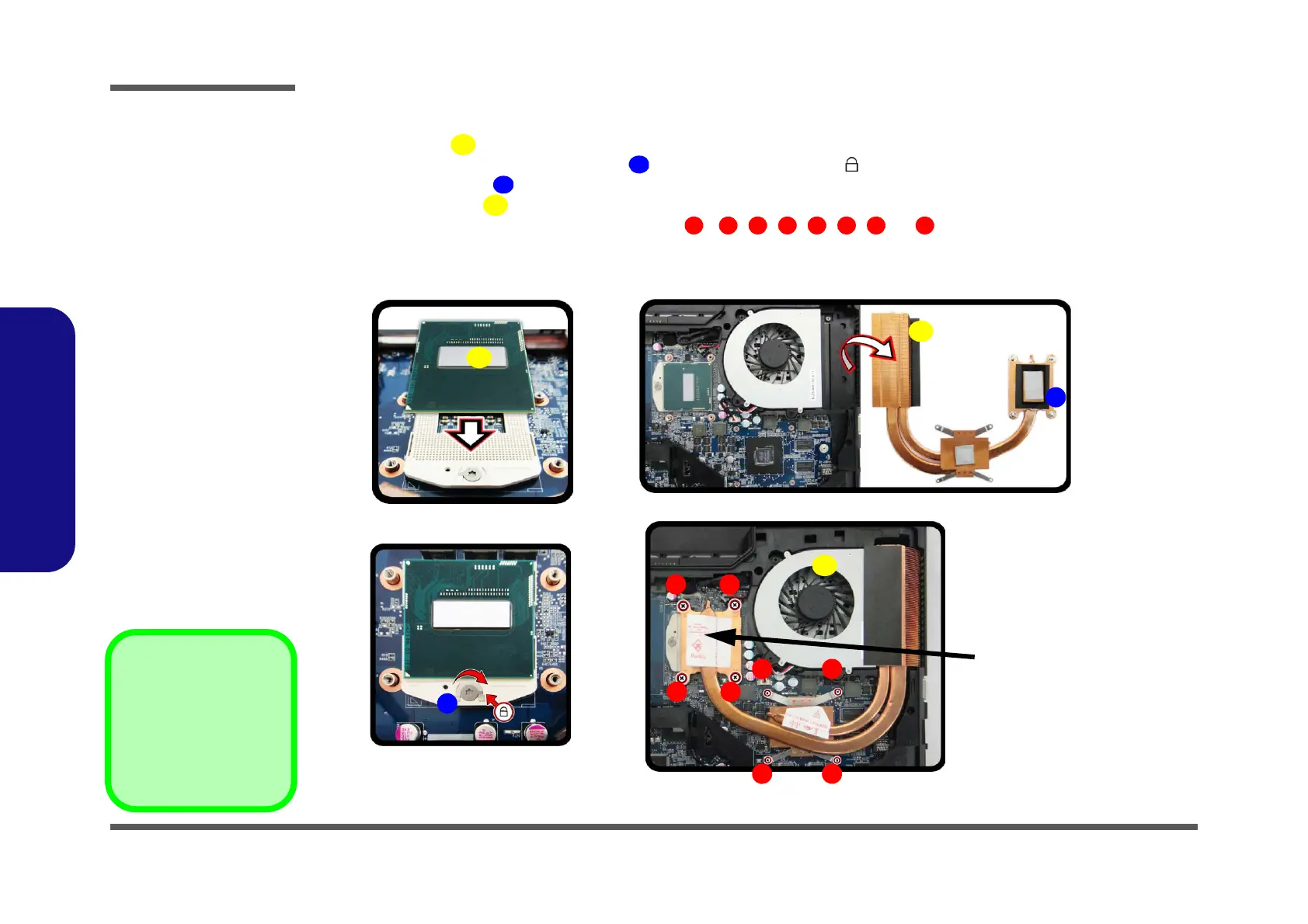

Figure 12
Processor
Installation
a. Insert the CPU.
b. Turn the release latch to-
wards the lock symbol.
c. Insert the heat sink.
d. Tighten the screws.
A. CPU
D. Heat Sink
•4 Screws
