Clevo W650SB User Manual

Disassembly
Removing the 3G Module 2 - 19
2.Disassembly
Removing the 3G Module
1. Turn off the computer, turn it over, remove the battery (page 2 - 14) and the component bay cover (page 2 - 12).
2. The 3G module will be visible at point on the mainboard (Figure 14a).
3. Carefully remove the screw
(Figure 14b).
4. Carefully slide the 3G module (in the direction of the arrow - Figure 14c) out of the interface adaptor and
then lift it up (do not exceed 10degrees) to remove it from the computer (Figure 14d).
5. Carefully remove the screw
(Figure 14e).
6. The min-card interface adaptor will pop-up, and you can remove it from the computer (Figure 14f).
1
2
3
4
5
6

3. 3G Module
6.Interface Adaptor
•2 Screws

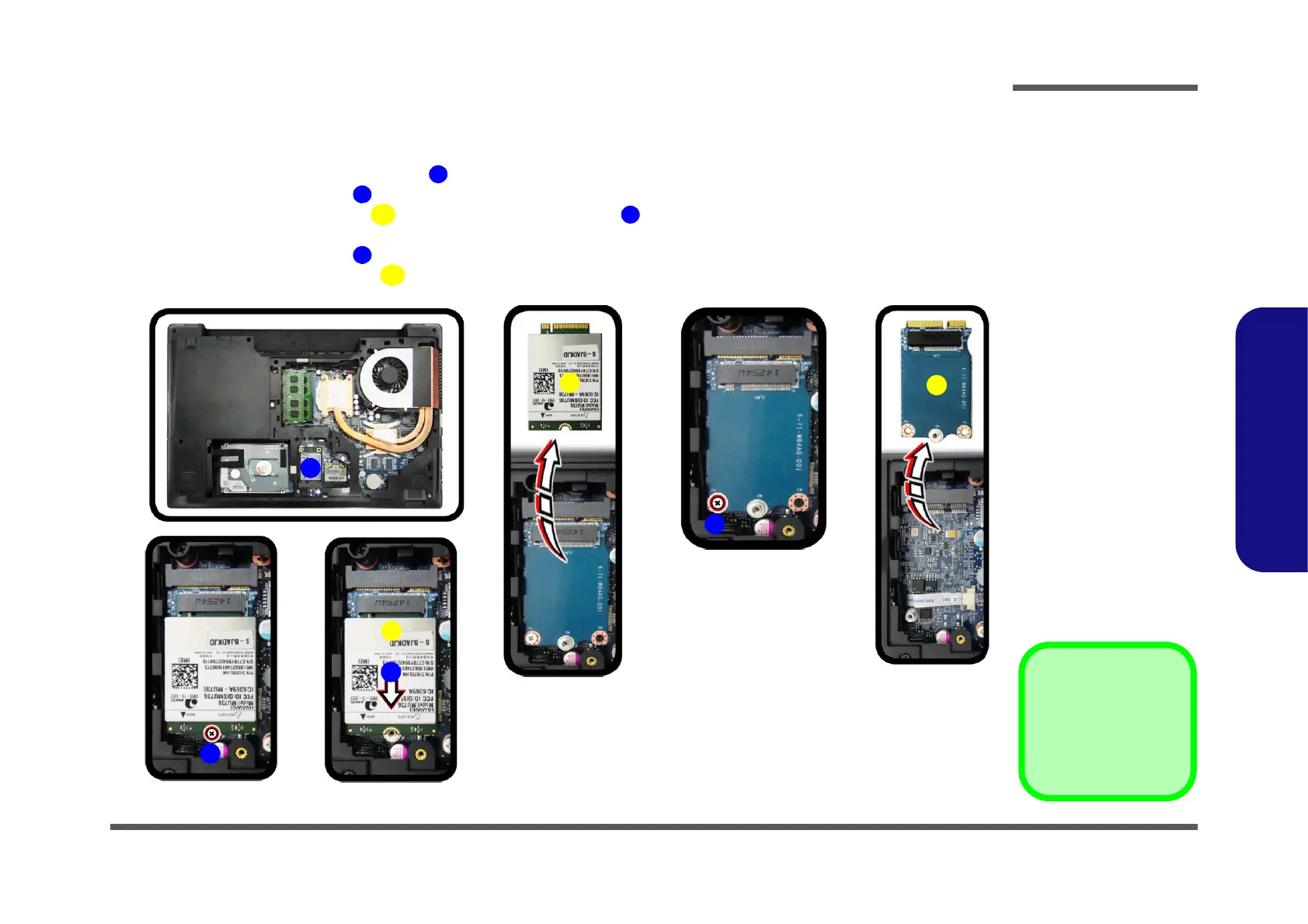

Figure 14
3G Module Removal
a. Locate the 3G module.
b. Remove the screw.
c. Slide the module in the
direction of the arrow
and lift it out.
d. Remove the 3G module.
e. Remove the screw.
f. Remove the interface
adaptor.
d.a.
2
3
f.
3
e.
4
b.
5
c.
6
1
