Clevo W650SB User Manual

Disassembly
Removing and Installing the MSATA Module 2 - 21
2.Disassembly
MSATA Installation Procedure

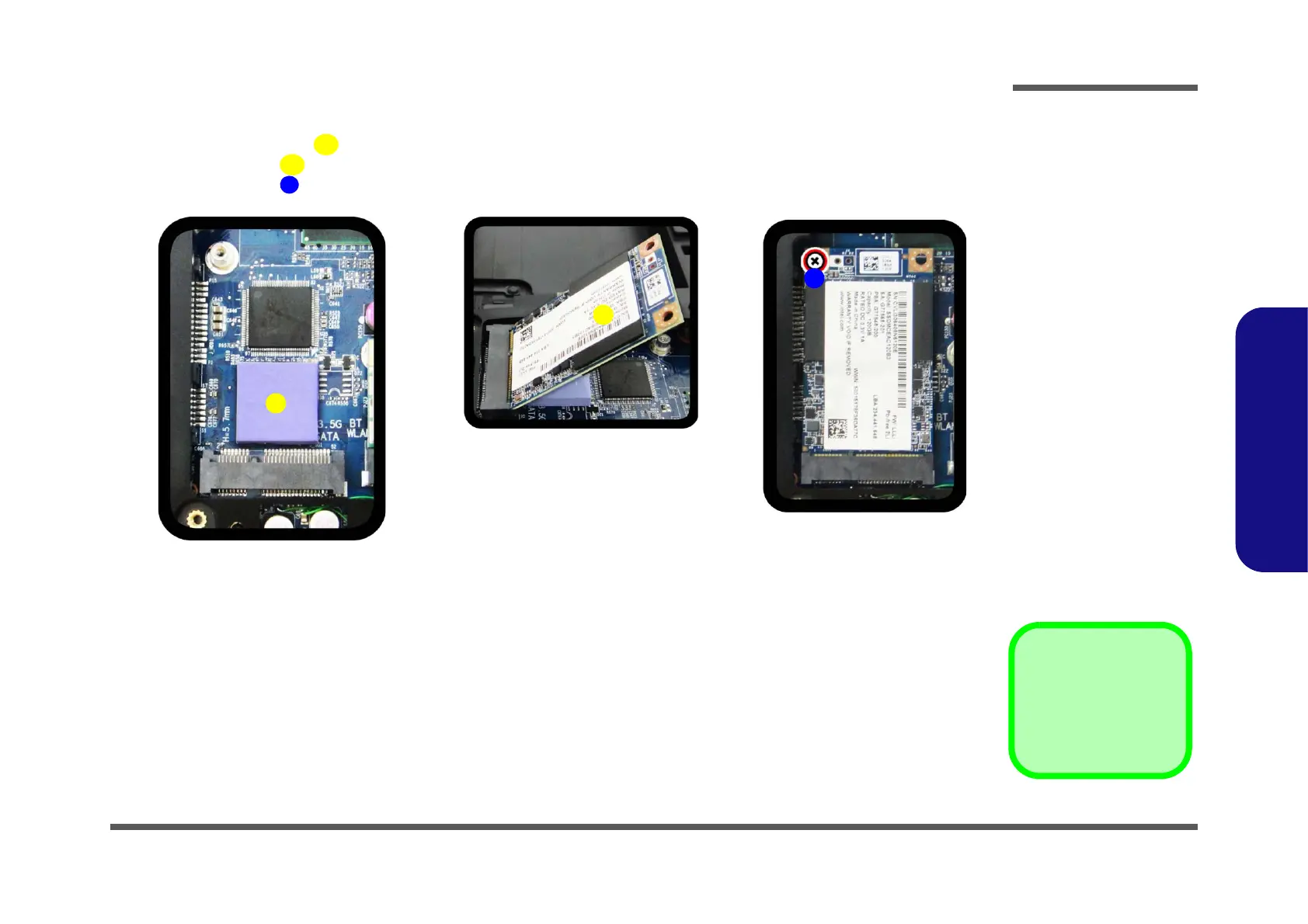

1. Place the thermal pad as shown (Figure 16a).
2. Insert the module in the computer
(Figure 16b).
3. Tighten the screw to secure it in place (Figure 16c).
1
Figure 16
MSATA Module
Installation
a. Place the thermal pad.
b. Insert the module.
c. Tighten the screw.
2
3
a.
3
2
b.
c.
1

1. Thermal Pad
2. MSATA Module
•1 Screw
