CLF Poseidon - PHOTOMETRICS

WWW.CLF-LIGHTING.COM
18
photometrics
0
1.03(3'5") 1.7(5'6") 2.04(6'8")0.34(1'1")
0.68(2'3")
1.36(4'6") 2.73(8'11")
20(65'7")10(32'10") 30(98'5") 40(131'3") 60(196'10") 80(262'6")50(164')
0
4
2
0
2
Lux fc( )
0
131000(12175)
61500(5716) 33200(3086) 22400(2082)
525000(48792)
15200(1413) 7500(697)
La mp T ot al O ut pu t: 24 00 0 lu me ns
St an da rd (1 .8°)
1.8°
4

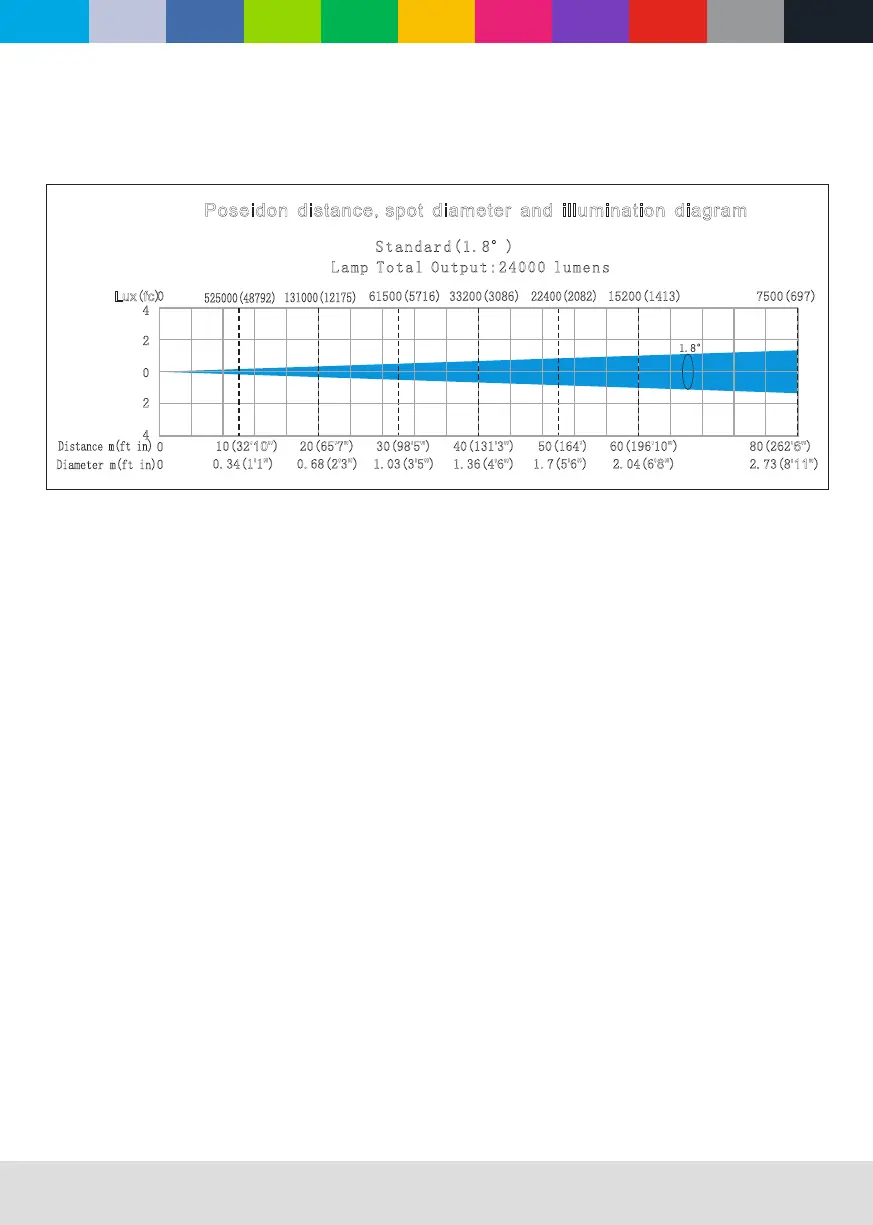

Poseidon distance, spot diameter and illumination diagram
Distance m(ft in)
Diameter m(ft in)
