Directed Electronics, Inc.
Door Lock Harness (H2)
Wire Connection Guide
___
___
___
For detailed instructions on wiring the vehicle’s door locks, please refer to the Door Lock Wiring
Guide (
DDooccuummeenntt NNoo.. 11004411
) provided on the
wwwwww.. ddiirreecctteecchhss..ccoomm
website or through
DDiirreeccttFFaaxx
11-880000-999999-11FFAAXX ((11332299))
.
Plug-In Harnesses

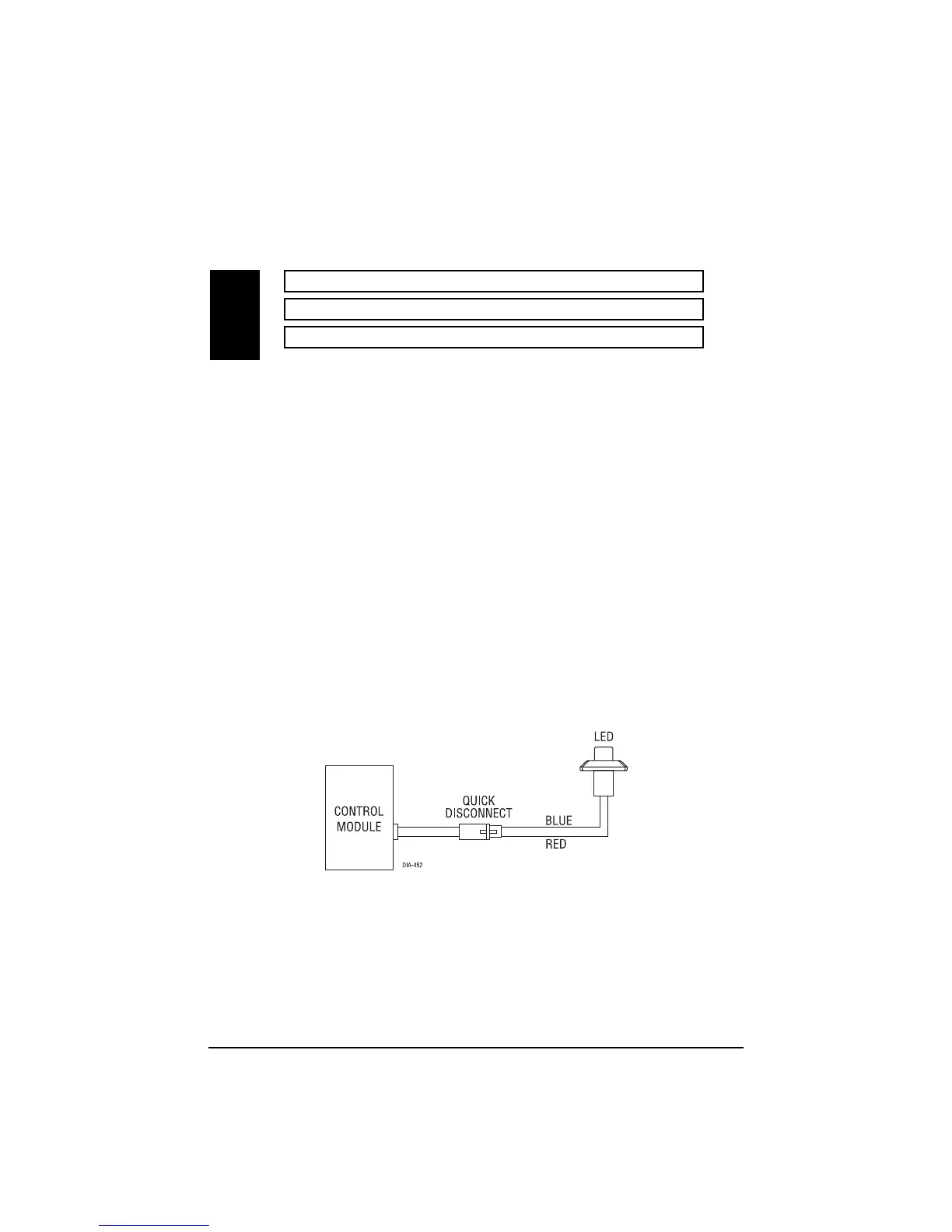

Super Bright LED, 2-Pin White Plug
The super bright LED operates at 2V DC. Make sure the LED wires are not shorted to ground as
the LED will be damaged. Multiple LEDs can be used, but they must be wired in series. The LED
can be top-mounted or flush-mounted. If top-loading the LED with a bezel, the LED fits into a
5
/
16
-inch mounting hole. If flush-mounting the LED from the back of a panel, drill a mounting hole
using a
17
/
64
-inch drill bit. Be sure to check for clearance prior to drilling the mounting hole.
Valet/Program Switch, 2-Pin Blue Plug
The Valet/Program switch should be accessible from the driver’s seat. It plugs into the blue port on
the side of the unit. Since the system features Valet by using the remote transmitter, the switch can
be well hidden. Consider how the switch will be used before choosing a mounting location. Check
Blue (-) Unlock, (+) Lock Output
Empty Unless Using 451M
Green (-) Lock, (+) Unlock Output
H2/A
H2/B
H2/C
To Next Page
