CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Tranquility
®
20 (TS) Series
Rev.: June 5, 2020
ClimateMaster Water-Source Heat Pumps
36

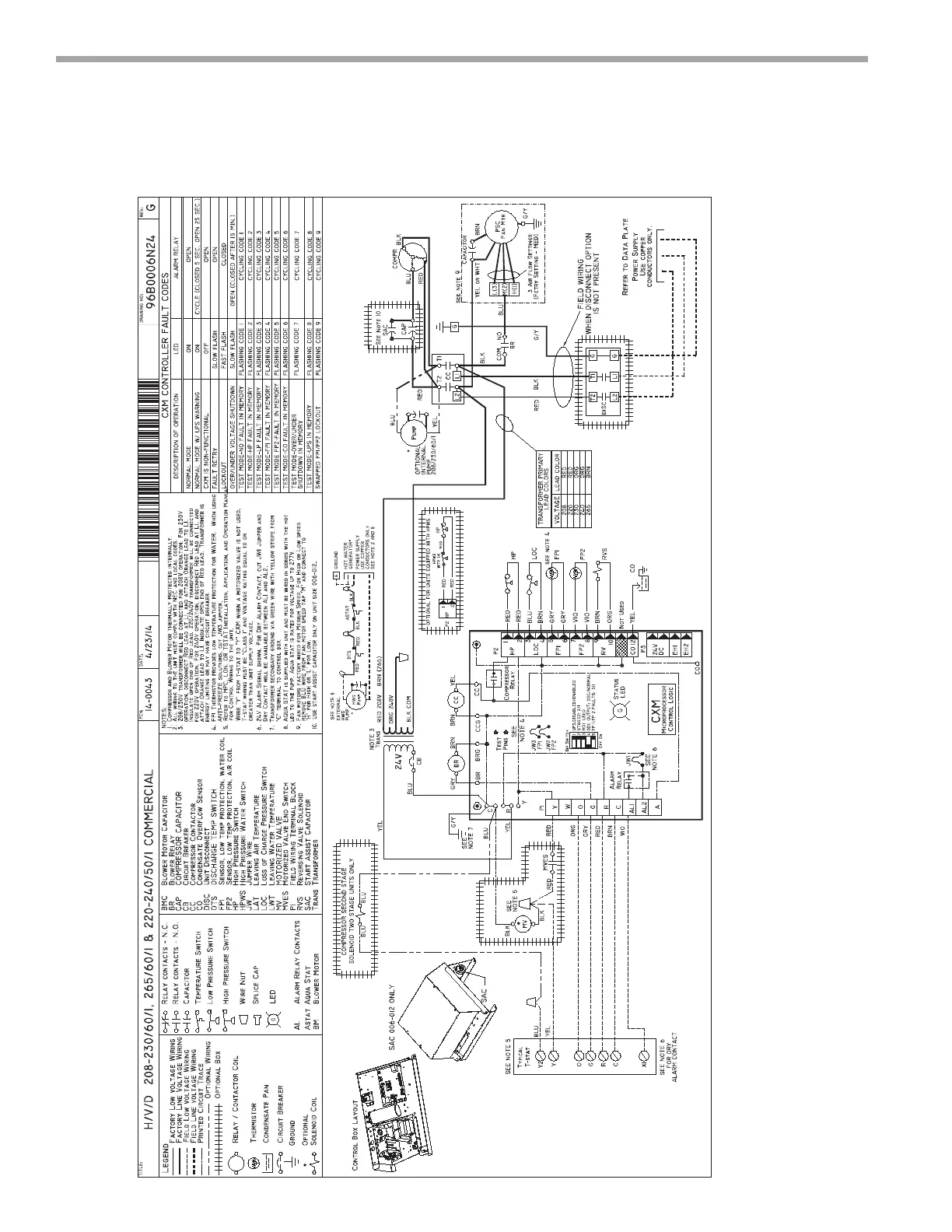

Typical Wiring Diagram – Units with CXM Board and PSC Fan Motor
(Single Phase)
