CLIMAVENETA HRAN 0121 - Page 10

HRAT E - HRAT/HRAN
10 English 09/02
mode
on
off
21
set
HSW3
QS1
C4
A3
FU2
A1
KA1
KA2
QM1
KM1
A2
TCI
C2-3
FUI
FU2
FU4

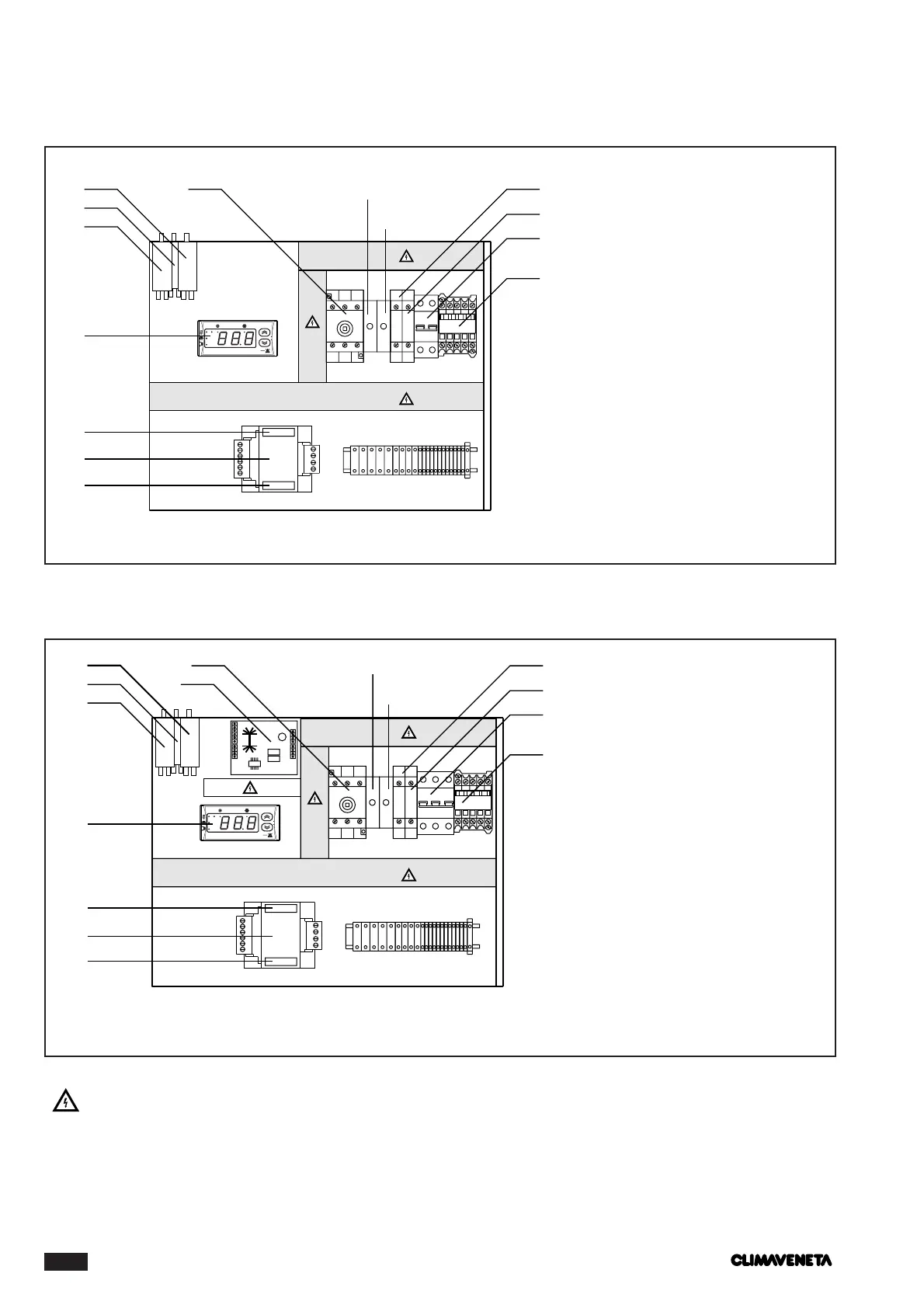

ELECTRICAL PANEL LAYOUT HRAT-HRAN 0071÷0151
Channels containing live wires, even when the door lock disconnecting switch (QS) is off.
MORSETTIERA UTENTE
FU1 Transformer protection fuse
TC1 Safety transformer
FU2 Auxiliary circuit fuse
A2 Electronic controller
A1 Radio interference suppresser
C1 Radio interference capacitor
C2-3 Fan start capacitor/capacitors
QS1 Door lock disconnector switch
FU3 Fan protection fuse
FU4 Water pump protection fuse
KA1 High pressure switch relay
KA2 Water pump control relay
QM1 Compressor thermal overload switch
KM1 Compressor contactor
ELECTRICAL PANEL LAYOUT HRAT-HRAN 0011÷0061
mode
on
off
21
set
HSW3
C2-3 QS1
C1
A1
KA1
KA2
QM1
KM1
A2
TCI
FUI
FU2
FU3
FU4
MORSETTIERA UTENTE
FU1 Transformer protection fuse
TC1 Safety transformer
FU2 Auxiliary circuit fuse
A2 Electronic controller
A1 Radio interference suppresser
C1 Compressor start capacitor
C2-3 Fan start capacitor/capacitors
QS1 Door lock disconnector switch
FU3 Fan protection fuse
FU4 Water pump protection fuse
KA1 High pressure switch relay
KA2 Water pump control relay
QM1 Compressor thermal overload switch
KM1 Compressor contactor
