HRAT E - HRAT/HRAN
9English 09/02

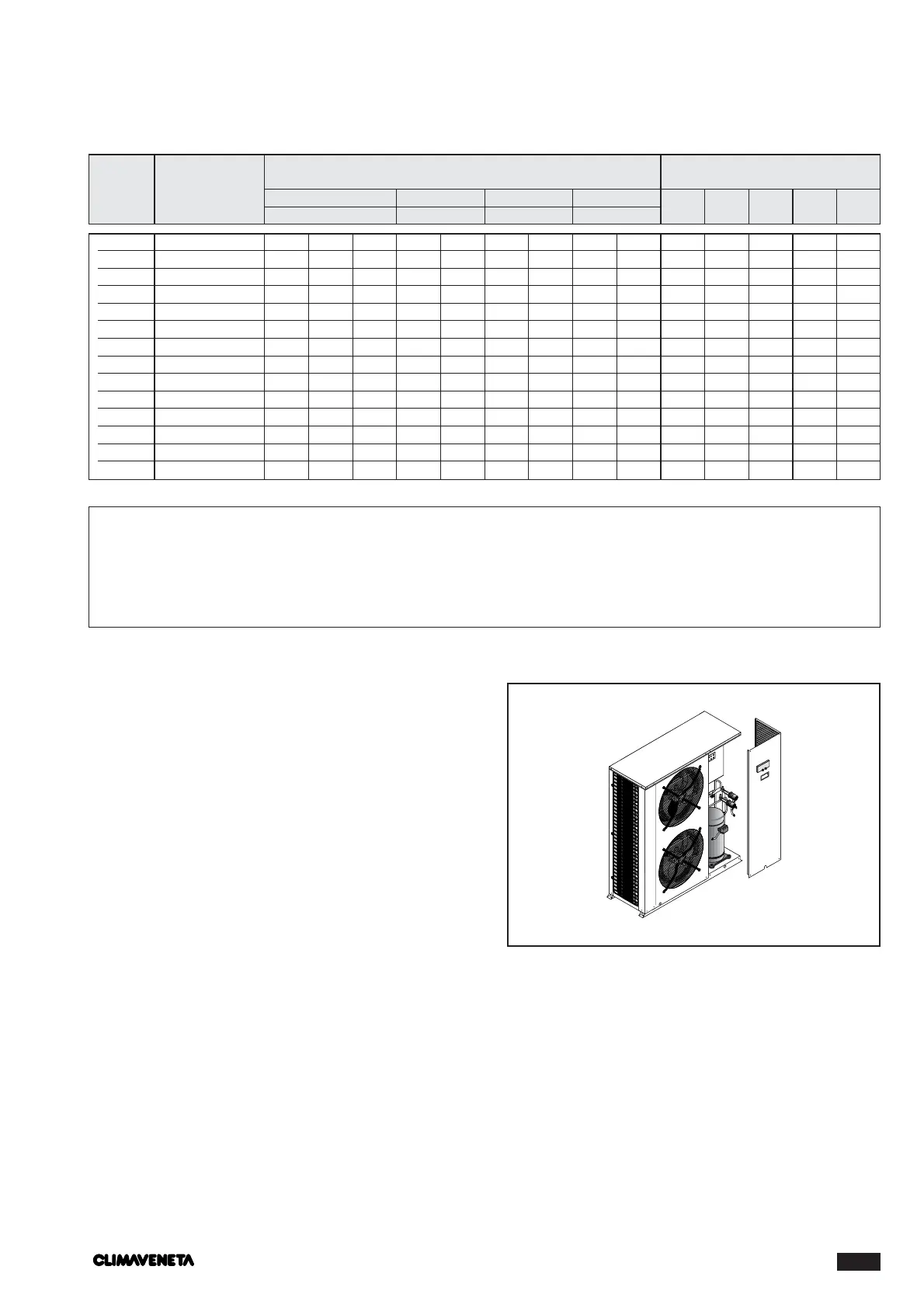

ELECTRICAL PANEL
The electrical panel is located inside the unit at the top of
the technical compartment where the various components
of the refrigerant circuit are also to be found.
To access the electrical panel, remove the front panel of
the unit by undoing the metric screws.
To access the components in the electrical panel and the
terminal boards, undo the two screws on the panel itself.
supply (V-Ph-Hz) F.L.I. F.L.A. L.R.A. F.L.I. F.L.A. F.L.I. F.L.A. F.L.I. F.L.A.
FU1 FU2 FU3 FU4 FU4*
(kW) (A) (A) (kW) (A) (kW) (A) (kW) (A)
Rated values (1) FUSES
Model Electrical power Compressors Fans Total Max. values (2) Glass 5x20mm 250V
0011 230~50 1,6 8 45,0 0,16 0,73 1,76 8,73 2,36 11,43 1A 1A 1A 1A 6,3A
0021 230~50 2,0 9,8 58,5 0,16 0,73 2,16 10,53 2,99 14,43 1A 1A 1A 1A 6,3A
0025 230~50 2,3 12,2 73,0 0,16 0,73 2,46 12,93 3,46 16,83 1A 1A 1A 1,6A 6,3A
0031 230~50 2,7 13,0 95,0 0,32 1,46 3,02 14,46 4,17 20,06 1A 1A 2A 1,6A 6,3A
0021 400-3N~50 1,97 3,72 31,0 0,16 0,73 2,13 4,45 2,66 5,53 1A 1A 1A 1A 6,3A
0025 400-3N~50 2,25 4,09 38,5 0,16 0,73 2,41 4,82 3,13 6,43 1A 1A 1A 1,6A 6,3A
0031 400-3N~50 2,6 4,6 43,5 0,32 1,46 2,92 6,06 3,76 8,08 1A 1A 2A 1,6A 6,3A
0041 400-3N~50 3,2 6,2 51,0 0,32 1,46 3,52 7,66 4,52 9,36 1A 1A 2A 1,6A 6,3A
0051 400-3N~50 4,2 7,1 59,5 0,32 1,46 4,52 8,56 5,52 11,46 1A 1A 2A 1,6A 6,3A
0061 400-3N~50 5,0 8,5 70,5 0,32 1,46 5,32 9,96 7,25 14,76 1A 1A 2A 1,6A 6,3A
0071 400-3N~50 6,0 11,2 94,0 0,67 3,3 6,67 14,5 8,28 17,9 1A 1A 10A 3,15A 6,3A
0091 400-3N~50 7,5 13,2 116,0 0,67 3,3 8,17 16,5 9,98 21,2 1A 1A 10A 3,15A 6,3A
0101 400-3N~50 8,1 15,1 127,0 1,34 6,6 9,44 21,7 11,34 25,8 1A 1A 10A 3,15A 6,3A
0121 400-3N~50 10,5 18,9 159,0 1,34 6,6 11,84 25,5 13,34 29,6 1A 1A 10A 3,15A 6,3A
F.L.I. Power input
F.L.A. Current input
L.R.A. Compressor start-up current
(1) External air temperature 35°C - Water temperature at evaporator 12/7°C.
(2) Values refer to the lower rated voltage (50 Hz).
These values should be used to size the protection switches and power cables.
FU1* Fuse to replace FU1 if a storage tank pump + pump on unit are connected (supplied inside the electrical panel).
HRAT-HRAN ELECTRICAL DATA
