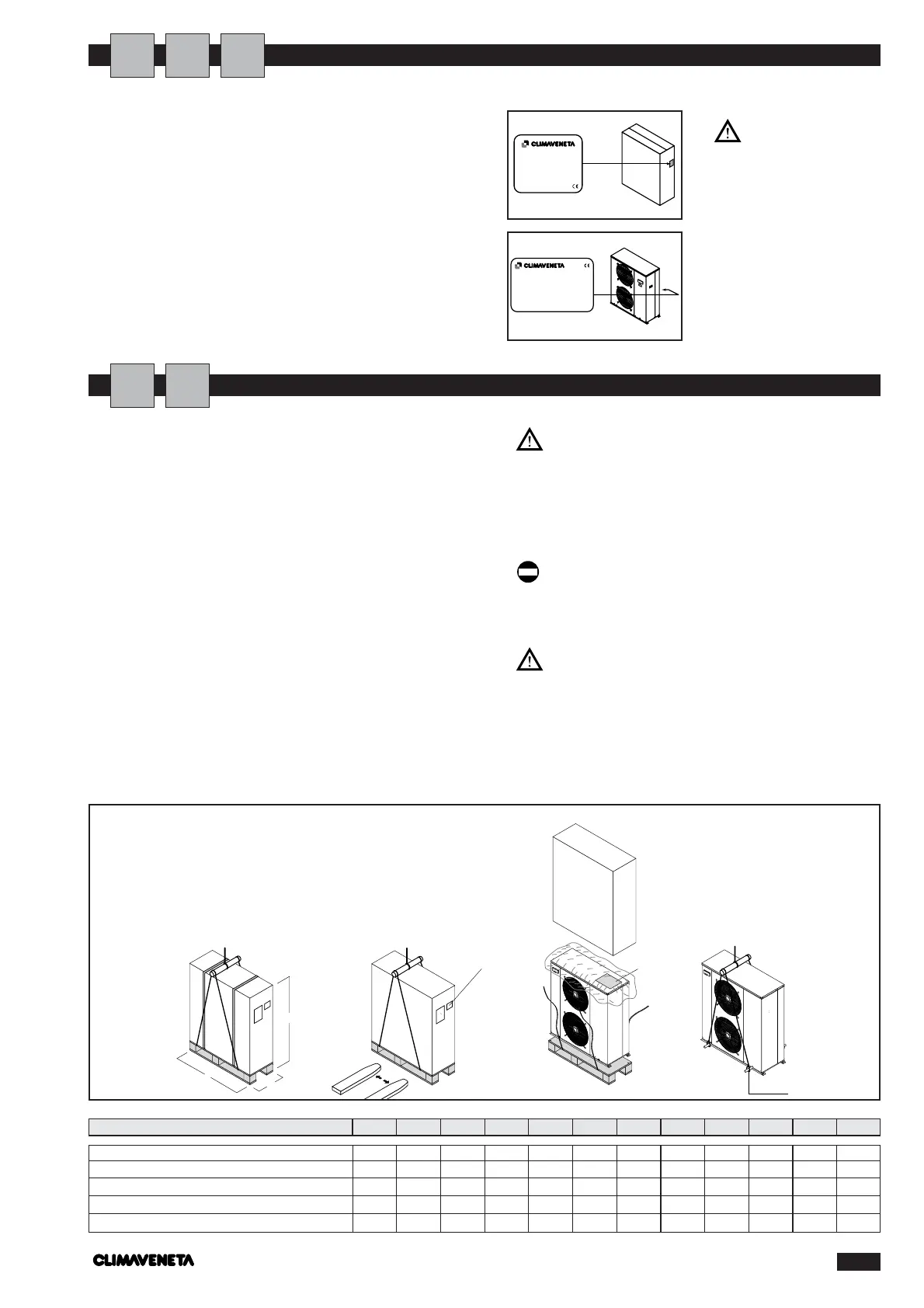

The chiller can be identified by the:
Packaging label
Giving the data identifying the product.
Rating plate
Giving the technical and performance data of the unit.
If this is lost, ask the After Sales Service for a replacement.
Tampering with or
the removal or
absence of rating plates or
other means enabling the
unit to be identified causes
problems during installa-
tion and maintenance.
IDENTIFICATION
MODEL:
VOLTAGE:
CODE:
De' Longhi S.p.a. - 31100 Treviso / Italia
Via L.Seitz, 47 - tel. 04224131 fax 0422413659
COOLING CAPACITY ------------------- kW
HEATING CAPACITY ------------------- kW
TYPE OF REFRIGERANT -------------------
REFRIGERANT CONTEN ------------------- Kg
MAXIMUM PRESSURE ------------------- bar
MAIN ELECTRICAL POWER SUPPLY ------------------- V---Hz
AUXILIARY ELECTRICAL POWER SUPPLY ------------------- V---Hz
MAX. POWER INPUT ------------------- kW
MAX. CURRENT INPUT ------------------- A
START-UP CURRENT ------------------- A
ELECTRICAL WIRING DIAGRAM ------------------- N°
OPERATING WEIGHT ------------------- Kg
YEAR OF FABRICATION -------------------
RECEIVING AND HANDLING THE PRODUCT
The chillers are supplied accompanied by:
- instruction manual;
- guarantee certificate;
-CE declaration.
These are contained in a plastic bag (A) attached to the
top of the chiller.
The unit should always be handled by qualified personnel
using equipment adequate for the weight of the chiller. If a
forklift truck is used, insert the forks under the bed plate,
spacing the forks as wide apart as possible. If a crane is
used, pass the cables through the bottom of the bed plate,
making sure they do not exert pressure on the unit. Once
the packaging has been removed, the unit can be lifted and
moved by inserting two metal tubes (max. diameter: 1”)
into the holes in the bed plate provided for this purpose
and using suitable handling equipment.
The instruction manual is an integral part of the
unit and should therefore be read and kept carefully.
It is recommended that the packaging should not
be removed until the unit is located in the installa-
tion site.
Do not dispose of packaging materials in the
environment or leave them within reach of children
as they may represent a hazard or source of pollution.
The weight of the chiller is biased towards the
compressor side (side of the packaging with the bar
code, see figure at the foot of the page).
During transport, the chiller should be kept in a
vertical position.
Foro Ø35
H
P
L
CODICE
A BARRE
A
Dimension L 1100 1100 1100 1100 1240 1240 1240 1600 1600 1600 1600 1600
Dimension P 430 430 430 430 470 470 470 610 610 610 610 610
Dimension H 1030 1030 1280 1280 1280 1280 1280 1360 1360 1850 1850 1850
Gross weight HRAT - HRAT E 102 107 120 125 143 147 157 260 263 325 330 340
Gross weight HRAN 110 116 129 135 152 158 164 272 275 341 345 -
Model 0011 0021 0025 0031 0041 0051 0061 0071 0091 0101 0121 0151
U
A
I
I
A
BAR CODE
Foro Ø35
