5.6 - CONNECTIONS TO THE BOARD

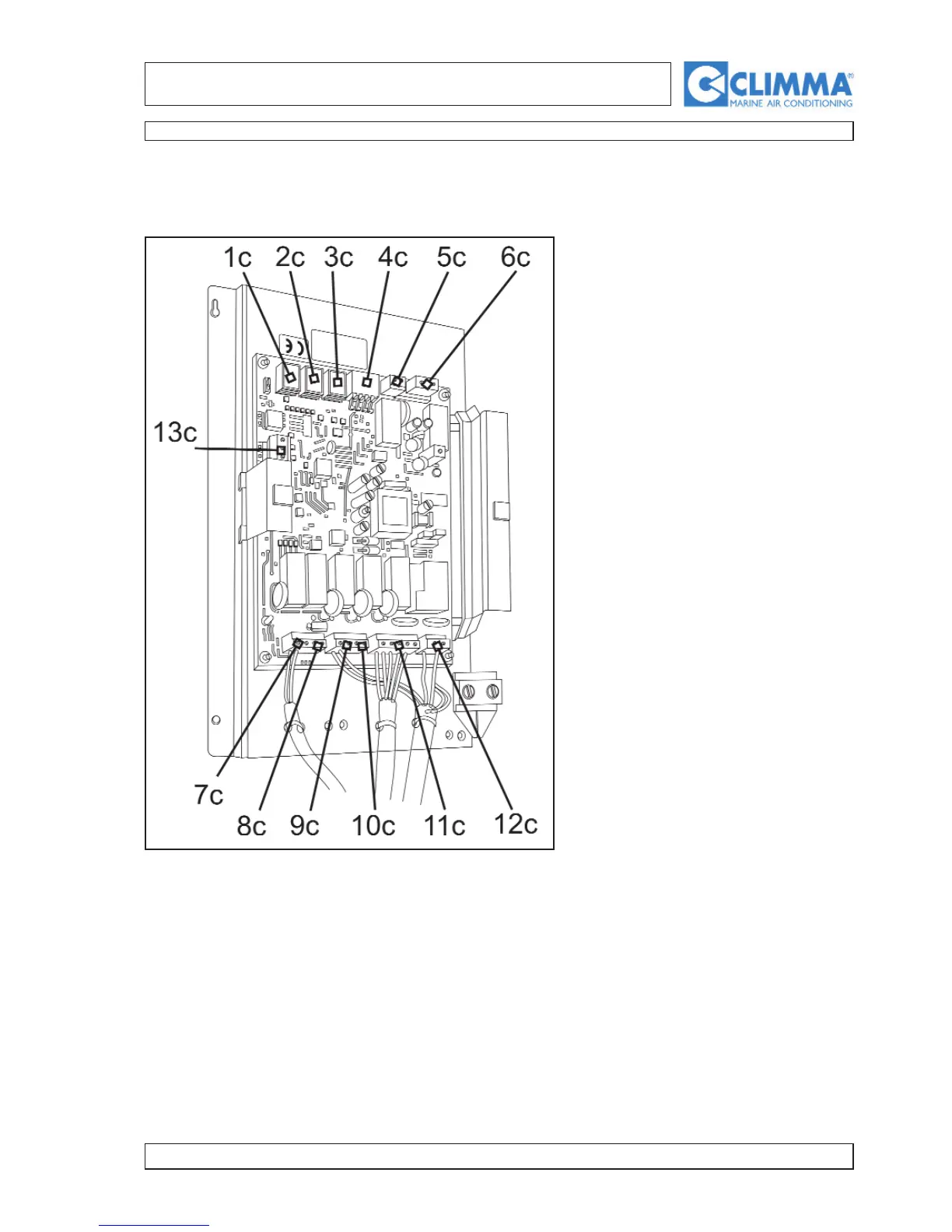

5.6.1 - CONNECTIONS
1c
2c
3c
4c
5c
6c
7c
8c
9c
10c
11c
12c
13c
ROOM PROBE
-OPTIONAL-
BRIDGE
MECHANICAL PANEL
PUMP
HP PRESSURE
SWITCH
SENSOR NTC
-OPTIONAL-
REV. VALVE OR 1ST.
HEATER
2ND. HEATER
FAN
COMPRESSOR
CONNECTION FOR
RS485
MAIN SUPPLY
DIGITAL PANEL
