CONDIZIONATORI
Modelli COMPACT e SPLIT - QUATTRO
pag. 25
www.climma.it
5 ELECTRICAL CIRCUIT
5 - FUNCTIONS OF THE BOARD
5.5 - SELECTOR FOR MULTIPLE INSTALLATIONS
It is possible to connect two or more systems to the
same control panel. In this case it is necessary to act
on the selector (5) as indicated in the following out-
line.
ATTENTION
INCORRECT SETTING PREVENTS COMPACT
AND SPLIT UNITS TO WORK BECAUSE OF A
PROTECTION (SEE “TROUBLESHOOTING”).
Set MASTER (MA)
when remote panel is connetted to
the powerboard (default).
Set SLAVE (SL)
when powerboard is in multiboard
configuration but remote panel is
not connected.

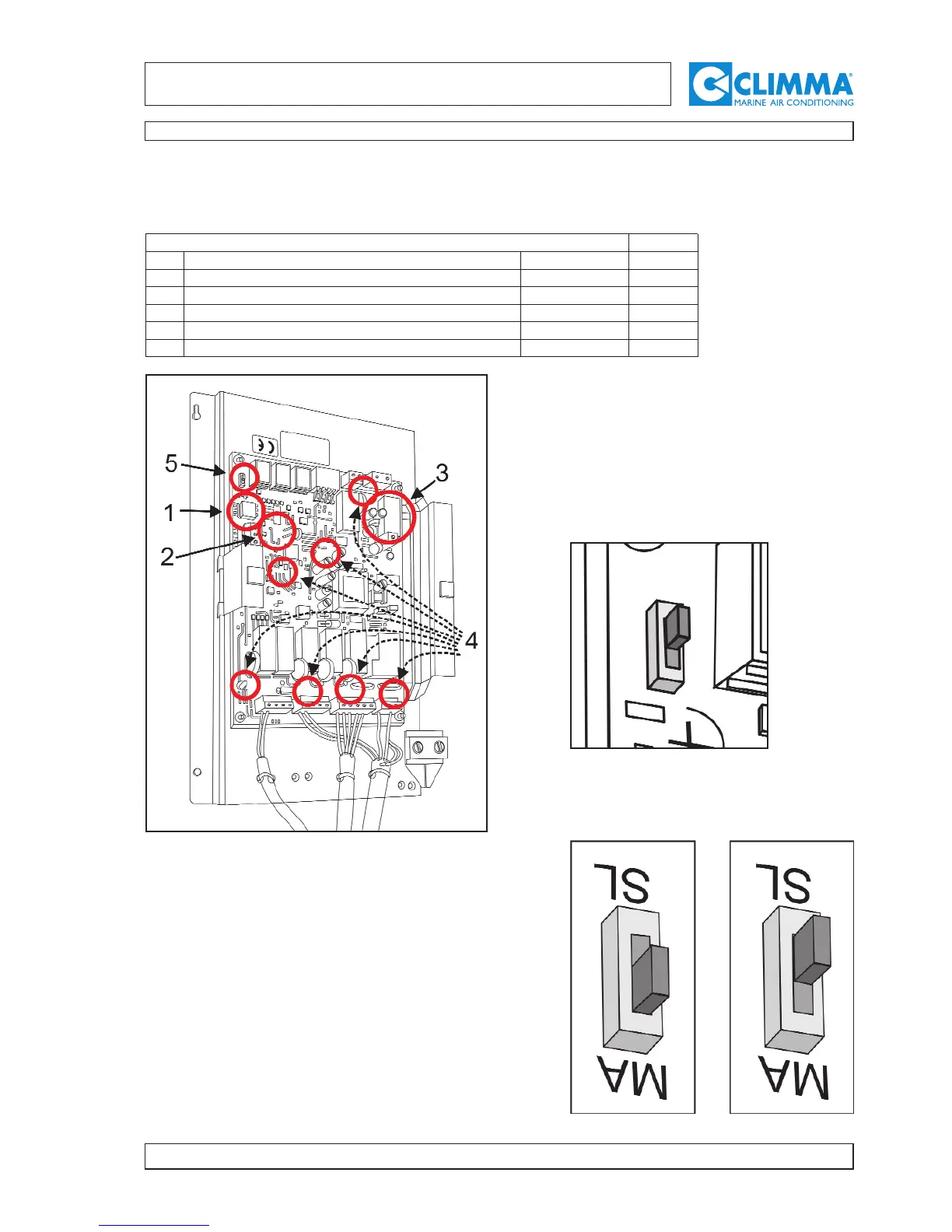

The figure shows the selector
(detail 5 of the figure 1).
Figure 1
FUNCTIONS OF THE BOARD / CAPTION
Paragraph Page
1 ADJUSTABLE DELAY 5.1 21
2 BOARD SETTING 5.2 22
3 POWER FUSE 5.3 23
4 FUNCTIONING WARNING LIGHTS 5.4 24
5 SELECTOR FOR MULTIPLE INSTALLATION 5.5 25
